TMO-3525302 (314-610E088) - Montgomery Ward Snow Thrower (1994) Engagement Handle Assembly Parts Diagram

Snow Thrower

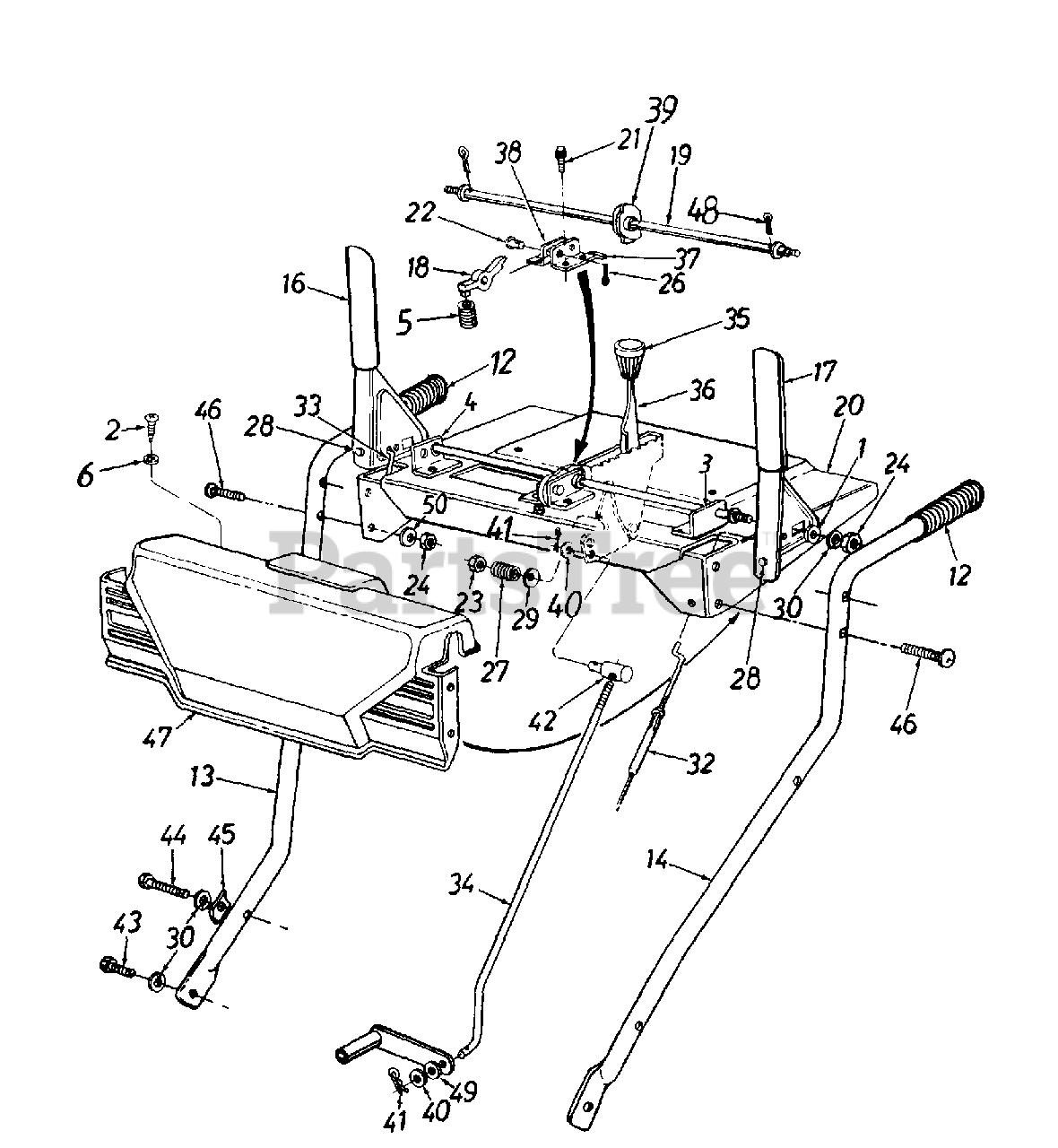

Engagement Handle Assembly Parts Diagram

  • Title

?1

MTD 736-0509

Wash. (Special) .72" O.D.

$6.99

$

In Stock, only 1 left!

0

2

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5

$4.49

$

Usually ships in 3-6 days

0

3

MTD 784-5681

Handle Support Brkt.- L.H.

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

4

MTD 784-5682

Handle Support Brkt.- R.H.
(Superseded to 784-5682-0637)

Variations

MTD 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

5

MTD 732-0145

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

6

MTD 736-3067

Fl-Wash .188" I.D. x .43" O.D.

$3.49

$

Usually ships in 3-6 days

0

12

MTD 720-0274

Grip

$11.99

$

In Stock, Qty 8

0

13

MTD 749-0910

Handle - R.H.
(Superseded to 749-0910C-0637)

$

$

Not available

14

MTD 749-0911

Handle - L.H.

$

$

Not available

16

MTD 684-0036

Engagement Handle - R.H.
(Superseded to 684-0036A)

$44.99

$

Usually ships in 3-6 days

0

17

MTD 684-0037

Engagement Handle - L.H.
(Superseded to 684-0037B)

$38.99

$

In Stock, only 2 left!

0

18

MTD 748-0363

Pawl Handle Lock
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

19

MTD 747-0877

Rod Cam

$22.99

$

Usually ships in 3-6 days

0

20

MTD 684-0033A

Handle Panel Support

Variations

MTD 684-0033A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0033A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0033A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 684-0033A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0033A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 684-0033A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0033A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

21

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

22

MTD 711-0946

Clevis Pin .437" Dia. x .65" Lg.

$

$

Not available

23

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

MTD 714-0111

Cotter Pin 3/32" Dia. x 1" Lg.

$4.99

$

In Stock, Qty 13

0

27

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

28

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 1 left!

0

29

MTD 736-0105

Bell-Wash .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0119

L-Wash 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

MTD 746-0897

Auger Clutch Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

33

MTD 746-0898

Drive Clutch Cable
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 19

0

34

MTD 747-0798

Shift Rod
(Superseded to 747-0798A)

$38.99

$

Usually ships in 3-6 days

0

35

MTD 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

36

MTD 784-0297

Shift Handle

$

$

Not available

37

MTD 784-5679

Handle Brkt - L.H.
(Superseded to 784-5679-0637)

Variations

MTD 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

38

MTD 784-5680

Handle Support Brkt.- R H.
(Superseded to 784-5680-0637)

Variations

MTD 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

39

MTD 784-0362

Cam Handle Lock

$

$

Not available

40

MTD 736-0264

Fl-Wash .344" I.D. x 62" O.D.

$6.99

$

In Stock, only 2 left!

0

41

MTD 714-0104

Internal Cotter Pin 5/16" Dia

$4.49

$

In Stock, Qty 20+

0

42

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

43

MTD 710-0538

Hex Bolt 5/16-18 x .62" Lg.

Note: (Special)

$4.49

$

In Stock, Qty 7

0

44

MTD 710-3180

Hex Bolt 5/16-18 x 1.75" Lg. (Gr. 5)

$5.49

$

In Stock, Qty 20+

0

45

MTD 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 18

0

46

MTD 710-1250

Curved Carr Bolt 5/16-18 x 1.5"

$4.99

$

In Stock, only 3 left!

0

47

MTD 731-1315A

Handle Panel
(Superseded to 731-1391)

$43.99

$

Usually ships in 3-6 days

0

48

MTD 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

49

MTD 736-0271

Spr. Wash .32" I D. x 62" O.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

50

MTD 736-0242

Bell-Wash .325" I D. x .88" O.D.

$4.49

$

In Stock, Qty 20+
