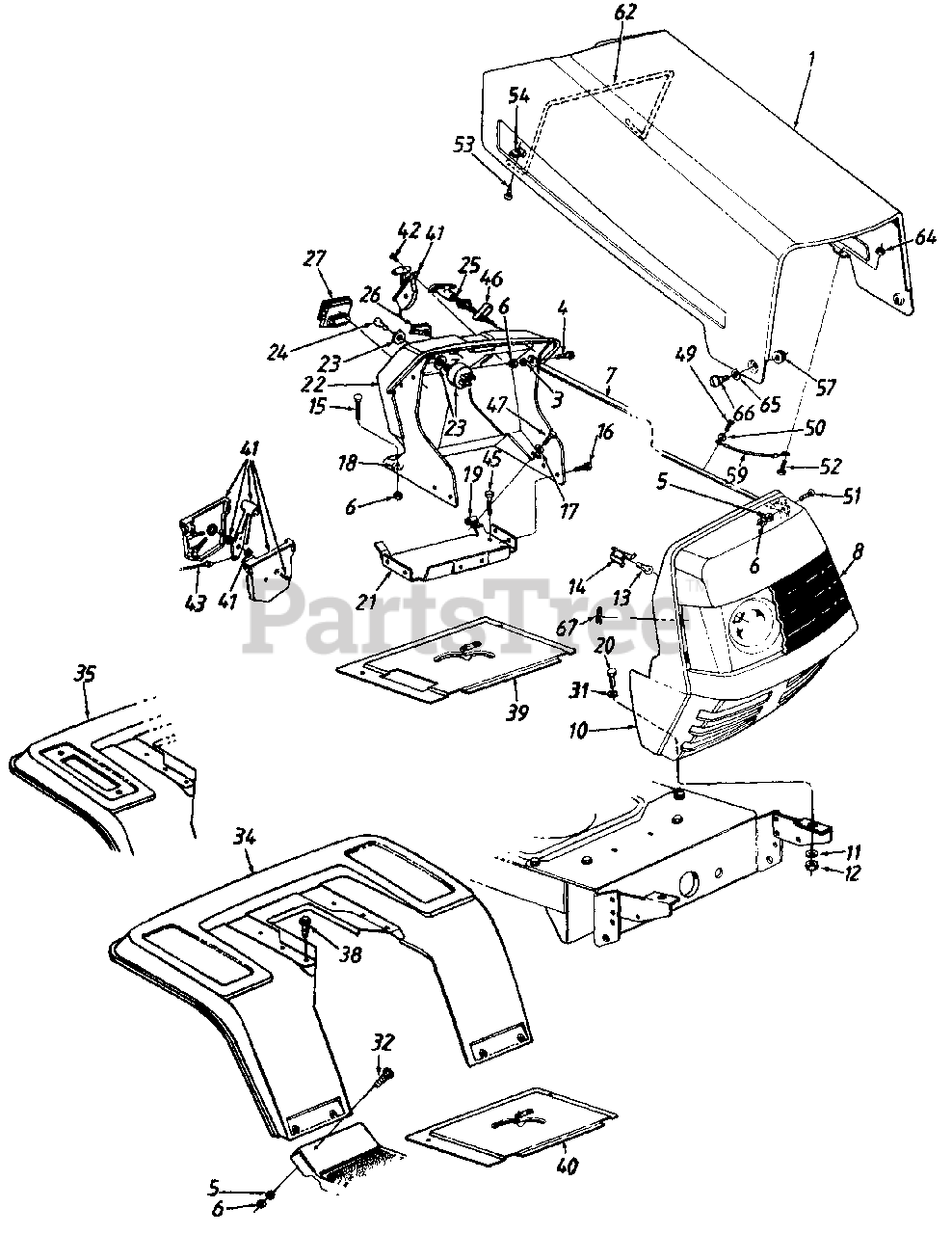

TMO-3397103 (134L661F088) - Montgomery Ward Lawn Tractor (1994) Hood Style 1 Parts Diagram

Lawn Tractor

Hood Style 1 Parts Diagram

  • Title

1

MTD 17941

Hood

Variations

MTD 17941-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17941-0629

No Longer Available HOOD - SILVER FLAKE (0629)

$

$

Not available

MTD 17941-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17941-0648

No Longer Available HOOD - TECH GRAY (0648)

$

$

Not available

MTD 17941-0650

No Longer Available HOOD - RED METALLIC (0650)

$

$

Not available

MTD 17941-0662

No Longer Available HOOD - OYSTER GRAY (0662)

$

$

Not available

MTD 17941-0665

No Longer Available HOOD - YARDMAN GREEN (0665)

$

$

Not available

MTD 17941-0667

No Longer Available HOOD - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17941-0686

No Longer Available HOOD - SIMPLICITY ORANGE (0686)

$

$

Not available

$

$

?2

MTD 738-0724

Shld. Bolt .375" Dia. x .125" Lg.
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

3

MTD 736-0342

Fl-Wash .28" I.D. x .75" O.D.

$7.49

$

Usually ships in 3-6 days

0

4

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

6

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

7

MTD 749-0722B

Grille Support Rod

Variations

MTD 749-0722B-0637

Grille Support - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 731-1099A

Headlight Lens
(Superseded to 931-1099A)

$92.99

$

In Stock, only 1 left!

0

?9

MTD 712-0380

Flange L-Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

10

MTD 17931A

Grille
(Superseded to 17940B)

Variations

MTD 17931A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17931A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17931A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17931A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 17931A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 17931A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17931A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17931A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17931A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17931A-0691

GRILLE-STYLE 1 - BLACK JACK (0691)

$

$

Not available

$

$

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

14

MTD 725-1651

Socket
(Superseded to 925-1651)

$

$

Not available

15

MTD 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

16

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0173

Fl-Wash .281" I.D. x .73" O.D.

$4.49

$

In Stock, only 3 left!

0

18

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, only 3 left!

0

19

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 17632A

Gas Tank Support Brkt.

Variations

MTD 17632A-0637

Gas Tank Support Brkt. - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 731-1096B

Dash
(Superseded to 753-04861)

$

$

Not available

23

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

24

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

25

MTD 746-0616A

Choke Control 23" Lg.
(Superseded to 946-0616A)

Note: Used w/Single Cylinder Engine Only

$26.99

$

In Stock, Qty 5

0

MTD 746-0614A

Choke Control 38" Lg.

Note: Used w/Twin Cylinder Engine Only

$24.99

$

In Stock, only 1 left!

0

MTD 746-0720

Choke Control (Tec.)

$

$

Not available

MTD 746-3021

Choke Control (Vanguard)

$26.99

$

Usually ships in 3-6 days

0

26

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

27

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

31

MTD 736-3078

Fl-Wash .344" I.D. x 1" O.D.

$4.49

$

In Stock, only 3 left!

0

32

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

34

MTD 17870

Fender
(Superseded to 17870C)

Variations

MTD 17870-0483

FENDER-RR W/FRAME - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17870-0498

FENDER-RR W/FRAME - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17870-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17870-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 17870-0638

FENDER-RR W/FRAME - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17870-0640

No Longer Available FENDER - CO-OP GREEN (0640)

$

$

Not available

MTD 17870-0648

No Longer Available FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17870-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17870-0663

No Longer Available FENDER - CAYMEN GREEN (0663)

$

$

Not available

MTD 17870-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17870-0667

FENDER-RR W/FRAME - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17870-0668

No Longer Available FENDER - MOSS GREEN (0668)

$

$

Not available

MTD 17870-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17870-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 17870-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17870-0692

No Longer Available FENDER - AGWAY BLUE (0692)

$

$

Not available

$

$

35

MTD 17871A

Fender w/Cutout

Variations

MTD 17871A-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17871A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17871A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17871A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 17871A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17871A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 17871A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 17871A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17871A-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 17871A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17871A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17871A-0687

No Longer Available FENDER-RR - PINE GREEN (0687)

$

$

Not available

MTD 17871A-0691

No Longer Available FENDER-REA - BLACK JACK (0691)

$

$

Not available

MTD 17871A-0692

No Longer Available FENDER-R - AGWAY BLUE (0692)

$

$

Not available

$

$

38

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

39

MTD 17954A

Shift Cover w/Cutout
(Superseded to 17954B-0637)

Variations

MTD 17954A-0637

COVER-SHIFT - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 17286A

Shift Cover
(Superseded to 17286B-0637)

Variations

MTD 17286A-0637

Shift Cover - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

41

MTD 831-0823A

Throttle Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

42

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

43

MTD 746-0501

Throttle Control Wire 18.5" Lg.

Note: Used w/Single Cylinder Engine Only

$17.99

$

In Stock, only 1 left!

0

MTD 746-0634

Throttle Control Wire
(Superseded to 946-0634)

Note: Used w/Twin Cylinder Engine Only

$11.99

$

Usually ships in 3-6 days

0

MTD 746-0638

Throttle Control Wire (12 H.P. Tec.)
(Superseded to 946-0638)

$10.99

$

In Stock, Qty 7

0

45

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

46

MTD 17782

Choke Retainer

$

$

Not available

47

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

49

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

50

MTD 736-0400

Fl-Wash .218" I.D. x .62"

$5.49

$

In Stock, Qty 12

0

51

MTD 710-0924

Pan Hd. Mach. Scr. 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

52

MTD 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

53

MTD 710-3009

Pan Hd. Scr. #10-24 x .75"

$7.49

$

Usually ships in 3-6 days

0

54

MTD 726-0130

Speed Nut
(Superseded to 926-0130)

$

$

Not available

57

MTD 712-0380

Lock Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

59

MTD 723-0302

Hood Stop

$12.99

$

Usually ships in 3-6 days

0

62

MTD 732-0714

Hood Spring

$

$

Not available

64

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

65

MTD 736-0413

Spr. Wash .39" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

66

MTD 738-0724

Shld. Bolt
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

67

MTD 714-0104

Hairpin Clip 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

Muffler (Single Cylinder Engines)

$

$

Not available

MTD 751-0302

Muffler
(Superseded to 951-0302)

Note: Used on 11.5, 12 & 12.5 HP (B & S)

$

$

Not available

MTD 712-0250

Conduit L-Nut

$

$

Not available

MTD 751-0443A

Muffler
(Superseded to 951-0443A)

Note: Used on 12 & 12.5 HP (Tec.)

$

$

Not available

MTD 721-0208

Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

MTD 738-0636

Shoulder Bolts
(Superseded to 938-0636)

$

$

Not available
