TMO-3396003 (133L661G088) - Montgomery Ward Lawn Tractor (1993) Engine, External Parts Diagram

Lawn Tractor

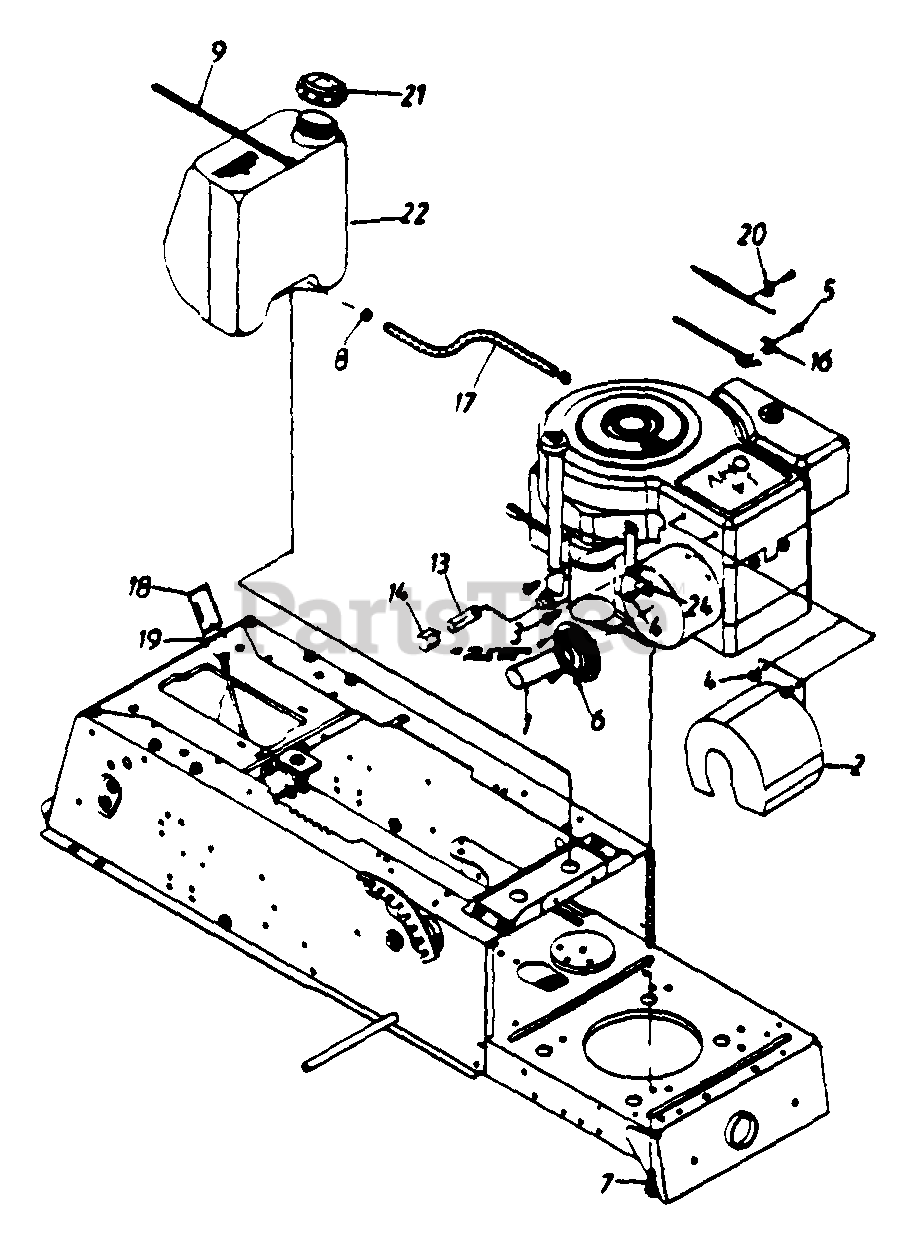

Engine, External Parts Diagram

  • Title

1

MTD 651-0002

Exhaust Pipe Ass'y.

$

$

Not available

2

MTD 683-0043

Heat Shield Ass'y.

$

$

Not available

3

MTD 710-0323

Pan Hd. Mach. Scr. 5/16-18 x 75"

$4.99

$

In Stock, only 2 left!

0

4

MTD 710-0599

Hex Wash. Hd. Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1237

Hex Slot Wash. Hd. #10-32 x 5/8" Lg.

$4.49

$

Usually ships in 3-6 days

0

6

MTD 710-0148

Hex Wash. Hd. F-Tap Scr. #8-32 x .38"

$4.49

$

In Stock, Qty 16

0

7

MTD 710-0502A

Hex L-Wash. TT-Tap Scr. 3/8-16 x 1.25"

$6.99

$

In Stock, only 2 left!

0

8

MTD 726-0205

Hose Clamp -.49" Dia.

$3.99

$

In Stock, Qty 18

0

9

MTD 726-0209

Cable Tie-30.66" Lg.
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

?10

MTD 726-0197

Cable Tie-I.D.

$3.99

$

In Stock, only 1 left!

0

?11

MTD 736-0247

Flat Wash. 3/8" I.D. x 1.25" O.D.

$9.49

$

In Stock, Qty 14

0

13

MTD 737-0199

Pipe Nipple 3/8-18 NPT x 2" Lg.
(Superseded to 937-0199)

$

$

Not available

14

MTD 737-0143

Cap - Oil Drain

$

$

Not available

?15

MTD 750-0777

Shld. Spacer .38" I.D. x 1.25" O.D

$

$

Not available

16

MTD 751-0360A

Casing Clamp
(Superseded to 751B221535)

$10.99

$

In Stock, Qty 10

0

17

MTD 751-0535-15

Fuel Line Hose
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

18

UNKNOWN

$

$

Not available

19

UNKNOWN

$

$

Not available

20

MTD 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 10

0

21

MTD 751-3071

Fuel Cap w/o Gasket
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

22

MTD 751-0555

Gas Tank - 1-1/2 Gallon
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

?23

Engine-B&S 287707-153-01

Note: 14 H.P.

$

$

Not available

24

MTD 783-0106

Bracket Heat Shield

$

$

Currently unavailable
