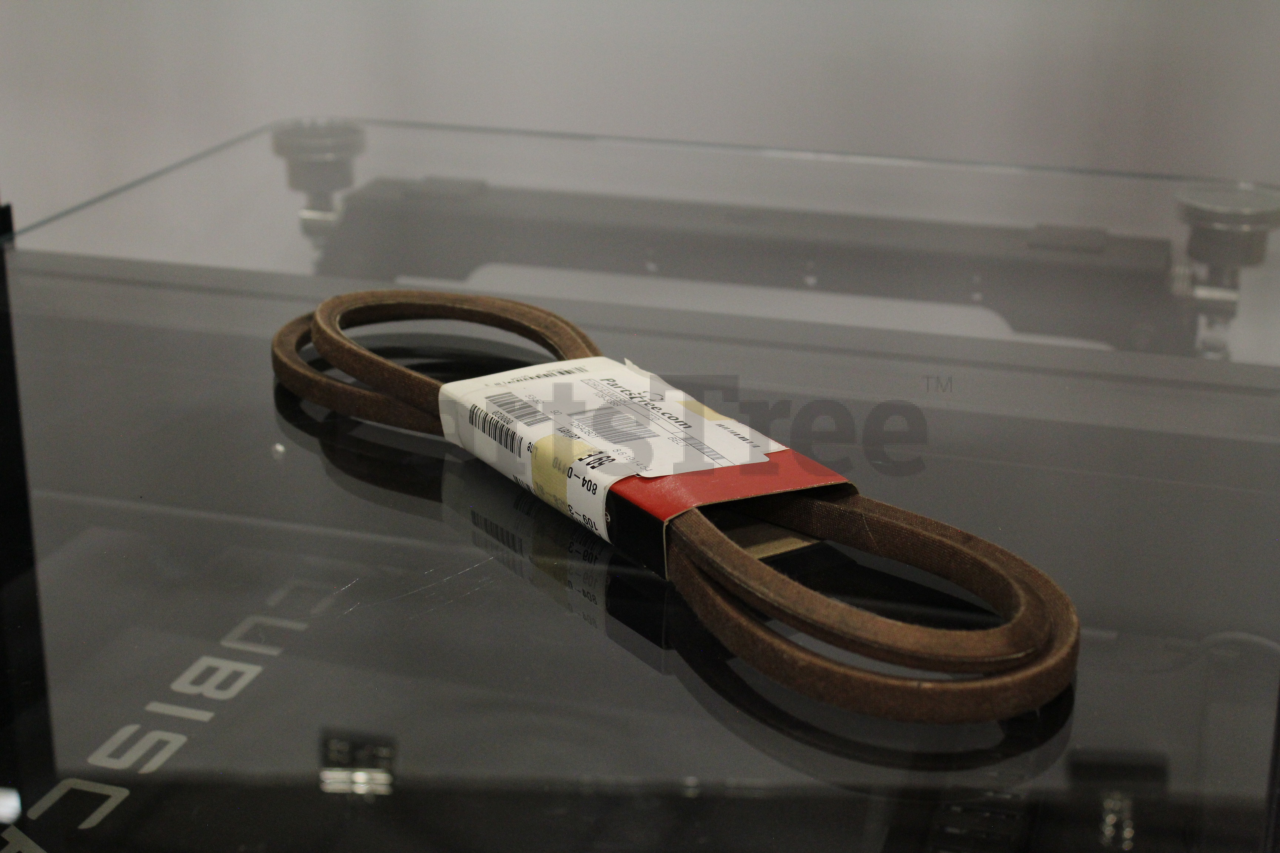

Toro Commercial 109-8069  Pump Drive Belt with Sleeve

The purpose of the Belt is to transfer power from the engine to different systems within your equipment, like the cutting deck. The belt length and shape varies based on the system, but most are V-shaped or Cogged. The most common signs that a belt needs to be replaced are the appearance of a shiny, glazed, or burned spot on the side wall or if the belt appears brittle or shows small cracks. Before removing a belt during your repair task, make note of its exact routing around the pulley system.
