ZU 6004 M (80482) - Snapper 60" Mower Deck Assembly Double Idler Channel Assembly Parts Diagram

60" Mower Deck Assembly

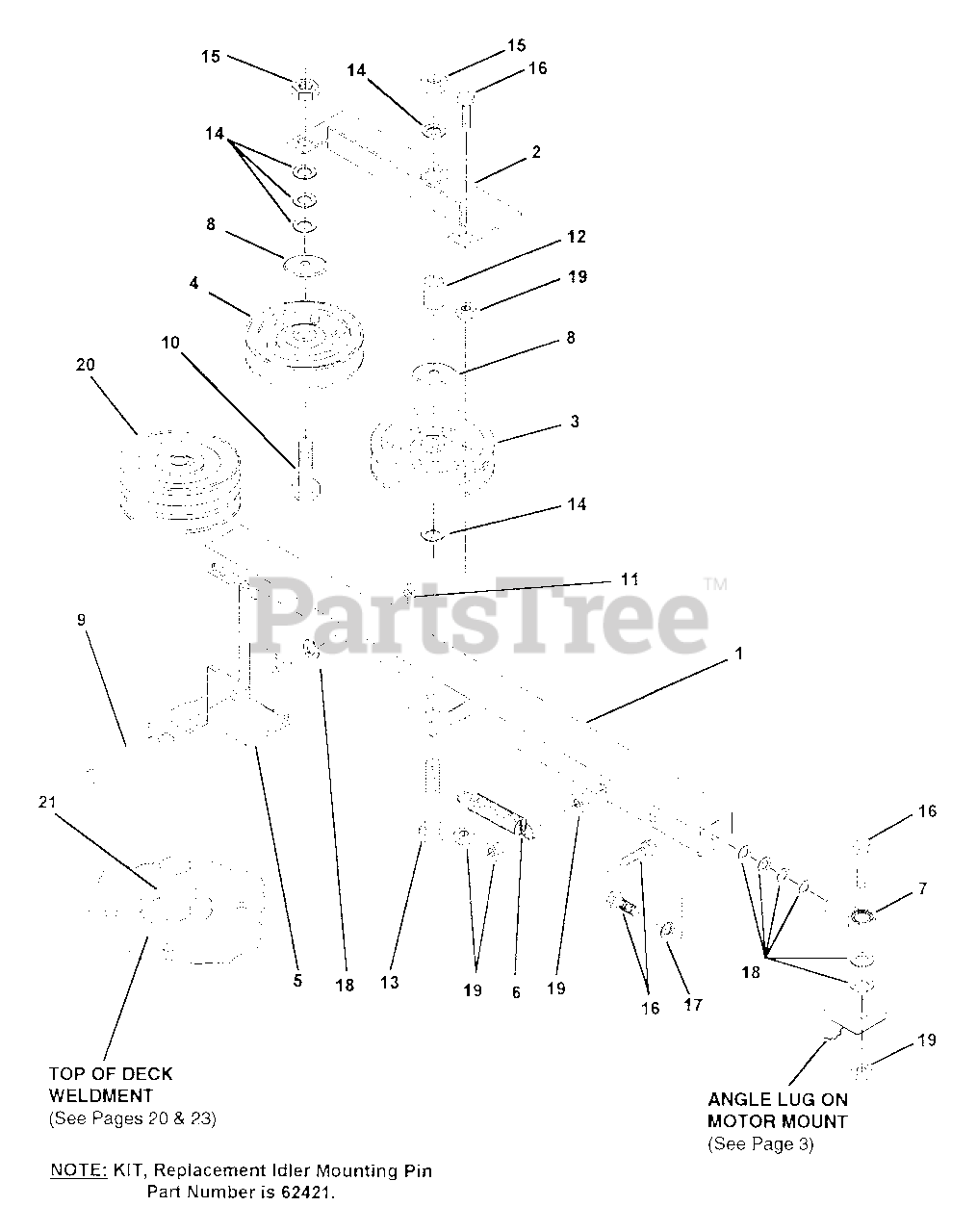

Double Idler Channel Assembly Parts Diagram

  • Title

1

Snapper 7062362

CHANNEL WLDT, DOUBLE IDLER MNT

$

$

Not available

2

Snapper 7062363

DOUBLE IDLER PIVOT WELDMENT
(Superseded to 7062363YP)

$60.99

$

Usually ships in 2-12 days

0

3

Snapper 7079167

PULLEY FLAT IDLED 1/2 BORE 4"
(Superseded to 7079167YP)

$59.99

$

Usually ships in 2-12 days

0

4

Snapper 7079166

PULLEY, V-IDLER, 4.48 O.D.
(Superseded to 7079166YP)

$59.99

$

Usually ships in 2-12 days

0

5

Snapper 7062364

BRACKET, CHANNEL, MTG.
(Superseded to 7062364YP)

$13.99

$

Usually ships in 2-12 days

0

6

Snapper 7079217

SPRING EXTENSION 3/4 X 4" OAL
(Superseded to 7079217YP)

$9.49

$

In Stock, Qty 5

0

7

Snapper 7079954

BALL JOINT, 3/8-24 FEMALE PLAIN

$

$

Currently unavailable

8

Snapper 7062286

WASHER, BEARING CAP
(Superseded to 7062286YP)

$11.99

$

Usually ships in 2-12 days

0

9

Snapper 7062365

CLEVIS PIN, 3/8 2-3/4 O.A.L.

$

$

Not available

10

Snapper 7090543

HH CAPSCREW, 1/2-13 X 2 L, GR 5
(Superseded to 703817)

Note: Was 79276

$5.99

$

Usually ships in 2-12 days

0

11

Snapper 7091593

COTTER, RUE RING 5/16-3/8 PIN
(Superseded to 703355)

Note: Was 79291

$3.99

$

In Stock, Qty 14

0

12

Snapper 7062370

BUSHING, IDLER M
(Superseded to 7062370YP)

$11.99

$

Usually ships in 2-12 days

0

13

Snapper 7091821

CAPSCREW, 1/2-13 X 3
(Superseded to 7091821YP)

Note: Was 62388

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7090250

WASHER, FLAT, STD, 1/2
(Superseded to 704123)

Note: Was 79264

$4.49

$

In Stock, only 3 left!

0

15

Snapper 7079277

1/2"-13 LOCKNUT W/NYLOC

$

$

Not available

16

Snapper 7090824

CAP SCREW, 3/8-24 X 1-1/4 GR.5
(Superseded to 7090824YP)

Note: Was 79422

$4.99

$

In Stock, Qty 9

0

17

Snapper 7079268

LOCK WASHER 3/8 HVY SPRING
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

18

Snapper 7090517

WASHER, FLAT, STD, STEEL 3/8
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

19

Snapper 7090289

LOCK NUT, 3/8 24 M-F LOCKNUT
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

20

PULLEY, 2 GROOVE, SPLIT STEEL

$

$

Not available

Snapper 7079820

4-1/2" O.D., 48" DECK
(Superseded to 7079820YP)

$164.99

$

Usually ships in 2-12 days

0

Snapper 7079821

5-3/8" O.D., 60" DECK
(Superseded to 7079821YP)

$152.99

$

Usually ships in 2-12 days

0

21

SPINDLE ASSEMBLY (48" OR 60" DECK)

Note: See "Deck Spindle Assembly"

$

$

Not available
