ZU 6004 M (80482) - Snapper 60" Mower Deck Assembly Deck Spindle Assembly Parts Diagram

60" Mower Deck Assembly

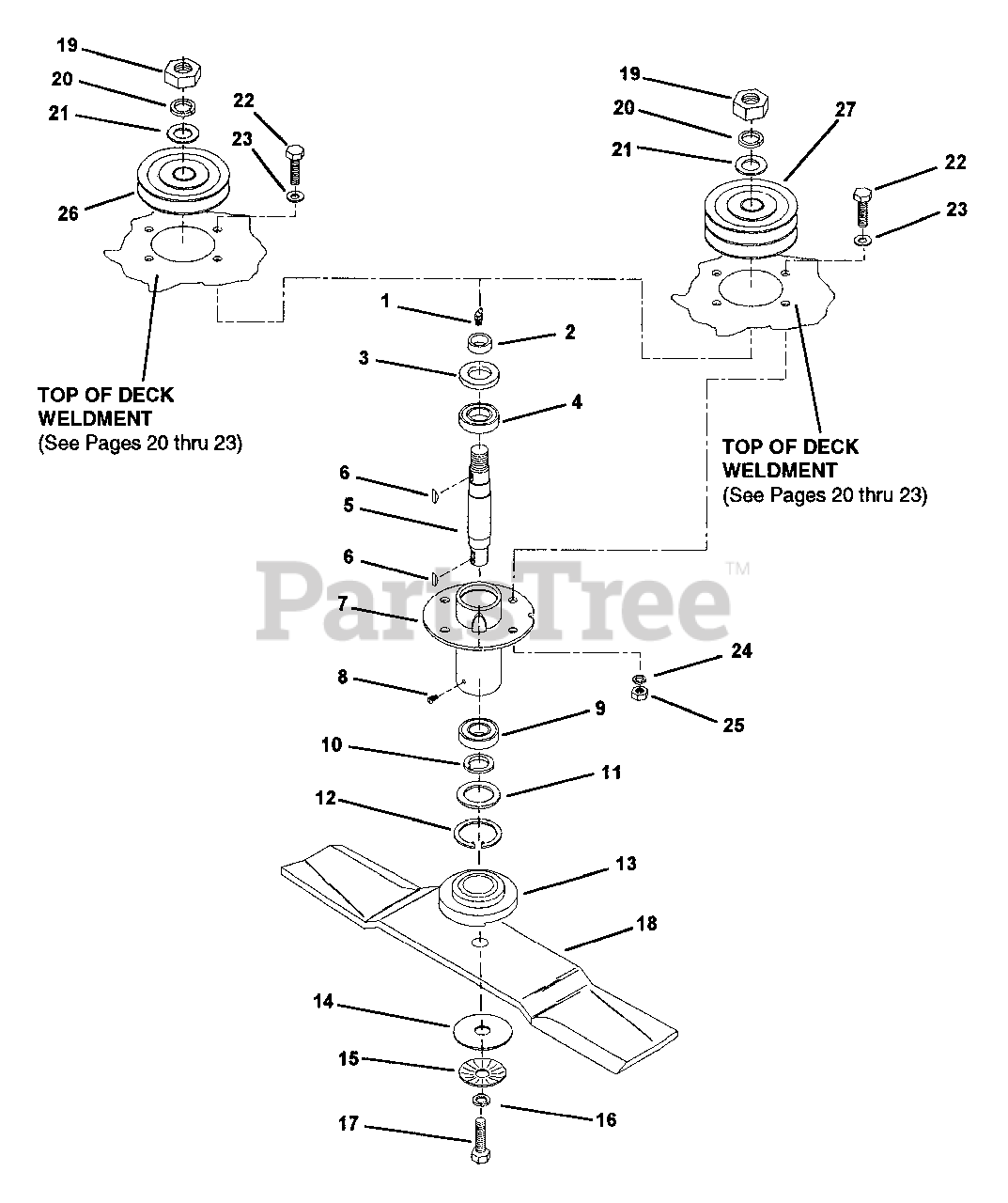

Deck Spindle Assembly Parts Diagram

  • Title

Snapper 7079885

DECK SPINDLE ASSEMBLY
(Superseded to 7079885YP)

Note: Was 62171

$603.99

$

Usually ships in 2-12 days

0

1

Snapper 7046430

GREASE FITTING
(Superseded to 7046430YP)

Note: Was 62164

$9.99

$

Usually ships in 2-12 days

0

2

Snapper 7062216

SEAL RACE
(Superseded to 7062216YP)

$31.99

$

Usually ships in 2-12 days

0

3

Snapper 7062183

OIL SEAL
(Superseded to 7062183YP)

$31.99

$

Usually ships in 2-12 days

0

4

Snapper 7062155

BALL BEARING: SST # 6205
(Superseded to 7062155YP)

$28.99

$

Usually ships in 2-12 days

0

5

Snapper 7062172

SPINDLE SHAFT

$

$

Currently unavailable

6

Snapper 7091978

WOODRUFF KEY 1/4 X 3/4
(Superseded to 7091978YP)

Note: Was 79159

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7062173

SPINDLE HOUSING

$

$

Not available

8

Snapper 7079269

DRIVE, SCREW # 4
(Superseded to 7079269YP)

$2.99

$

In Stock, only 1 left!

0

9

Snapper 7062182

BALL BEARING: NTN #6205-RS

$

$

Not available

10

Snapper 7079044

ARBOR SPACER
(Superseded to 7079044YP)

$24.99

$

Usually ships in 2-12 days

0

11

Snapper 7079876

SEAL WASHER

$

$

Not available

12

Snapper 7079855

SNAP RING: 52 MM INTERNAL BORE
(Superseded to 7079855YP)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7079877

BLADE SPACER

$

$

Not available

14

Snapper 7079038

FLAT WASHER, 1/2 X 2-1/2

$

$

Not available

15

Snapper 7079296

CUPPED WASHER, 1/2"

$

$

Not available

16

Snapper 7090254

LOCK WASHER, STANDARD: 1/2"
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7079309

CAP SCREW HX, 1/2-13 X 1-1/2" LG.

$

$

Currently unavailable

18

Snapper 7079369

BLADE: LOW LIFT 17" CUT, 48" DECK
(Superseded to 7079369YP)

$27.99

$

Usually ships in 2-12 days

0

Snapper 7079222

LOW LIFT 21" CUT, 60" DECK
(Superseded to 7079371BMYP)

$30.99

$

In Stock, Qty 14

0

19

Snapper 7074467

NUT, HEX JAM: 3/4
(Superseded to 7074467SM)

Note: Was 79286

$4.49

$

In Stock, Qty 10

0

20

Snapper 7079287

LOCK WASHER, SPLIT SPRING: 3/4

$

$

Not available

21

Snapper 7079299

FLAT WASHER, NARROW: 3/4

$

$

Not available

22

Snapper 7079326

CAPSCREW, HEX HD: 3/8-24 NF X 1-1/2

$2.99

$

In Stock, Qty 5

0

23

Snapper 7079039

SPINDLE REINFORCEMENT

$

$

Not available

24

Snapper 7079268

LOCK WASHER, SPLIT SPRING: 3/8
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

25

Snapper 7090289

LOCKNUT, M-F:3/8-24 NF
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

26

Snapper 7079819

PULLEY, 4 DIA. SPLIT STEEL
(Superseded to 7079819YP)

$319.99

$

Usually ships in 2-12 days

0

27

Snapper 7079821

PULLEY, 2 GROOVE, SPLIT STEEL
(Superseded to 7079821YP)

$152.99

$

Usually ships in 2-12 days

0

Snapper 7079820

4-1/2" O.D., 48" DECK
(Superseded to 7079820YP)

$164.99

$

Usually ships in 2-12 days

0

Snapper 7079821

5-3/8" O.D., 60" DECK
(Superseded to 7079821YP)

$152.99

$

Usually ships in 2-12 days

0

Snapper 7079388

BLADE, HIGH LIFT, 17" CUT, 48" DECK
(Superseded to 7079369YP)

Note: OPTIONAL BLADES

$27.99

$

Usually ships in 2-12 days

0

Snapper 7079371

BLADE, HIGH LIFT, 21" CUT, 60" DECK
(Superseded to 7079371BMYP)

Note: OPTIONAL BLADES

$30.99

$

In Stock, Qty 14

0
