ZU 6004 M (80482) - Snapper 60" Mower Deck Assembly 60" Deck Caster Wheel Assembly Parts Diagram

60" Mower Deck Assembly

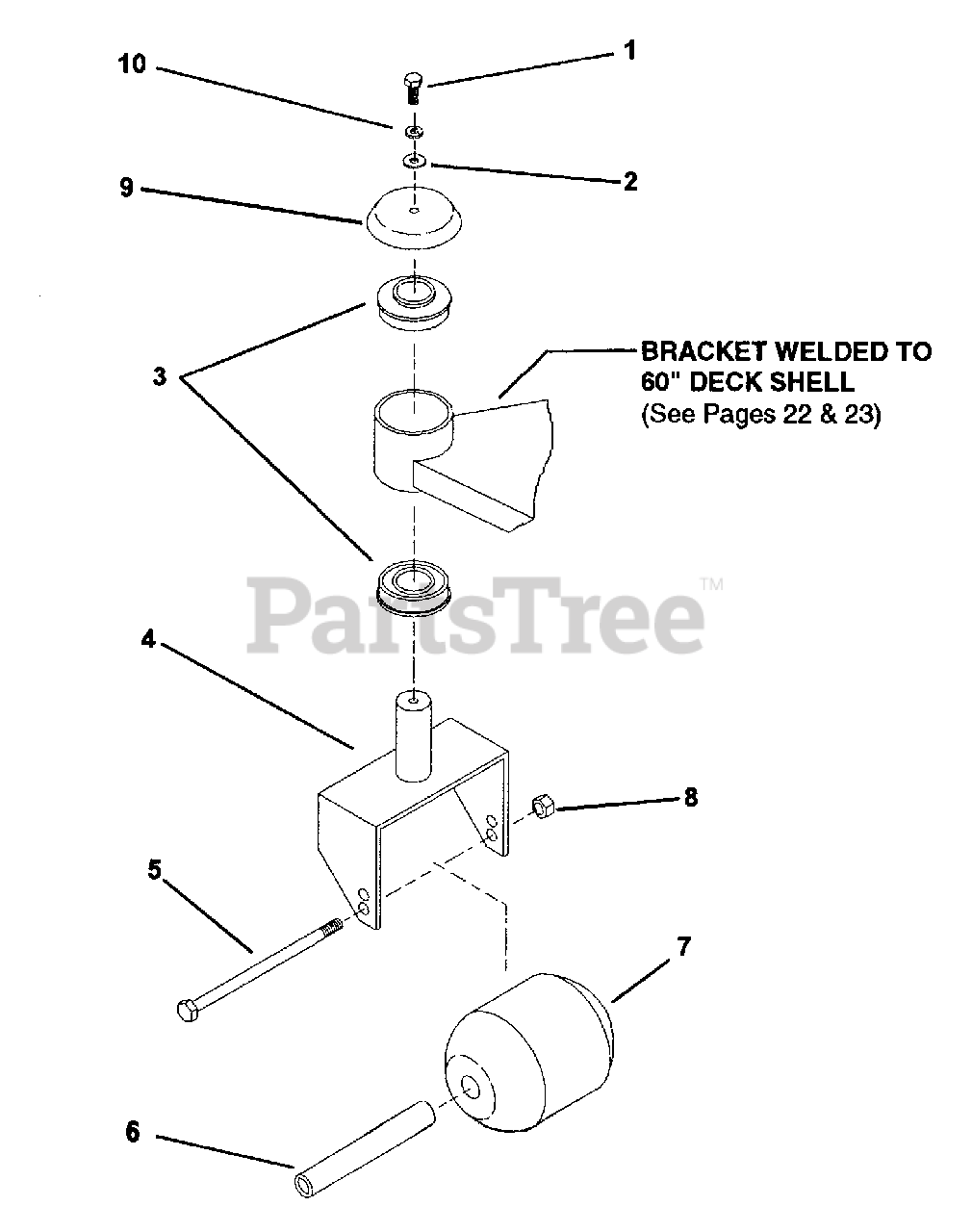

60" Deck Caster Wheel Assembly Parts Diagram

  • Title
1

Snapper 7091495

BOLT, 1/4-20 X 3/4" GR. 5
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 7

0

2

Snapper 7091294

WASHER, FLAT STD. 1/4"
(Superseded to 703332)

Note: Was 79410

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7079331

BEARING, SPD SF-16-32 NO/COLLAR
(Superseded to 1711534SM)

$46.99

$

Usually ships in 2-12 days

0

4

Snapper 7079883

SWIVEL YOKE WELDMENT

$

$

Not available

5

Snapper 7079845

BOLT, 3/8-16 X 6" GR. 5
(Superseded to 7091617YP)

$6.99

$

Usually ships in 2-12 days

0

6

Snapper 7079882

BUSHING
(Superseded to 7079882YP)

$32.99

$

Usually ships in 2-12 days

0

7

Snapper 7079868

ROLLER, 3-3/4" X 4-13/16" LONG
(Superseded to 7079868YP)

$63.99

$

In Stock, only 3 left!

0

8

Snapper 7091299

NUT, 3/8-16 NYLOC
(Superseded to 703117)

Note: Was 79273

$3.49

$

In Stock, Qty 20+

0

9

Snapper 7079352

CAP, BEARING

$

$

Not available

10

Snapper 7090052

LOCK WASHER, 1/4" SPLIT SPRING
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0
