ZU 6003 M (80193) - Snapper 60" Mower Deck Assembly 60" Deck Assembly Parts, ZU2013K Parts Diagram

60" Mower Deck Assembly

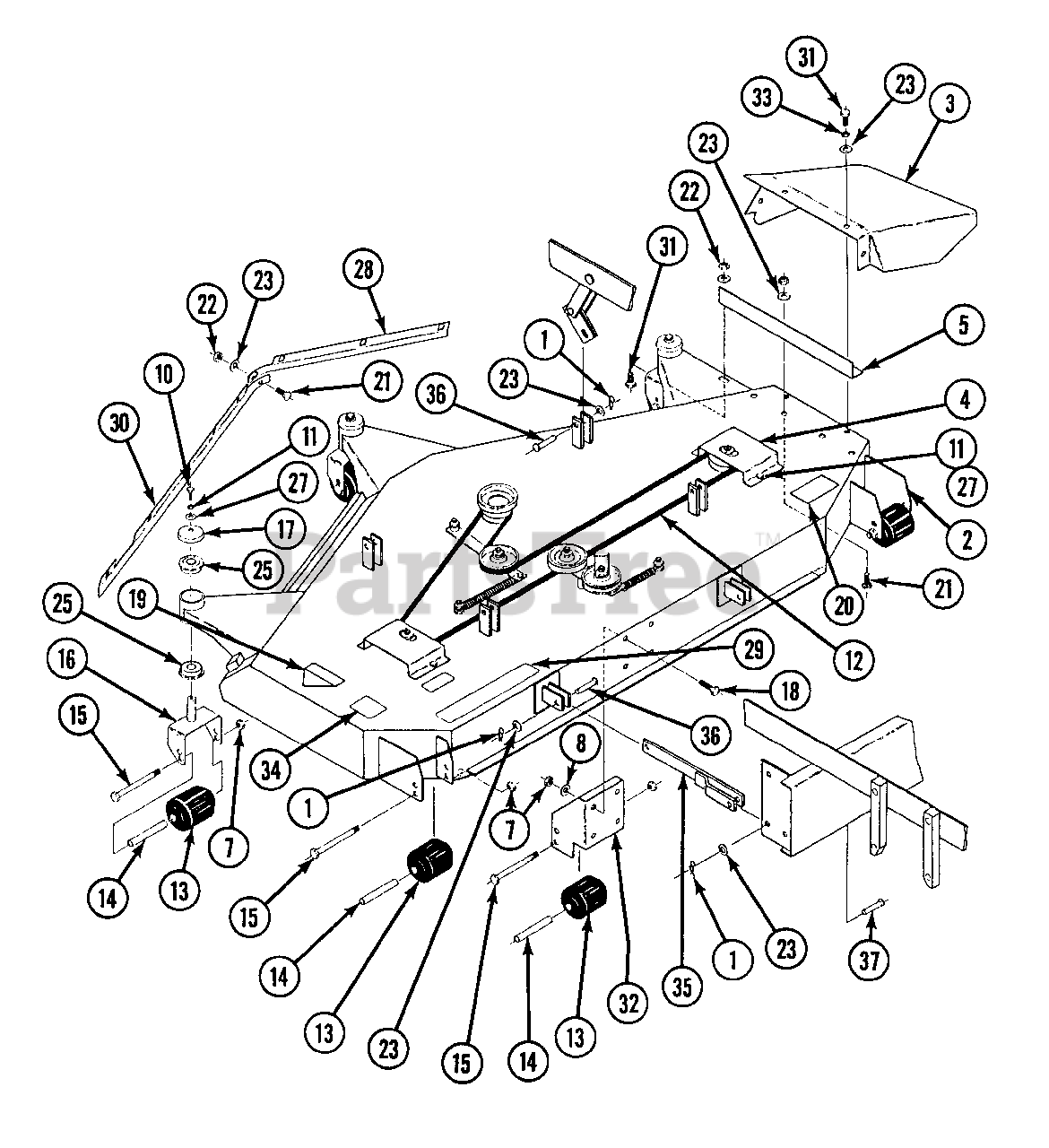

60" Deck Assembly Parts, ZU2013K Parts Diagram

  • Title

Snapper 7080193

60" DECK ASSEMBLY

$

$

Currently unavailable

1

Snapper 7091593

COTTER, RUE RING: 5/16 - 3/8
(Superseded to 703355)

Note: Was 79291

$3.99

$

In Stock, Qty 14

0

2

Snapper 7062209

60" DECK WELDMENT

$

$

Currently unavailable

3

Snapper 7062220

60" DECK CHUTE ASSEMBLY
(Superseded to 7062220YP)

$210.99

$

Usually ships in 2-12 days

0

4

Snapper 7062217

PULLEY COVER
(Superseded to 7062217YP)

$31.99

$

Usually ships in 2-12 days

0

5

Snapper 7062218

OUTLET STIFFENER

$

$

Currently unavailable

?6

Snapper 7090289

LOCKNUT, M-F: 3/8-24 NF
(Superseded to 703458)

Note: Was 79327

$4.99

$

In Stock, Qty 14

0

7

Snapper 7091299

LOCKNUT, NYLOCK: 3/8-16
(Superseded to 703117)

Note: Was 79273

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7090517

FLAT WASHER, STD: 3/8
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

?9

Snapper 7090824

CAPSCREW, HX HD: 3/8-24 X 1-1/4 GR 5
(Superseded to 7090824YP)

Note: Was 79422

$4.99

$

In Stock, Qty 9

0

10

Snapper 7091495

CAPSCREW, HX HD: 1/4-20 X 3/4 GR 5
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 7

0

11

Snapper 7090052

LOCKWASHER, SPLT SPRNG: 1/4
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

12

Snapper 7079186

DECK BELT: A-112
(Superseded to 7079186YP)

$48.99

$

In Stock, Qty 5

0

13

Snapper 7079868

ROLLER, LOW DENSITY POLYETHYLENE
(Superseded to 7079868YP)

$63.99

$

In Stock, only 3 left!

0

14

Snapper 7079882

BUSHING, ROLLER
(Superseded to 7079882YP)

$32.99

$

Usually ships in 2-12 days

0

15

Snapper 7079845

CAPSCREW, HX HD: 3/8-16 X 6 GR 5
(Superseded to 7091617YP)

$6.99

$

Usually ships in 2-12 days

0

16

Snapper 7079883

YOKE WLDT, SWIVEL

$

$

Not available

17

Snapper 7079352

BEARING CAP

$

$

Not available

18

Snapper 7090603

CAPSCREW, HX HD:3/8-16 X 7/8 GR 5

$2.99

$

In Stock, only 1 left!

0

19

Snapper 7079234

DECAL, BLOODY STUMP

$

$

Currently unavailable

20

Snapper 7079242

DECAL, CHUTE (SAFETY)

$

$

Currently unavailable

21

Snapper 7090316

BOLT, CARRIAGE: 5/16 X 3/4
(Superseded to 703225)

Note: Was 79438

$3.99

$

In Stock, Qty 18

0

22

Snapper 7091298

LOCKNUT, NYLOCK: 5/16-18
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7090188

FLAT WASHER, STD: 5/16
(Superseded to 703350)

Note: Was 79263

$4.49

$

In Stock, only 1 left!

0

?24

Snapper 7079240

DECAL, WARNING
(Superseded to 7079240YP)

$12.99

$

Usually ships in 2-12 days

0

25

Snapper 7079331

BEARING: 1"ID X 2" OD
(Superseded to 1711534SM)

$46.99

$

Usually ships in 2-12 days

0

?26

Snapper 7079217

SPRING, EXTENSION
(Superseded to 7079217YP)

$9.49

$

In Stock, Qty 5

0

27

Snapper 7091294

FLAT WASHER, 1/4
(Superseded to 703332)

Note: Was 79410

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7062221

LIP BAFFLE, RH

$

$

Not available

29

Snapper 7062202

DECAL, "ZU6003M"

$

$

Not available

30

Snapper 7062222

LIP BAFFLE, LH

$

$

Not available

31

Snapper 7076934

CAPSCREW, HX HD: 5/16-18 X 3/4 GR 5
(Superseded to 7076934YP)

Note: Was 79315

$3.49

$

Usually ships in 2-12 days

0

32

Snapper 7062219

REAR ANTI-SCALP BRACKET

$

$

Currently unavailable

33

Snapper 7079267

LOCKWASHER, SPLT SPRNG: 5/16
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

34

Snapper 7062199

DECAL, "GREASE SPINDLES.."
(Superseded to 7062199YP)

$7.99

$

Usually ships in 2-12 days

0

35

Snapper 7062107

DRAG BAR WELDMENT
(Superseded to 7062107YP)

$38.99

$

Usually ships in 2-12 days

0

36

Snapper 7013996

PIN, CLEVIS: 3/8 X 2
(Superseded to 7013996SM)

Note: Was 79318

$3.49

$

In Stock, only 1 left!

0

37

Snapper 7062185

PIN, CLEVIS: 3/8 X 1-5/16

$

$

Currently unavailable

Snapper 7062065

BELT - ENGINE TO DECK: BP-87
(Superseded to 7062065YP)

$34.99

$

Usually ships in 2-12 days

0
