ZU 4813 M (80209) - Snapper 48" Mower Deck Assembly Single Idler Assembly Parts Parts Diagram

48" Mower Deck Assembly

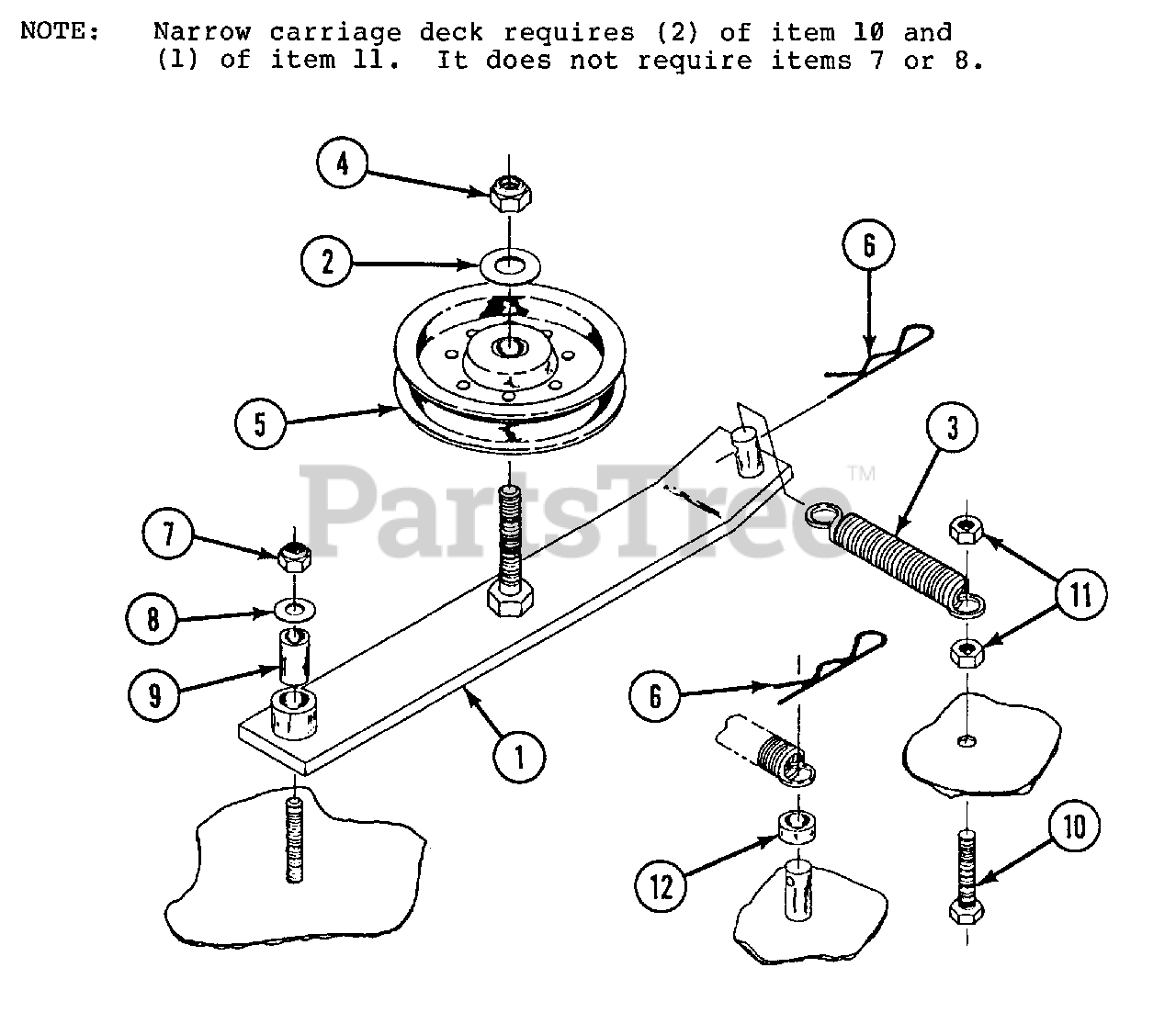

Single Idler Assembly Parts Parts Diagram

  • Title

Snapper 7079016

SINGLE IDLER ASSEMBLY
(Superseded to 7079016YP)

$148.99

$

Usually ships in 2-12 days

0

1

Snapper 7079015

SINGLE IDLER ARM WELDMENT

$

$

Not available

2

Snapper 7090250

FLAT WASHER, 1/2"
(Superseded to 704123)

Note: Was 79264

$4.49

$

In Stock, only 3 left!

0

3

Snapper 7079217

SPRING, EXTENSION, 3/4 X 4" O.A.L.
(Superseded to 7079217YP)

$9.49

$

In Stock, Qty 5

0

4

Snapper 7079277

LOCKNUT, 1/2-13 HEX. NYLOCK

$

$

Not available

5

Snapper 7079167

PULLEY, FLAT IDLER, 1/2 BORE, 4" O.D.
(Superseded to 7079167YP)

$59.99

$

Usually ships in 2-12 days

0

6

Snapper 7079289

PIN, HAIR SPRING, 1/8 X 2-1/2

$

$

Not available

7

Snapper 7091299

LOCKNUT, 3/8-16 HEX. NYLOCK
(Superseded to 703117)

Note: Was 79273

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7090517

WASHER, FLAT STD. 3/8 W SERIES
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

9

Snapper 7079174

BEARING OILITE, 3/8 I.D. X 5/8 O.D.
(Superseded to 7079174YP)

$11.99

$

Usually ships in 2-12 days

0

10

Snapper 7090824

CAPSCREW, HX HD:3/8-24NF X 1 1/4 GR. 5
(Superseded to 7090824YP)

Note: Was 79422

$4.99

$

In Stock, Qty 9

0

11

Snapper 7090289

LOCKNUT, 3/8-24, M-F
(Superseded to 703458)

Note: Was 79327

$4.99

$

In Stock, Qty 14

0

12

Snapper 7079349

SPRING SPACER

$6.99

$

In Stock, only 1 left!

0
