ZU 4813 M (80209) - Snapper 48" Mower Deck Assembly Double Idler Assembly Parts Parts Diagram

48" Mower Deck Assembly

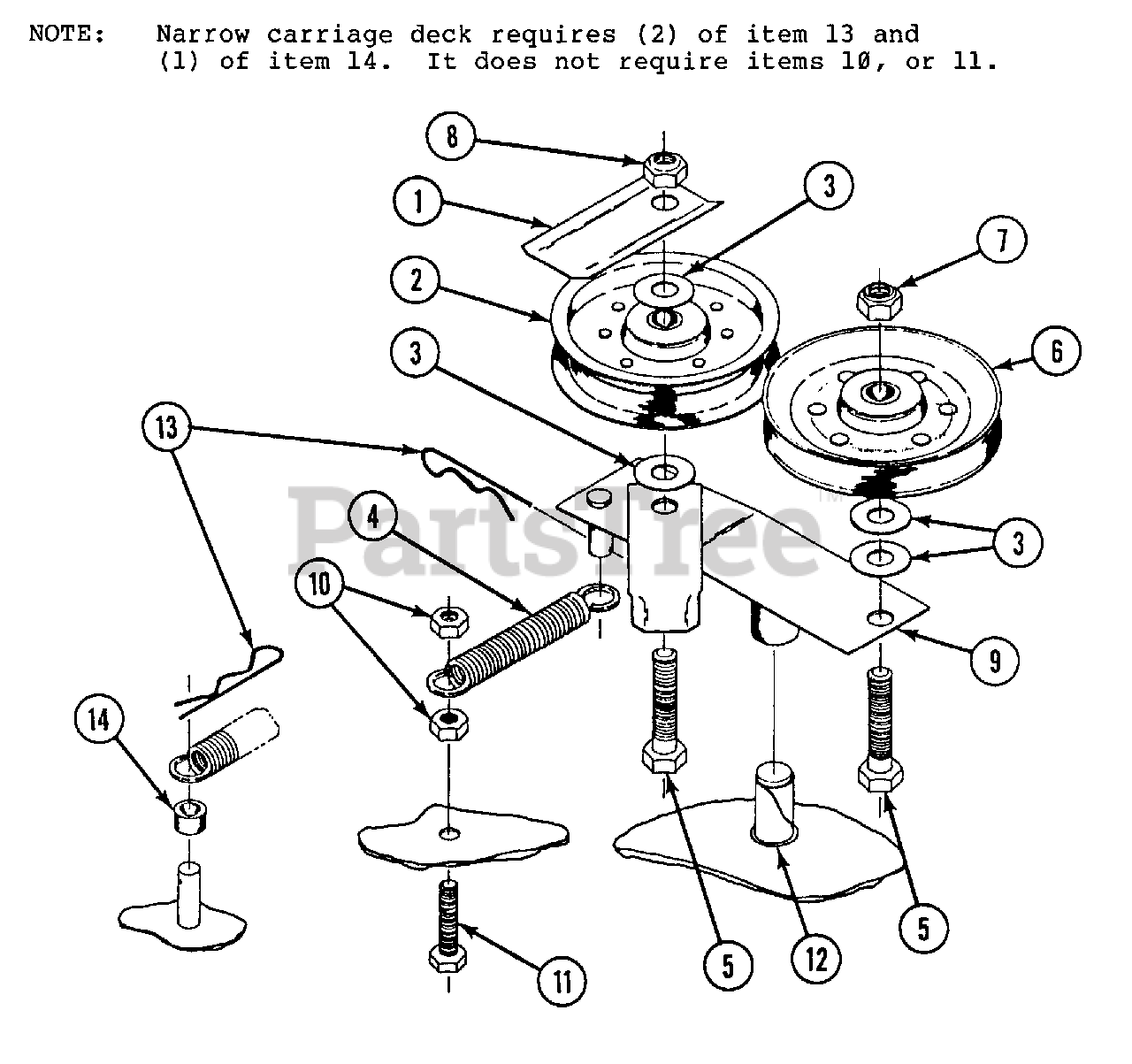

Double Idler Assembly Parts Parts Diagram

  • Title

Snapper 7079872

DOUBLE IDLER ASSEMBLY

$

$

Currently unavailable

1

Snapper 7079032

PLATE, BELT STOP

$

$

Not available

2

Snapper 7079167

PULLEY, FLAT IDLER 1/2 BORE, 4" O.D.
(Superseded to 7079167YP)

$59.99

$

Usually ships in 2-12 days

0

3

Snapper 7090250

FLAT WASHER, 1/2
(Superseded to 704123)

Note: Was 79264

$4.49

$

In Stock, only 3 left!

0

4

Snapper 7079217

SPRING EXTENSION, 3/4 X 4" O.A.L
(Superseded to 7079217YP)

$9.49

$

In Stock, Qty 5

0

5

Snapper 7090543

CAPSCREW, HX HD: 1/2-13 X 2 GR.5
(Superseded to 703817)

Note: Was 79276

$5.99

$

Usually ships in 2-12 days

0

6

Snapper 7079166

PULLEY, V-IDLER, 1/2 BORE, 4-3/8 O.D.
(Superseded to 7079166YP)

$59.99

$

Usually ships in 2-12 days

0

7

Snapper 7079277

NUT, 1/2-13, NYLOC

$

$

Not available

8

Snapper 7079262

NUT, 1/2-13, STOVER
(Superseded to 7079262YP)

$2.99

$

Usually ships in 2-12 days

0

9

Snapper 7079873

DOUBLE IDLER WELDMENT

$

$

Not available

10

Snapper 7090289

NUT, 3/8-24, M-F LOCKNUT
(Superseded to 703458)

Note: Was 79327

$4.99

$

In Stock, Qty 14

0

11

Snapper 7090824

CAPSCREW, HX HD: 3/8-24 X 1 1/4 GR.5
(Superseded to 7090824YP)

Note: Was 79422

$4.99

$

In Stock, Qty 9

0

12

Snapper 7079175

BUSHING, NYLON, 5/8 BORE

$

$

Not available

13

Snapper 7079289

PIN, HAIR SPRING, 1/8 X 2-1/2

$

$

Not available

14

Snapper 7079349

SPRING SPACER

$6.99

$

In Stock, only 1 left!

0
