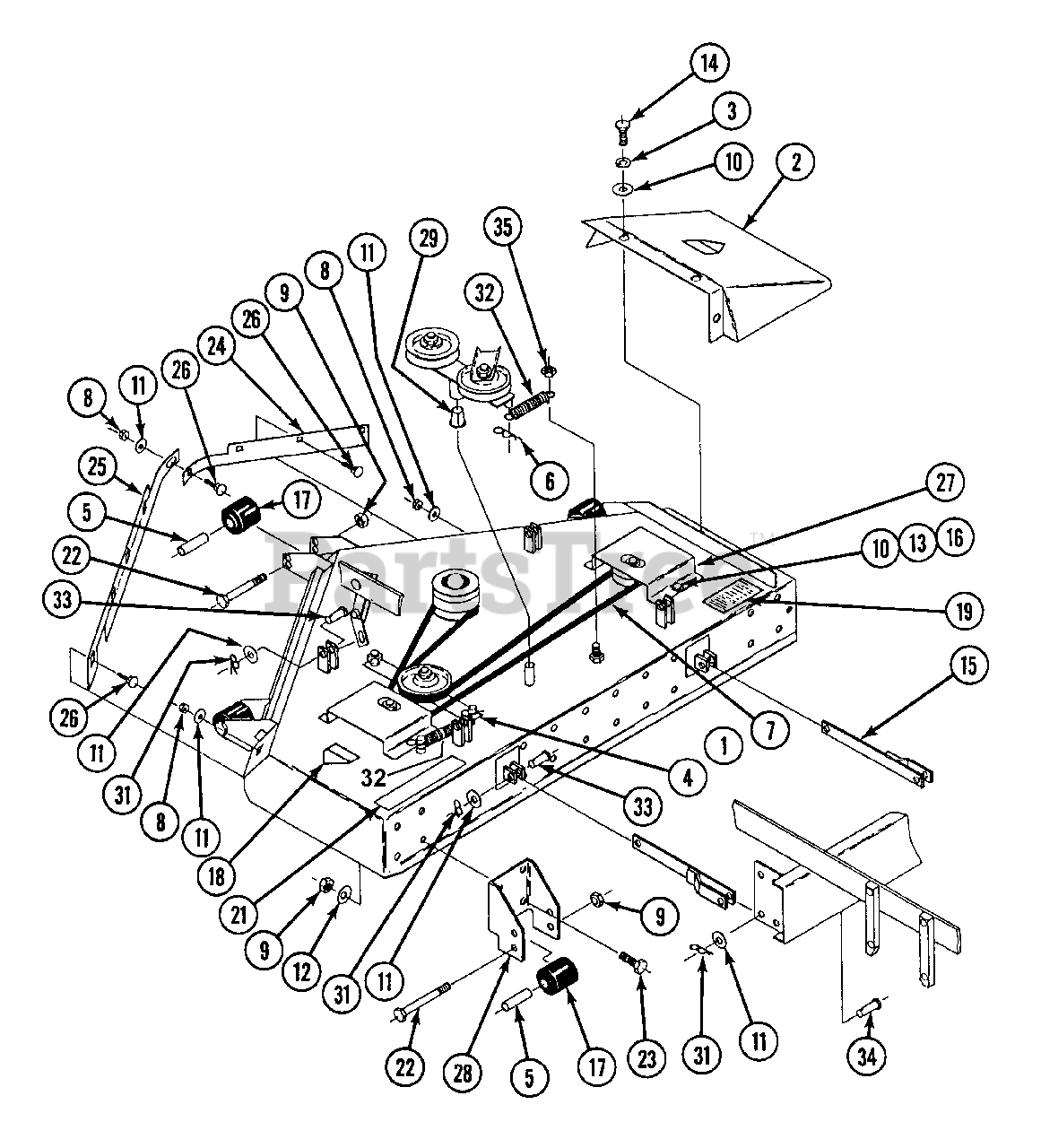

ZU 4813 M (80209) - Snapper 48" Mower Deck Assembly 48" Deck Assembly Parts, ZU2013K Parts Diagram

48" Mower Deck Assembly

48" Deck Assembly Parts, ZU2013K Parts Diagram

  • Title

Snapper 7080209

48" DECK ASSEMBLY (WIDE MNTG.)

$

$

Currently unavailable

1

Snapper 7062208

DECK WELDMENT

$

$

Currently unavailable

2

Snapper 7062211

DECK CHUTE ASSEMBLY

$

$

Currently unavailable

3

Snapper 7079267

LOCKWASHER, SPLT SPRNG: 5/16
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7079016

SINGLE IDLER ASSEMBLY
(Superseded to 7079016YP)

$148.99

$

Usually ships in 2-12 days

0

5

Snapper 7079023

ROLLER SPACER BUSHING

$

$

Not available

6

Snapper 7079289

PIN, HAIR SPRING: 1/8 X 2-1/2

$

$

Not available

7

Snapper 7079182

DECK BELT, AP105
(Superseded to 7079182YP)

$58.99

$

Usually ships in 2-12 days

0

8

Snapper 7091298

LOCKNUT, NYLOCK: 5/16-18
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7091299

LOCKNUT, NYLOCK: 3/8-16
(Superseded to 703117)

Note: Was 79273

$3.49

$

In Stock, Qty 20+

0

10

Snapper 7091294

FLAT WASHER, STD: 1/4
(Superseded to 703332)

Note: Was 79410

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7090188

FLAT WASHER, STD: 5/16
(Superseded to 703350)

Note: Was 79263

$4.49

$

In Stock, Qty 6

0

12

Snapper 7090517

FLAT WASHER, STD: 3/8
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

13

Snapper 7090052

LOCKWASHER, SPLT SPRNG: 1/4
(Superseded to 7090052SM)

$3.49

$

In Stock, Qty 5

0

14

Snapper 7076934

CAPSCREW, HX HD: 5/16-18 X 3/4 GR 5
(Superseded to 7076934YP)

Note: Was 79315

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7062107

DRAG BAR WLDT
(Superseded to 7062107YP)

$38.99

$

Usually ships in 2-12 days

0

16

Snapper 7091495

CAPSCREW, HX HD: 1/4-20 X 3/4 GR5
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 7

0

17

Snapper 7073142

ROLLER, LOW DENSITY POLYETHYLENE
(Superseded to 7073142YP)

Note: Was 79226

$16.99

$

In Stock, Qty 7

0

18

Snapper 7079234

DECAL, BLOODY STUMP

$

$

Currently unavailable

19

Snapper 7079240

DECAL, "WARNING ALL DECKS..."
(Superseded to 7079240YP)

$12.99

$

Usually ships in 2-12 days

0

?20

Snapper 7079242

DECAL, CHUTE (SAFETY)

$

$

Currently unavailable

21

Snapper 7062203

DECAL, "ZU4813M"

$

$

Currently unavailable

22

Snapper 7079597

CAPSCREW, HX HD: 3/8-16 X 5 GR 5

$

$

Not available

23

Snapper 7090603

CAPSCREW, HX HD: 3/8-16 X 7/8 GR 5

$2.99

$

In Stock, only 1 left!

0

24

Snapper 7062223

LIP BAFFLE, RH

$

$

Currently unavailable

25

Snapper 7062224

LIP BAFFLE, LH

$

$

Not available

26

Snapper 7090316

BOLT, CARRIAGE: 5/16-18 X 3/4
(Superseded to 703225)

Note: Was 79438

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7062215

PULLEY COVER

$

$

Currently unavailable

28

Snapper 7062214

REAR ANTI-SCALP BRACKET
(Superseded to 7062214YP)

$19.99

$

Usually ships in 2-12 days

0

29

Snapper 7079175

BUSHING, SPLIT FLANGED: 5/8 BORE

$

$

Not available

?30

Snapper 7062199

DECAL, "GREASE SPINDLES.."
(Superseded to 7062199YP)

$7.99

$

Usually ships in 2-12 days

0

31

Snapper 7091593

COTTER, RUE RING: 5/16-3/8 PIN
(Superseded to 703355)

Note: Was 79291

$3.99

$

In Stock, Qty 14

0

32

Snapper 7079217

SPRING, EXTENSION
(Superseded to 7079217YP)

$9.49

$

In Stock, Qty 5

0

33

Snapper 7013996

PIN, CLEVIS: 3/8 X 2
(Superseded to 7013996SM)

Note: Was 79318

$3.49

$

In Stock, only 1 left!

0

34

Snapper 7062185

PIN, CLEVIS: 3/8 X 1-5/16

$

$

Currently unavailable

35

Snapper 7090289

LOCKNUT, MF: 3/8-24
(Superseded to 703458)

Note: Was 79327

$4.99

$

In Stock, Qty 14

0

Snapper 7079563

BELT - ENGINE TO DECK, BP-84

$

$

Currently unavailable
