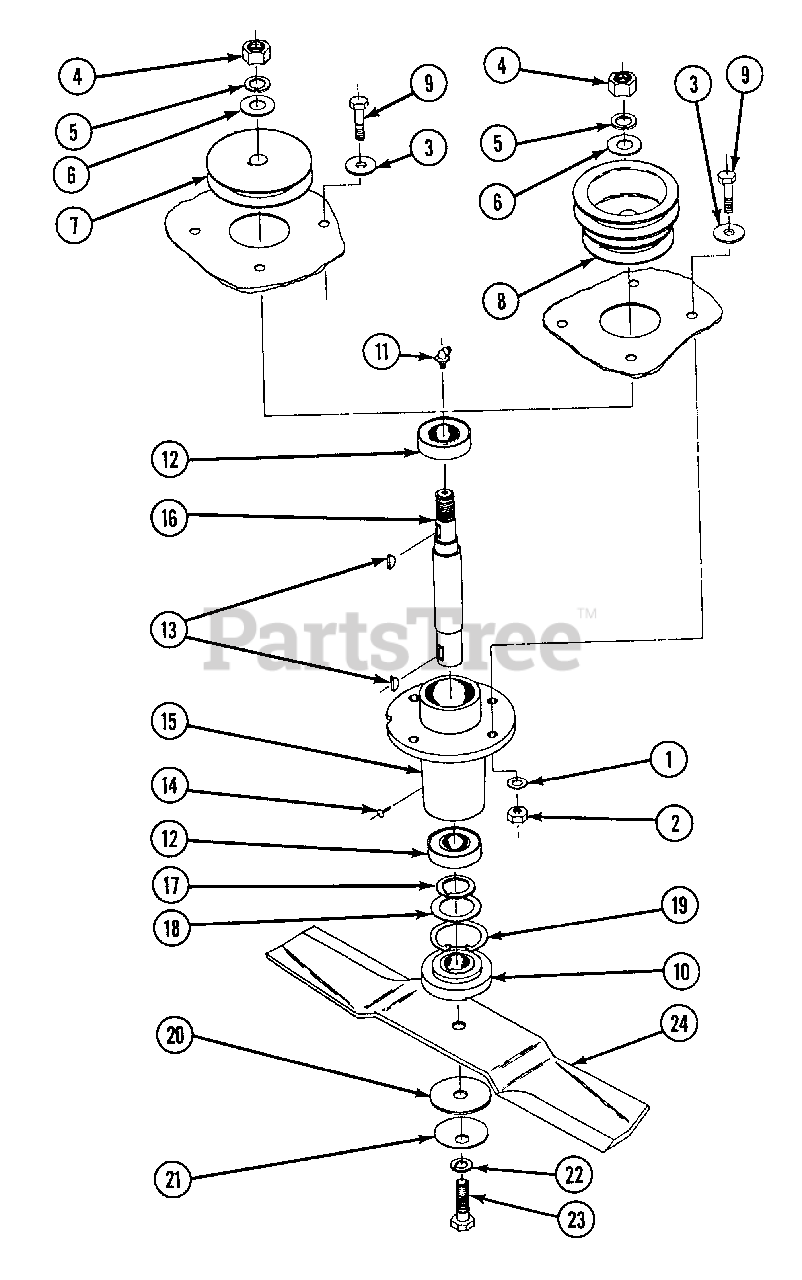

ZU 4803 M (80167) - Snapper 48" Mower Deck Assembly Deck Spindle Assembly, 1810 & 2010 Parts Diagram

48" Mower Deck Assembly

Deck Spindle Assembly, 1810 & 2010 Parts Diagram

  • Title

1

Snapper 7079268

LOCKWASHER, SPLT SPRNG: 3/8
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

2

Snapper 7090289

LOCKNUT, M-F: 3/8-24NF
(Superseded to 703458)

Note: Was 79327

$4.99

$

In Stock, Qty 14

0

3

Snapper 7079039

WASHER, REINFORCEMENT

$

$

Not available

4

Snapper 7074467

NUT, HEX JAM: 3/4
(Superseded to 7074467SM)

Note: Was 79286

$4.49

$

In Stock, Qty 10

0

5

Snapper 7079287

LOCKWASHER, SPLT SPRNG: 3/4

$

$

Not available

6

Snapper 7079299

FLAT WASHER, NARROW: 3/4

$

$

Not available

7

Snapper 7079037

PULLEY, SINGLE GROOVE: 3/4 BORE 4" OD
(Superseded to 7079037YP)

$89.99

$

Usually ships in 2-12 days

0

8

Snapper 7079050

PULLEY, 2 GROOVE: 3/4 BORE
(Superseded to 7079050YP)

$262.99

$

Usually ships in 2-12 days

0

9

Snapper 7079326

CAPSCREW, HX HD: 3/8-24NF X 1-1/2

$2.99

$

In Stock, Qty 5

0

Snapper 7079048

DECK SPINDLE ASSEMBLY (INCH BRGS)

$

$

Not available

10

Snapper 7079035

BLADE SPACER
(Superseded to 7079035YP)

$50.99

$

In Stock, only 2 left!

0

11

Snapper 7076998

GREASE FITTING
(Superseded to 703153)

Note: Was 79384

$3.99

$

In Stock, Qty 12

0

12

Snapper 7079173

BEARING, 1"ID X 2" OD
(Superseded to 7079173YP)

$50.99

$

Usually ships in 2-12 days

0

13

Snapper 7091978

KEY, WOODRUFF: 1/4 X 3/4
(Superseded to 7091978YP)

Note: Was 79159

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7079269

DRIVE SCREW: NO.4 X 3/16
(Superseded to 7079269YP)

$2.99

$

In Stock, only 1 left!

0

15

Snapper 7079034

DECK SPINDLE HOUSING

$

$

Not available

16

Snapper 7079033

DECK SPINDLE SHAFT
(Superseded to 7079033YP)

$99.99

$

Usually ships in 2-12 days

0

17

Snapper 7079044

ARBOR SPACER
(Superseded to 7079044YP)

$24.99

$

Usually ships in 2-12 days

0

18

Snapper 7079036

SEAL WASHER

$

$

Currently unavailable

19

Snapper 7079219

RETAINING RING
(Superseded to 7079219YP)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 7079038

WASHER

$

$

Not available

21

Snapper 7079296

WASHER, CUPPED

$

$

Not available

22

Snapper 7090254

LOCKWASHER, SPLT SPRNG: 1/2
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

23

Snapper 7091884

CAPSCREW, HX HD: 1/2-13 X 1-1/2 GR 5
(Superseded to 703571)

Note: Was 79308

$4.49

$

Usually ships in 2-12 days

0

24

Snapper 7079369

BLADE, LOW LIFT, 17" CUT (48" DECK)
(Superseded to 7079369YP)

$27.99

$

Usually ships in 2-12 days

0

Snapper 7079388

BLADE, HIGH LIFT, 17" CUT (48" DECK)
(Superseded to 7079369YP)

Note: OPTIONAL BLADE

$27.99

$

Usually ships in 2-12 days

0
