ZU 2014 K (80455) - Snapper Zero-Turn Mower, Unistat Drive, 20hp Wire Harness Parts Diagram

Zero-Turn Mower, Unistat Drive, 20hp

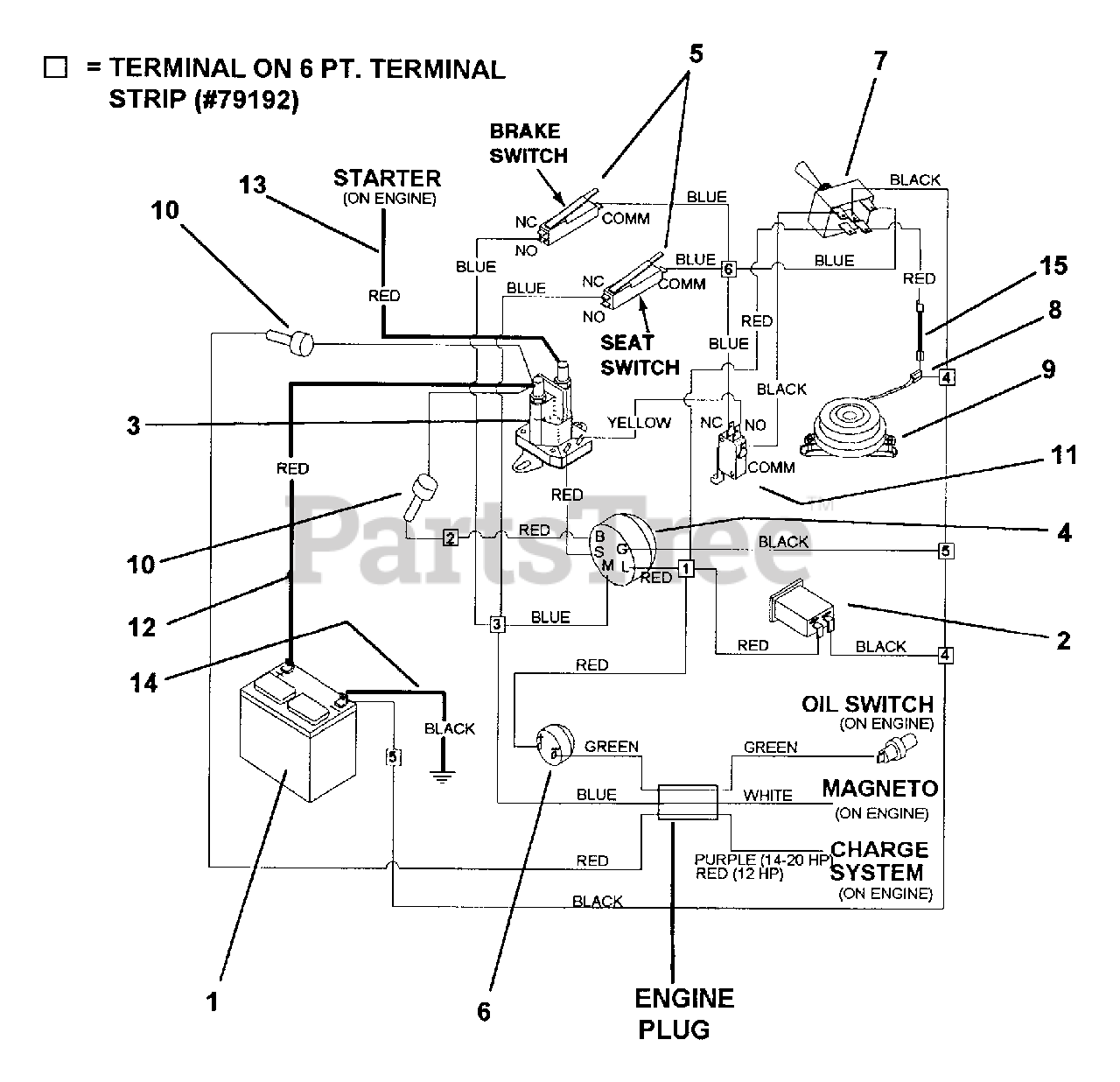

Wire Harness Parts Diagram

  • Title

1

Snapper 7079482

BATTERY

$

$

Not available

2

Snapper 7060788

HOUR METER

Note: Was 79203

$

$

Not available

3

Snapper 7079193

SOLENOID
(Superseded to 7079193YP)

$42.99

$

Usually ships in 2-12 days

0

4

Snapper 7026343

START SWITCH
(Superseded to 7026343SM)

Note: Was 79201

$38.99

$

In Stock, Qty 18

0

5

Snapper 7079194

SWITCH, ENCL, SPDT 15A HINGED LEVER

$

$

Not available

6

Snapper 7079208

BUZZER
(Superseded to 7079208YP)

$109.99

$

Usually ships in 2-12 days

0

7

Snapper 7079342

CLUTCH SWITCH
(Superseded to 7079342YP)

$38.99

$

In Stock, only 1 left!

0

8

Snapper 7079204

INSULATOR COVER (female end only)
(Superseded to 7079204YP)

$2.99

$

Usually ships in 2-12 days

0

9

Snapper 7079446

ELECTRIC CLUTCH
(Superseded to 7079446YP)

$542.99

$

Usually ships in 2-12 days

0

10

Snapper 7079206

FUSE HOLDER (INLINE)
(Superseded to 7079206YP)

$18.99

$

In Stock, only 1 left!

0

Snapper 7079341

FUSE, 30 AMP
(Superseded to 7079341YP)

$7.49

$

Usually ships in 2-12 days

0

11

Snapper 7079530

SWITCH, SPDT MINIATURE
(Superseded to 7079530YP)

$41.99

$

Usually ships in 2-12 days

0

12

Snapper 7079705

CABLE, BATTERY, 31.75" W/ BOOTS

$

$

Currently unavailable

13

Snapper 7079706

CABLE, STARTER, 31.75" W/O BOOTS
(Superseded to 7079706YP)

$17.99

$

Usually ships in 2-12 days

0

14

Snapper 7062314

WIRE ASS'Y, 24" BLK. 8 GA. ENG./GRD., 20 HP
(Superseded to 7062314YP)

$11.99

$

In Stock, only 1 left!

0

15

Snapper 7062387

CLUTCH WIRE EXTENSION

$

$

Currently unavailable

Snapper 7079192

6 PT. TERMINAL STRIP
(Superseded to 7079192YP)

$15.99

$

Usually ships in 2-12 days

0
