ZU 2014 K (80455) - Snapper Zero-Turn Mower, Unistat Drive, 20hp Oil Tank Assembly Parts Diagram

Zero-Turn Mower, Unistat Drive, 20hp

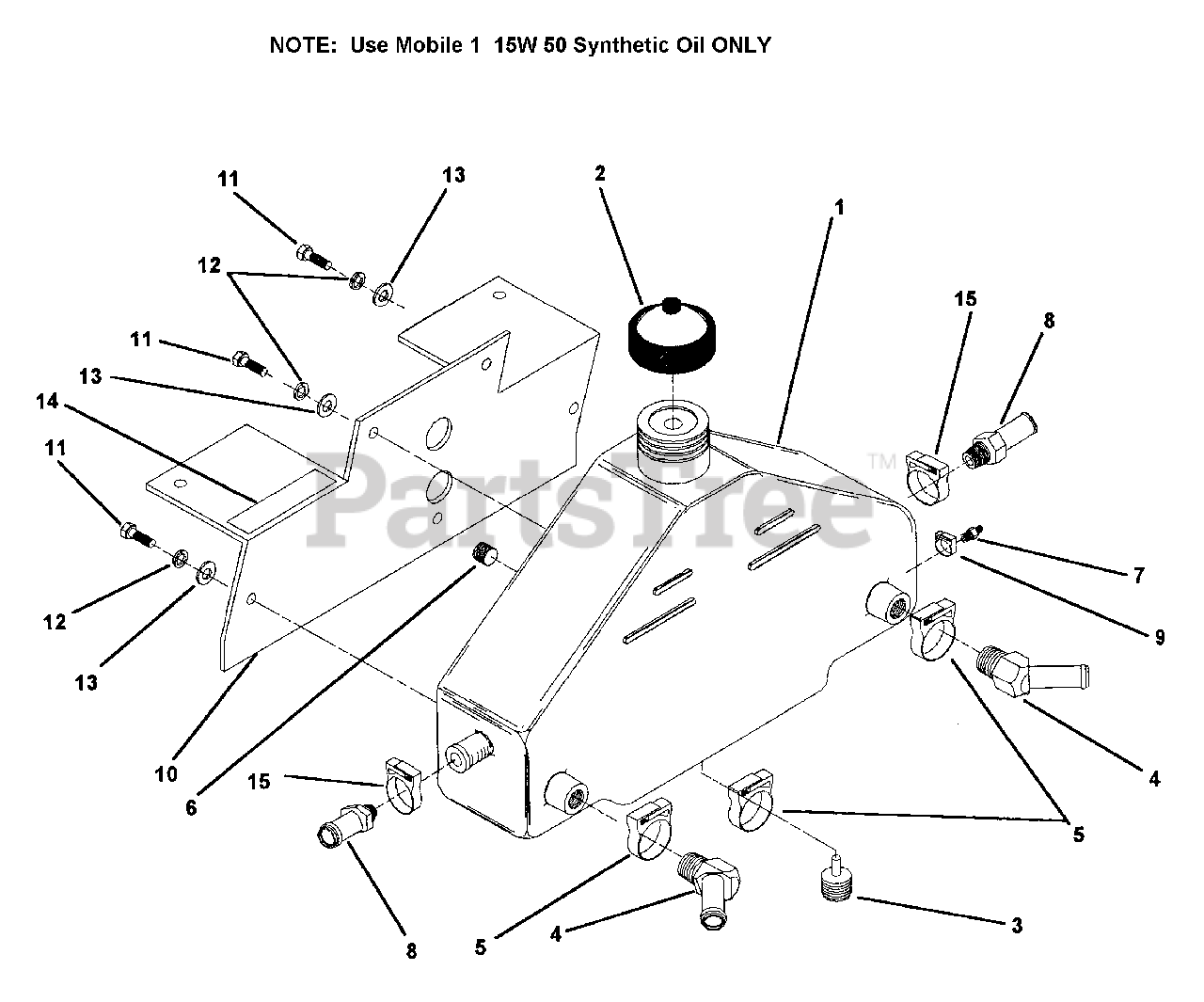

Oil Tank Assembly Parts Diagram

  • Title

1

Snapper 7062167

OIL RESERVOIR UNISTAT

$

$

Not available

2

Snapper 7035512

OIL CAP,

Note: Was 62166

$

$

Not available

3

Snapper 7062189

PLUG, MAGNETIC PIPE: 1/2"

$

$

Currently unavailable

4

Snapper 7062337

ELBOW 45 DEG 1/2, NPT X 5/8
(Superseded to 7062337YP)

$27.99

$

Usually ships in 2-12 days

0

5

Snapper 7062248

CLAMP,NYLON HOSE,1"

$

$

Currently unavailable

6

Snapper 7062251

PIPE PLUG, 1/4 SOCKET HD

$

$

Currently unavailable

7

Snapper 7062338

FITTING, 1/8 NPT X 3/8 HOSE

$

$

Currently unavailable

8

Snapper 7062339

HOSE BARB, 5/8 HOSE X 1/4

$

$

Currently unavailable

9

Snapper 7079861

CLAMP,NYLON HOSE 5/8"
(Superseded to 7079861YP)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7062386

MOUNTING, BRACKET

$

$

Currently unavailable

11

Snapper 7076934

CAPSCREW: HH 5/16-18 X 3/4 GR. 5
(Superseded to 7076934YP)

Note: Was 79315

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7079267

LOCKWASHER, 5/16 HEAVY SPRING
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7090188

WASHER, FLAT, STD, STEEL, 5/16"
(Superseded to 703350)

Note: Was 79263

$4.49

$

In Stock, only 3 left!

0

14

Snapper 7079963

DECAL "TRANSMISSION FLUID"
(Superseded to 7079963YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7062419

CLAMP,NYLON HOSE, 3/4"

$

$

Currently unavailable
