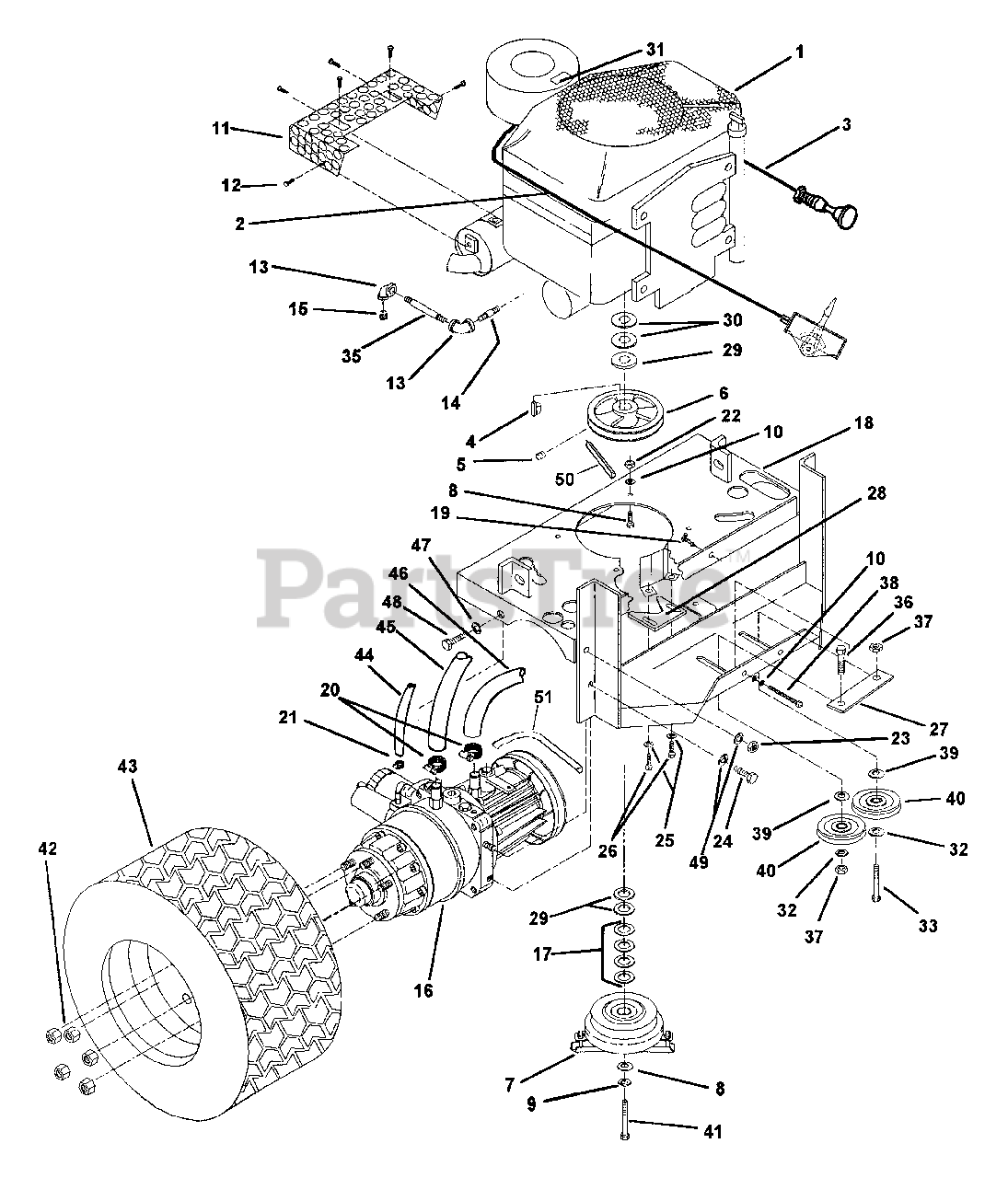

ZU 2014 K (80455) - Snapper Zero-Turn Mower, Unistat Drive, 20hp Drive Train Assembly Parts Diagram

Zero-Turn Mower, Unistat Drive, 20hp

Drive Train Assembly Parts Diagram

  • Title

1

* ENGINE, 20 HP KOHLER, VERTICAL SHAFT

$

$

Not available

2

Snapper 7079800

CABLE, THROTTLE

$

$

Not available

3

Snapper 7079801

CABLE, CHOKE

$

$

Not available

4

Snapper 7091978

KEY, WOODRUF, 1/4" X 3/4"
(Superseded to 7091978YP)

Note: Was 79159

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7079823

SET SCREW, SOCKET HD., 5/16-18 X 3/8"
(Superseded to 7079823YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7079423

PULLEY, 1-1/8" BORE
(Superseded to 7079423YP)

$98.99

$

Usually ships in 2-12 days

0

7

Snapper 7079446

CLUTCH, ELECTRIC, 1" BORE
(Superseded to 7079446YP)

$542.99

$

Usually ships in 2-12 days

0

8

Snapper 7091609

CAP SCREW HH 5/16-24 X 1-1/2 GR 5
(Superseded to 7091609SM)

Note: Was 79325

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7091301

LOCK WASHER, 7/16" SPLIT SPRING
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7079267

LOCK WASHER, 5/16" SPLIT SPRING
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7062052

MUFFLER GUARD

$

$

Not available

12

Snapper 7079424

SCREW, SHEET METAL, #8-32 X 1/2"
(Superseded to 7079424YP)

$2.99

$

Usually ships in 2-12 days

0

13

Snapper 7079210

ELBOW, 3/8, 90, SCH 40 CAST IRON

$

$

Currently unavailable

14

Snapper 7062357

NIPPLE 3/8" CLOSE SCH. 40 BLACK

$

$

Currently unavailable

15

Snapper 7079367

PLUG, PIPE 3/8"

$

$

Not available

16

UNISTAT TRANSMISSION

Note: (R.H. SHOWN); See "Unistat Transmission"

$

$

Not available

17

Snapper 7079020

WASHER, 10 GA. 1" BORE

$

$

Not available

18

Snapper 7062328

MOTOR MOUNT WELDMENT

$

$

Currently unavailable

19

Snapper 7079864

BLIND HOLE KURLY
(Superseded to 7079864YP)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7079952

CLAMP, HOSE 1/2" STAINLESS

$

$

Currently unavailable

21

Snapper 7015617

CLAMP, 1/4 HH SCREW 1/4 MI

Note: Was 79569

$

$

Currently unavailable

22

Snapper 7090789

NUT, 5/16-24 UNF, GR. 5 PLATED

Note: Was 79324

$

$

Not available

23

Snapper 7079936

NUT, HEX HEAD, 1/2 13 UNC 2B
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

24

Snapper 7062038

CAP SCREW, HEX HEAD, 1/2-13 X 1-1/4 LG

$

$

Currently unavailable

25

Snapper 7091294

WASHER, FLAT, STD, STEEL, 1/4"
(Superseded to 703332)

Note: Was 79410

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7091495

CAP SCREW, HH 1/4-20 X 3/4" GR. 5
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 7

0

27

Snapper 7062379

PLATE, STAGGER

$

$

Not available

28

Snapper 7062358

PLATE, CLUTCH STOP

$

$

Not available

29

Snapper 7079427

WASHER, 16 GA. 1-1/8" I.D.

$

$

Currently unavailable

30

Snapper 7079426

WASHER, 10 GA. 1-3/16 ID

$

$

Currently unavailable

31

Snapper 7079237

DECAL," PERIODICALLY CLEAN
(Superseded to 7079237YP)

$5.99

$

Usually ships in 2-12 days

0

32

Snapper 7079306

WASHER, 1/2" NOM, TYPE B NARROW

$

$

Not available

33

Snapper 7090543

CAP SCREW, HEX HD., 1/2-13 X 2 GR.5
(Superseded to 703817)

Note: Was 79276

$5.99

$

Usually ships in 2-12 days

0

35

Snapper 7079425

NIPPLE, 3/8" X 4" SCH 40

$

$

Currently unavailable

36

Snapper 7079404

STUD, ADJUSTABLE

$

$

Not available

37

Snapper 7079277

LOCKNUT, 1/2-13, NYLOC

$

$

Not available

38

Snapper 7079584

CAPSCREW, HX, 5/16-18 X 3",G2 FL-TH
(Superseded to 7079584YP)

$6.49

$

Usually ships in 2-12 days

0

39

Snapper 7090250

WASHER, FLAT, STD, 1/2"
(Superseded to 704123)

Note: Was 79264

$4.49

$

In Stock, only 3 left!

0

40

Snapper 7079166

PULLEY, V-IDLER, 4.48 O.D.
(Superseded to 7079166YP)

$59.99

$

Usually ships in 2-12 days

0

41

Snapper 7062263

CAP SCREW, 7/16-20 X 3" GR. 5
(Superseded to 7062263YP)

$3.99

$

In Stock, only 1 left!

0

42

Snapper 7062359

WHEEL LUG NUT: 7/16-20, PLTD.

$

$

Not available

43

Snapper 7062380

TIRE/WHEEL ASSEMBLY, 23-9.5 X 12
(Superseded to 7062380YP)

$319.99

$

Usually ships in 2-12 days

0

44

Snapper 7062331

HOSE, 3/8 ID X 15" LG. R.H. SIDE

$

$

Currently unavailable

44

Snapper 7062332

HOSE, 3/8 ID X 38" LG. L.H. SIDE

$

$

Currently unavailable

45

Snapper 7062360

HOSE, 5/8 I.D. X 12" LG

$

$

Currently unavailable

46

Snapper 7062361

HOSE, 5/8 I.D. X 7" LG

$

$

Currently unavailable

47

Snapper 7079943

LOCK WASHER, SPLIT SPRING: 5/8" X-H

$

$

Currently unavailable

48

Snapper 7062381

CAP SCREW, 5/8-11 X 1-1/2

$

$

Currently unavailable

49

Snapper 7090254

LOCKWASHER, SPLIT SPRING, 1/2"
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

50

Snapper 7062321

BELT, KEVLAR, AK-42 (PRIMARY DRIVE)
(Superseded to 7062321YP)

$49.99

$

Usually ships in 2-12 days

0

51

Snapper 7062322

BELT, KEVLAR, AK-75 (SECONDARY DRIVE)
(Superseded to 7062322YP)

$39.99

$

Usually ships in 2-12 days

0
