ZU 2014 K (80455) - Snapper Zero-Turn Mower, Unistat Drive, 20hp Double Groove Idler Assembly Parts Diagram

Zero-Turn Mower, Unistat Drive, 20hp

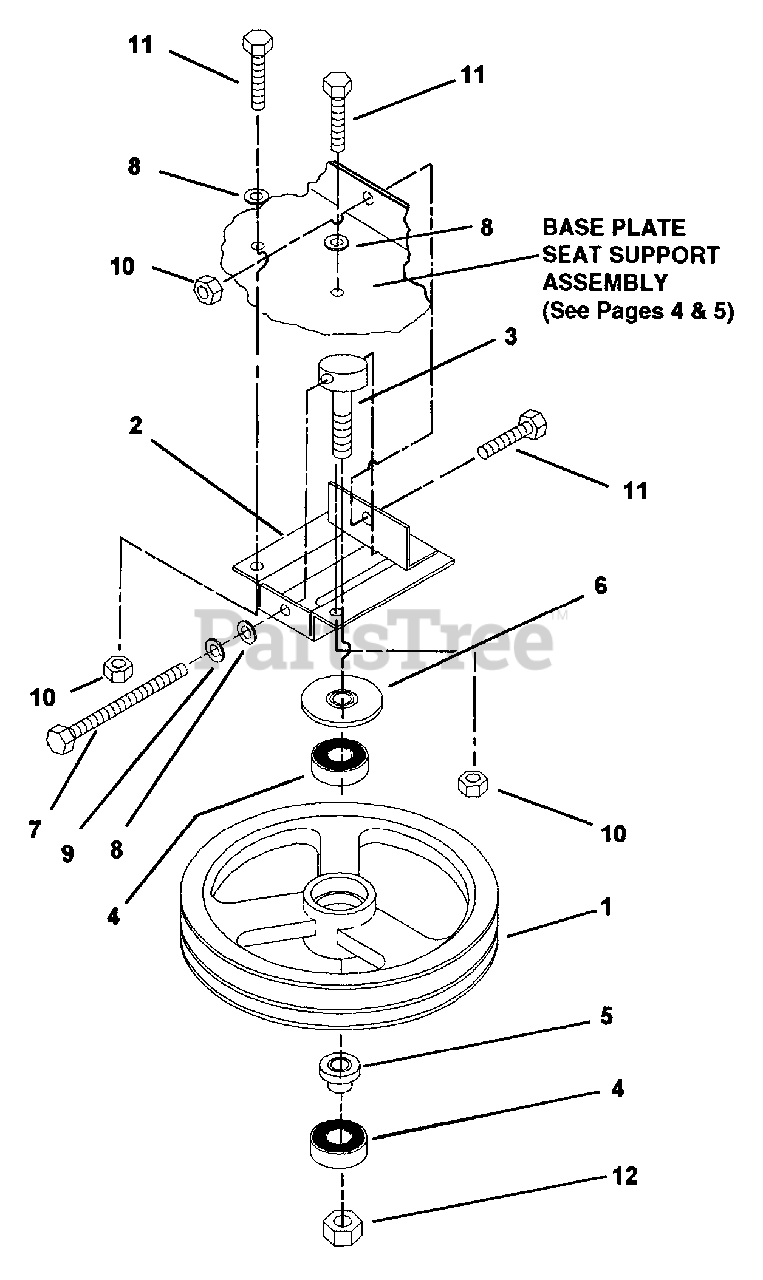

Double Groove Idler Assembly Parts Diagram

  • Title
1

Snapper 7062340

IDLER, TWO GROOVE. 8-3/4
(Superseded to 7062340YP)

$165.99

$

Usually ships in 2-12 days

0

2

Snapper 7062341

IDLER, MTG BRACKET
(Superseded to 7062341YP)

$25.99

$

Usually ships in 2-12 days

0

3

Snapper 7062342

IDLER, MTG STUD
(Superseded to 7062342YP)

$84.99

$

Usually ships in 2-12 days

0

4

Snapper 7062035

BEARING, #6203-2RS
(Superseded to 7062035YP)

$10.99

$

In Stock, only 1 left!

0

5

Snapper 7062037

IDLER STAND
(Superseded to 7062037YP)

$7.49

$

Usually ships in 2-12 days

0

6

Snapper 7062343

IDLER, MTG SPACER

$

$

Not available

7

Snapper 7079403

HEX TAP BOLT 5/16 X 4-1/2
(Superseded to 7079403YP)

$2.49

$

Usually ships in 2-12 days

0

8

Snapper 7090188

WASHER, FLAT STD, STEEL 5/16
(Superseded to 703350)

Note: Was 79263

$4.49

$

In Stock, only 1 left!

0

9

Snapper 7079267

LOCK WASHER, 5/16 HEAVY SPRING
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7091298

NUT, HEX 5/16-18 NYLOC
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7076934

CAP SCREW, HH 5/16-18 X 3/4 GR. 5
(Superseded to 7076934YP)

Note: Was 79315

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7079277

LOCKNUT, 1/2/-13; NYLOC

$

$

Not available
