ZU 2014 K (80455) - Snapper Zero-Turn Mower, Unistat Drive, 20hp Caster Wheel Assembly Parts Diagram

Zero-Turn Mower, Unistat Drive, 20hp

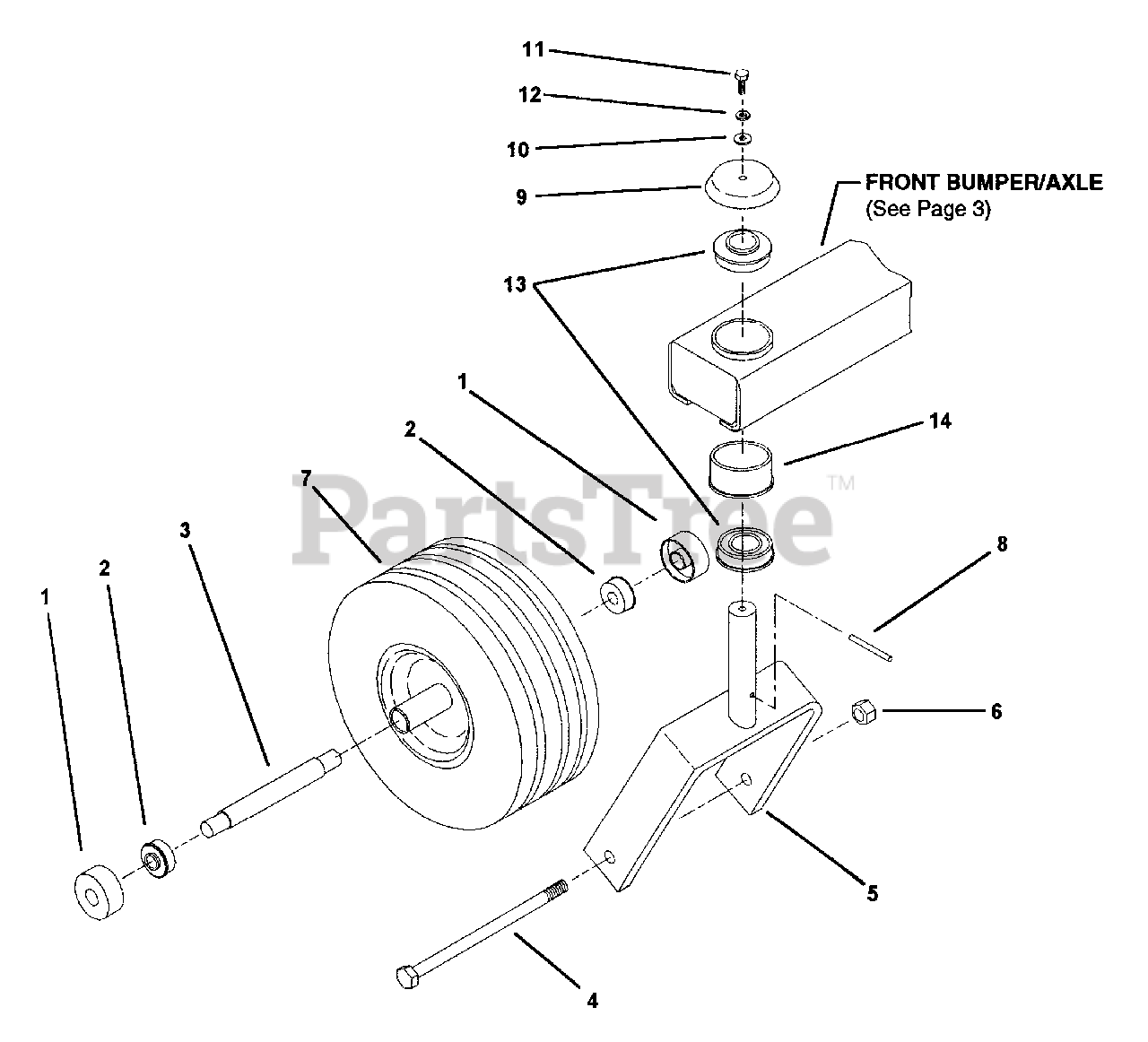

Caster Wheel Assembly Parts Diagram

  • Title

1

Snapper 7079357

SHIELD, BEARING
(Superseded to 7079357YP)

$43.99

$

Usually ships in 2-12 days

0

2

Snapper 7079339

BEARING, 5/8 I.D. X 1-3/8 O.D.
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

3

Snapper 7079358

SPACER, BEARING

$

$

Not available

4

Snapper 7079363

BOLT, 1/2-13 X 8" GR.5
(Superseded to 7079363YP)

$6.99

$

Usually ships in 2-12 days

0

5

Snapper 7062323

CASTER WELDMENT, UNI JOYSTICK
(Superseded to 7062323YP)

$193.99

$

Usually ships in 2-12 days

0

6

Snapper 7079262

NUT, 1/2-13, STOVER
(Superseded to 7079262YP)

$2.99

$

Usually ships in 2-12 days

0

7

Snapper 7079171

TIRE, 13X5-6, ON WHEEL, (RIBBED TREAD)

Note: Was 62315

$

$

Currently unavailable

8

Snapper 7079285

PIN, SPIRAL, 3/16 X 2 HEAVY DUTY
(Superseded to 7079285YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7079352

CAP, BEARING

$

$

Not available

10

Snapper 7091294

WASHER, FLAT STD. 1/4"
(Superseded to 703332)

Note: Was 79410

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7090072

BOLT, 1/4-20 X 5/8" GR.5
(Superseded to 001X38MA)

Note: Was 79344

$4.49

$

In Stock, Qty 18

0

12

Snapper 7090052

LOCK WASHER, 1/4" HEAVY SPRING
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

13

Snapper 7079331

BEARING, SPD SF-16-32 W/O COLLAR
(Superseded to 1711534SM)

$46.99

$

Usually ships in 2-12 days

0

14

Snapper 7062324

SPACER, CASTER BEARING

$

$

Not available
