ZU 2003 K (80165) - Snapper Zero-Turn Mower, Unistat Drive, 20hp Seat Parts, ZU2013K Parts Diagram

Zero-Turn Mower, Unistat Drive, 20hp

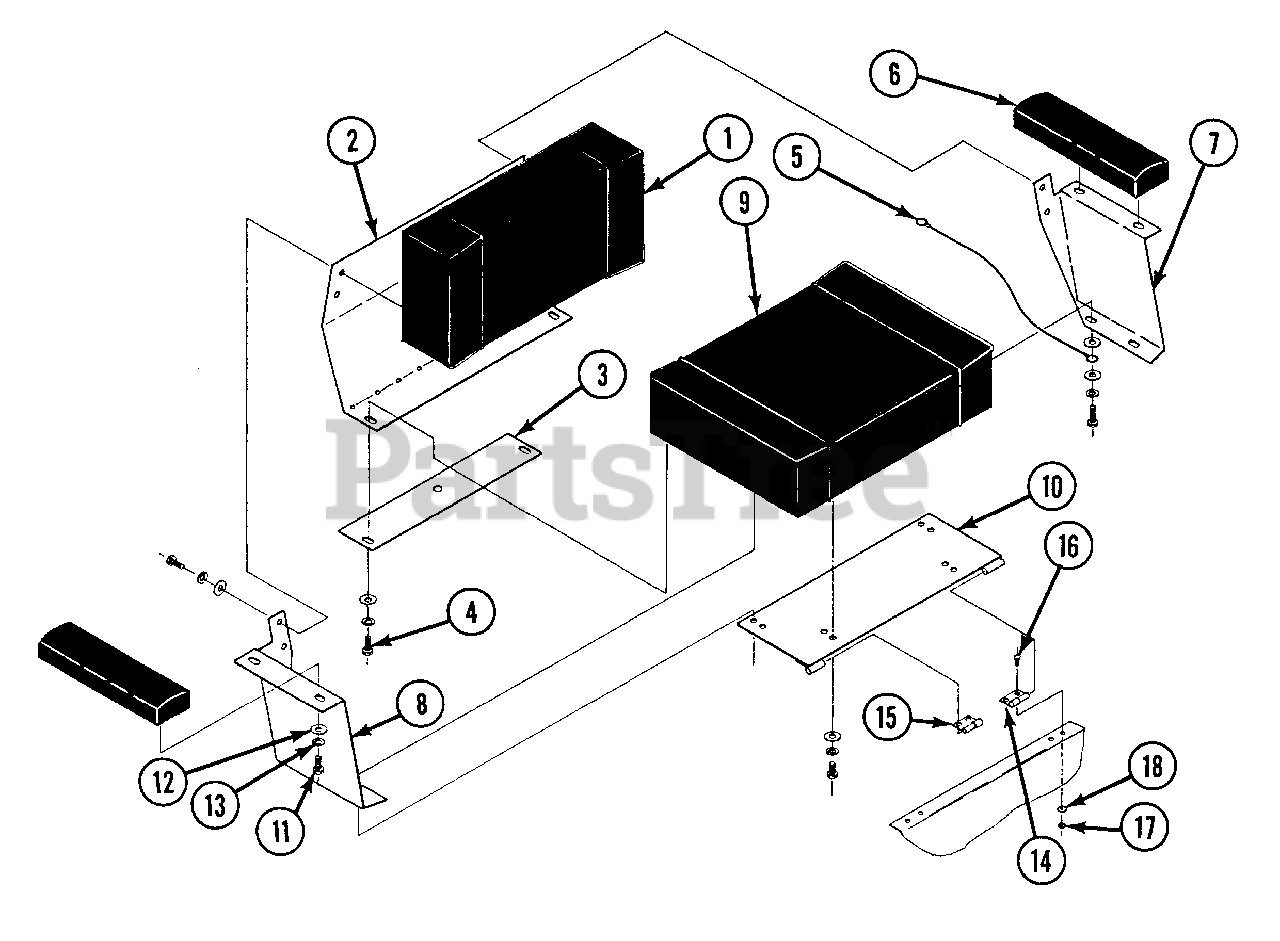

Seat Parts, ZU2013K Parts Diagram

  • Title

Snapper 7062136

DELUXE SEAT ASSEMBLY (RED)

$

$

Currently unavailable

1

Snapper 7079713

BACK CUSHION ASSEMBLY

Note: Was 79002

$

$

Not available

2

Snapper 7062137

BACK REST COVER

$

$

Currently unavailable

3

Snapper 7079109

ACTUATOR WELDMENT, SEAT SWITCH
(Superseded to 7079109YP)

$68.99

$

Usually ships in 2-12 days

0

4

Snapper 7027168

CAPSCREW, HX HD: 5/16-18 X 1 GR 5
(Superseded to 703585)

Note: Was 90636

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 7062105

CABLE ASSEMBLY, SEAT

$

$

Currently unavailable

6

Snapper 7079004

ARM CUSHION ASSEMBLY

Note: Was 79502

$

$

Not available

7

Snapper 7079006

ARM SUPPORT LEFT

$

$

Currently unavailable

8

Snapper 7079007

ARM SUPPORT RIGHT

$

$

Currently unavailable

9

Snapper 7079003

SEAT CUSHION ASSEMBLY

$

$

Not available

10

Snapper 7062154

SEAT HINGE WELDMENT

$

$

Currently unavailable

11

Snapper 7076934

CAPSCREW, HX HD: 5/16-18 X 3/4 GR 5
(Superseded to 7076934YP)

Note: Was 79315

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7090188

FLAT WASHER: 5/16
(Superseded to 703350)

Note: Was 79263

$4.49

$

In Stock, only 1 left!

0

13

Snapper 7079267

LOCKWASHER, SPLT SPRNG: 5/16
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7079928

SEAT HINGE, LH
(Superseded to 7079928YP)

$13.99

$

Usually ships in 2-12 days

0

15

Snapper 7079927

SEAT HINGE, RH

$

$

Currently unavailable

16

Snapper 7090072

CAPSCREW, HX HD: 1/4-20 X 5/8 GR 5
(Superseded to 001X38MA)

Note: Was 79344

$4.49

$

In Stock, Qty 18

0

17

Snapper 7090052

LOCKNUT, NYLOCK: 1/4-20
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

18

Snapper 7091294

FLAT WASHER: 1/4
(Superseded to 703332)

Note: Was 79410

$4.49

$

In Stock, Qty 20+

0
