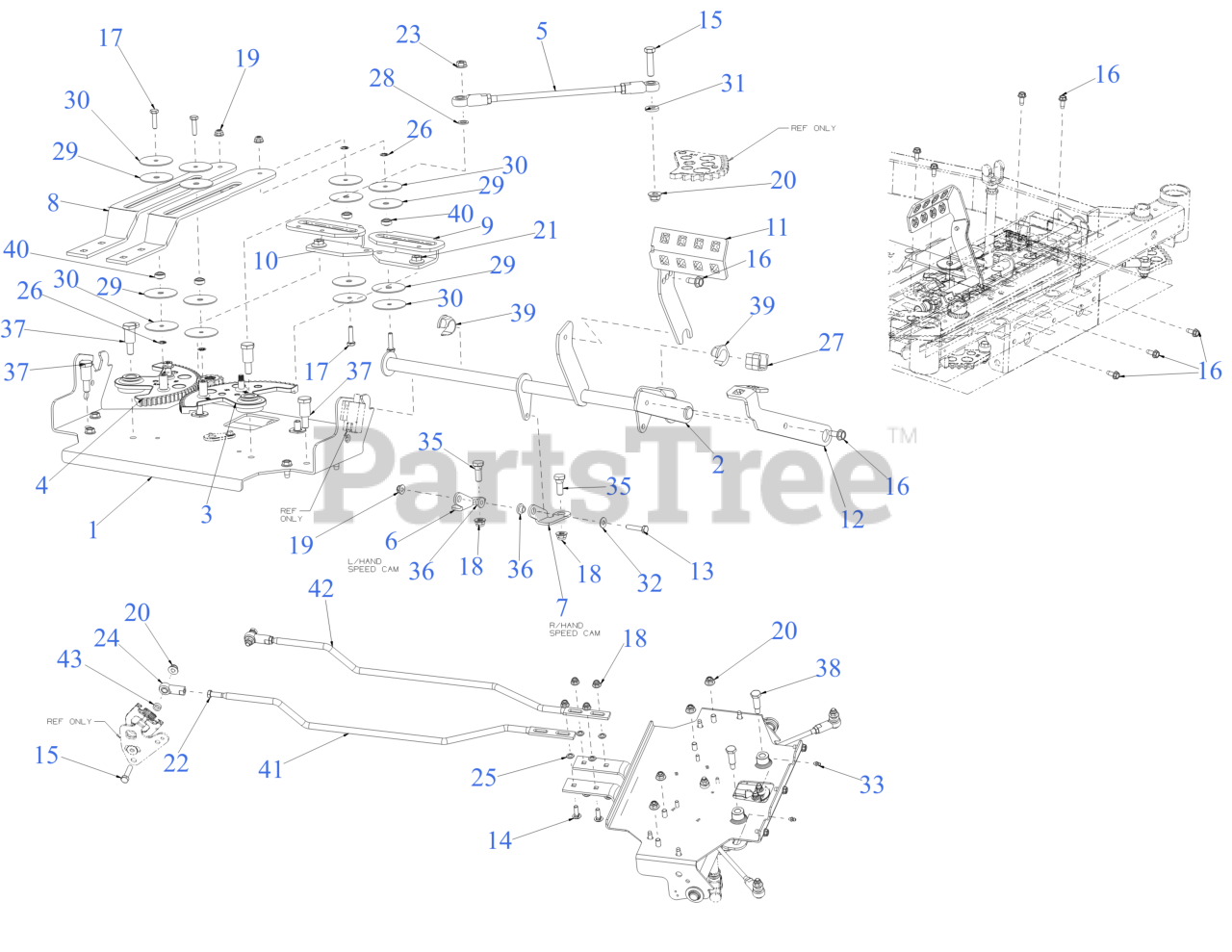

ZTXS5-60 KH FAB (47RTCAB8A10) - Cub Cadet Ultima 60" Zero-Turn Mower, Fab Deck, Kohler (2023) Steering Parts Diagram

Ultima 60" Zero-Turn Mower, Fab Deck, Kohler

Steering Parts Diagram

  • Title
1

Cub Cadet 603E08833B

STEERING SUPPORT PLATE

$246.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603E08838A

DRIVE PEDAL SHAFT

$97.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 917-05039

STEERING GEAR ASSEMBLY (RH)

$228.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 741-05047

FLANGE BUSHING

Note: (Not Shown)

$3.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 917-05040

STEERING GEAR ASSEMBLY (LH)

$105.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 741-05047

FLANGE BUSHING

Note: (Not Shown)

$3.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 747-11668

STEERING TIE ROD

$16.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 723-04080

BALL JOINT

$41.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-0711

HEX JAM NUT 3/8X24

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 703-08604A

PEDAL SHAFT BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$10.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08606A

PEDAL SHAFT BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-10404

CONTROL LINK
(Superseded to 703Z10404A)

$25.99

$

In Stock, only 1 left!

0

9

Cub Cadet 703-27432

SPEED CAM PLATE (RH)

$32.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-27449

SPEED CAM PLATE (LH)

$32.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-27969

DRIVE PEDAL (FORWARD)

Note: *CHOOSE COLOR WHEN ORDERING*

$45.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-27970

DRIVE PEDAL (REVERSE)

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Not available

13

Cub Cadet 710-05105

SCREW 1/4-20 x 1.0

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0106

HEX SCREW 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

14

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0520

SCREW 3/8-16 x 1.50

$4.49

$

In Stock, Qty 5

0

16

Cub Cadet 710-1260A

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3220

SCREW 1/4-20X1.0 GR5

$3.99

$

In Stock, Qty 10

0

18

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0711

HEX JAM NUT 3/8X24

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 723-04080

BALL JOINT

$41.99

$

Usually ships in 3-6 days

0

25

$6.99

$

In Stock, only 2 left!

0

26

Cub Cadet 726-0233

RETAINER-BOLT .25ID x .50OD

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 731-09629A

SPACER-LIFT SHAFT

$4.49

$

In Stock, only 1 left!

0

28

Cub Cadet 736-0140

FLAT WASHER

$7.49

$

In Stock, Qty 6

0

29

Cub Cadet 736-04630

FLAT WASHER

$6.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-04631

FLAT WASHER

$6.49

$

In Stock, only 2 left!

0

31

Cub Cadet 736-3010

FLAT WASHER

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-3020

FLAT WASHER .271:.630:.065

Note: If Equipped

$6.99

$

In Stock, Qty 9

0

33

Cub Cadet 737-04345

GREASE ZERT 1/4-28

$4.99

$

In Stock, Qty 6

0

35

Cub Cadet 738-0296

SHOULDER SCREW .437

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 738-04483

SHOULDER SPACER

$3.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 738-05046

SHOULDER SCREW .625 x .875 x 3/18

$4.49

$

In Stock, only 2 left!

0

38

Cub Cadet 738-1014

SHOULDER SCREW .50

$4.49

$

In Stock, only 1 left!

0

39

Cub Cadet 741-04504

HEX FLANGE SPLIT BEARING

$8.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 741-05209

BALL BEARING .25 x .625

$10.99

$

In Stock, only 1 left!

0

41

Cub Cadet 747-11738

HYDRO LINK ROD (LH)

$31.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 747-11739

HYDRO LINK ROD (RH)

$31.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 950-0535

SPACER-.380 ID x .625 OD x .227

$4.49

$

In Stock, Qty 20+

0
