ZTXS5-60 KH FAB (47RTCAB8A10) - Cub Cadet Ultima 60" Zero-Turn Mower, Fab Deck, Kohler (2023) Controls Parts Diagram

Ultima 60" Zero-Turn Mower, Fab Deck, Kohler

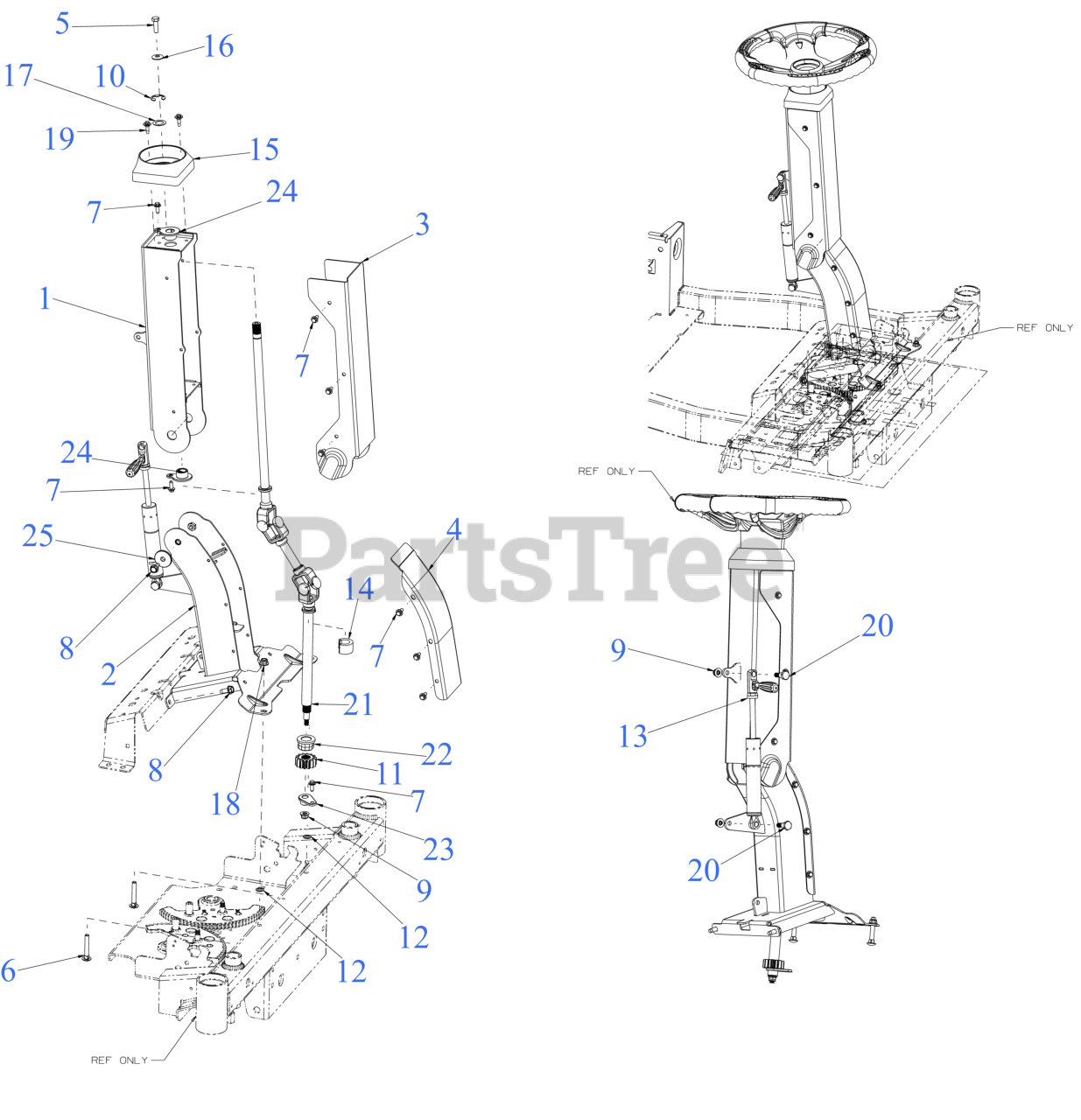

Controls Parts Diagram

  • Title
1

Cub Cadet 603-08836

STEERING COLUMN (UPPER)
(Superseded to 603-08836B)

Note: *CHOOSE COLOR WHEN ORDERING*

$102.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-08842A

STEERING COLUMN (LOWER)

Note: *CHOOSE COLOR WHEN ORDERING*

$181.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-28088

COLUMN COVER (UPPER)

Note: *CHOOSE COLOR WHEN ORDERING*

$42.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-28089

COLUMN COVER (LOWER)

Note: *CHOOSE COLOR WHEN ORDERING*

$33.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0117A

HEX HEAD CAP SCREW 5/16-24 x 1.00 GR5

$5.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-04532

CARRIAGE BOLT 5/16-18 x 2.00 GR5

$6.49

$

In Stock, Qty 5

0

7

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-1260A

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 717-06858

STEERING GEAR 14T

$12.99

$

Usually ships in 3-6 days

0

12

$6.99

$

In Stock, only 2 left!

0

13

Cub Cadet 727-05846

STEERING TILT CYLINDER

$103.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-05297

SPACER: .76ID x .75

$9.99

$

In Stock, only 1 left!

0

15

Cub Cadet 731-27451

STEERING COLUMN CAP

$7.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0242

BELL WASHER .337 X.867 x .057

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 936-0336

FLAT WASHER

$4.49

$

In Stock, Qty 7

0

19

Cub Cadet 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet 738-07336

SHOULDER SCREW .393 X .505 LG

$5.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 738P07338

STEERING SHAFT

$162.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 741-04499

HEX FLANGE BEARING

$12.99

$

In Stock, only 2 left!

0

23

Cub Cadet 741-07140

FLANGE BEARING

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 741-07168

FLANGE BEARING .628 ID

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 748-06928

SHOULDER SPACER

$2.49

$

Usually ships in 3-6 days

0
