ZTXS4-48 KH FAB (47RSCAB6A10) - Cub Cadet Ultima 48" Zero-Turn Mower, Fab Deck, Kohler (2023) Frame Parts Diagram

Ultima 48" Zero-Turn Mower, Fab Deck, Kohler

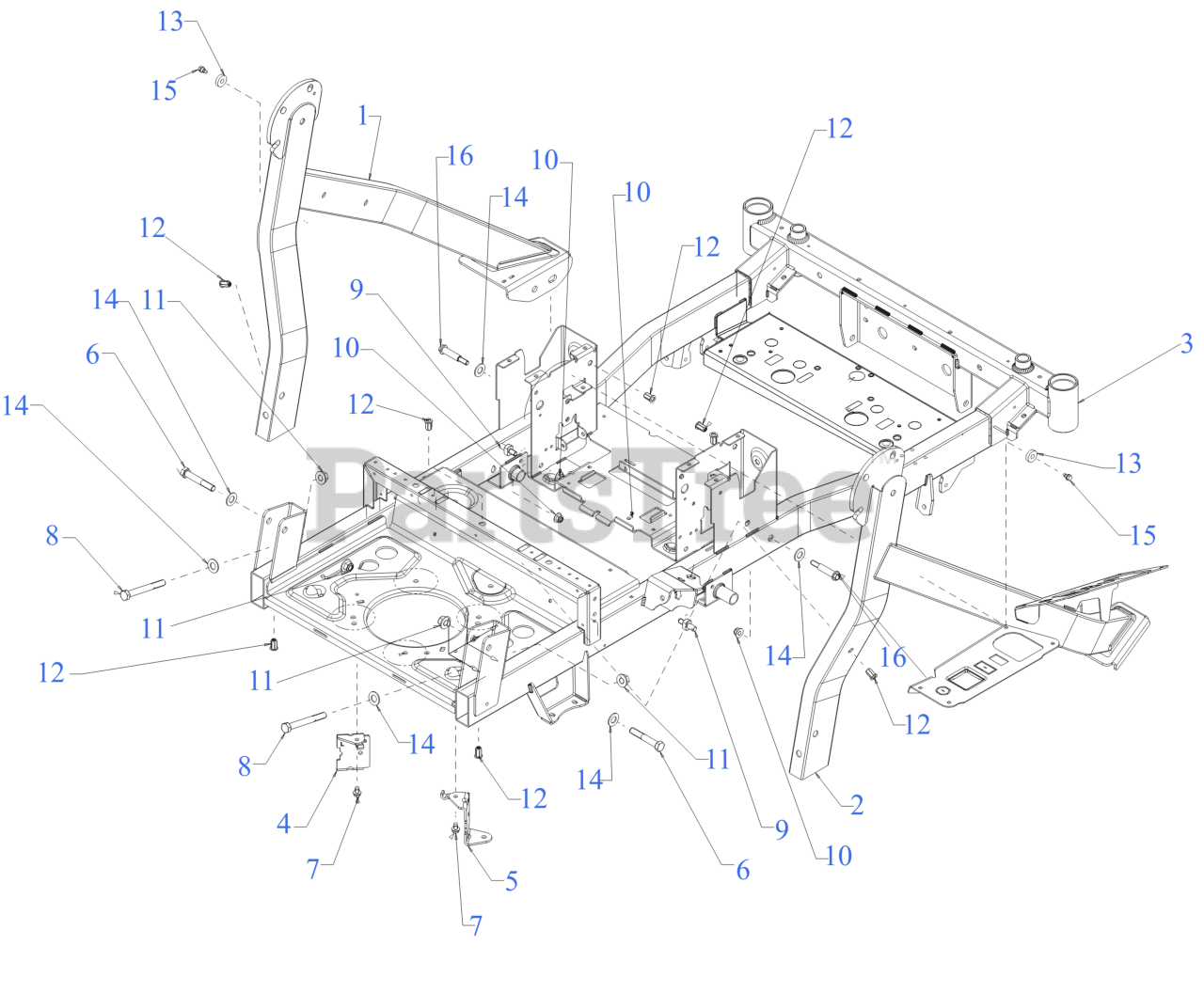

Frame Parts Diagram

  • Title

1

Cub Cadet 603-08140

UPPER FRAME (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$298.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-08835

FRAME (UPPER) (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$408.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-08839

FRAME

Note: *CHOOSE COLOR WHEN ORDERING*

$1290.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703E17281A

TRANSMISSION SUPPORT (LH)

$16.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703E17301A

TRANSMISSION SUPPORT (RH)

$15.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0182A

SCREW-HEX 1/2-13 x 3.00

$7.99

$

In Stock, only 2 left!

0

7

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

8

Cub Cadet 710-09894

HEX CAP SCREW 1/2-13x4.25 GR5

$8.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 711-09802

SHOULDER STUD

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-04065

NUT

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 728-05043

NUT RIVET 5/16-18

$5.49

$

In Stock, only 2 left!

0

13

Cub Cadet 735-06418

NEOPRENE WASHER BUMPER

$2.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 736-0626

FLAT WASHER

$9.49

$

In Stock, only 2 left!

0

15

Cub Cadet 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 14

0

16

Cub Cadet 738-06314

SHOULDER SCREW .50x1.75 3/8-16

$6.99

$

Usually ships in 3-6 days

0
