ZTX6-54 KW FAB (47RIAHA7010) - Cub Cadet Ultima 54" Zero-Turn Mower, Fab Deck, Kawasaki (2023) Discharge Chute Parts Diagram

Ultima 54" Zero-Turn Mower, Fab Deck, Kawasaki

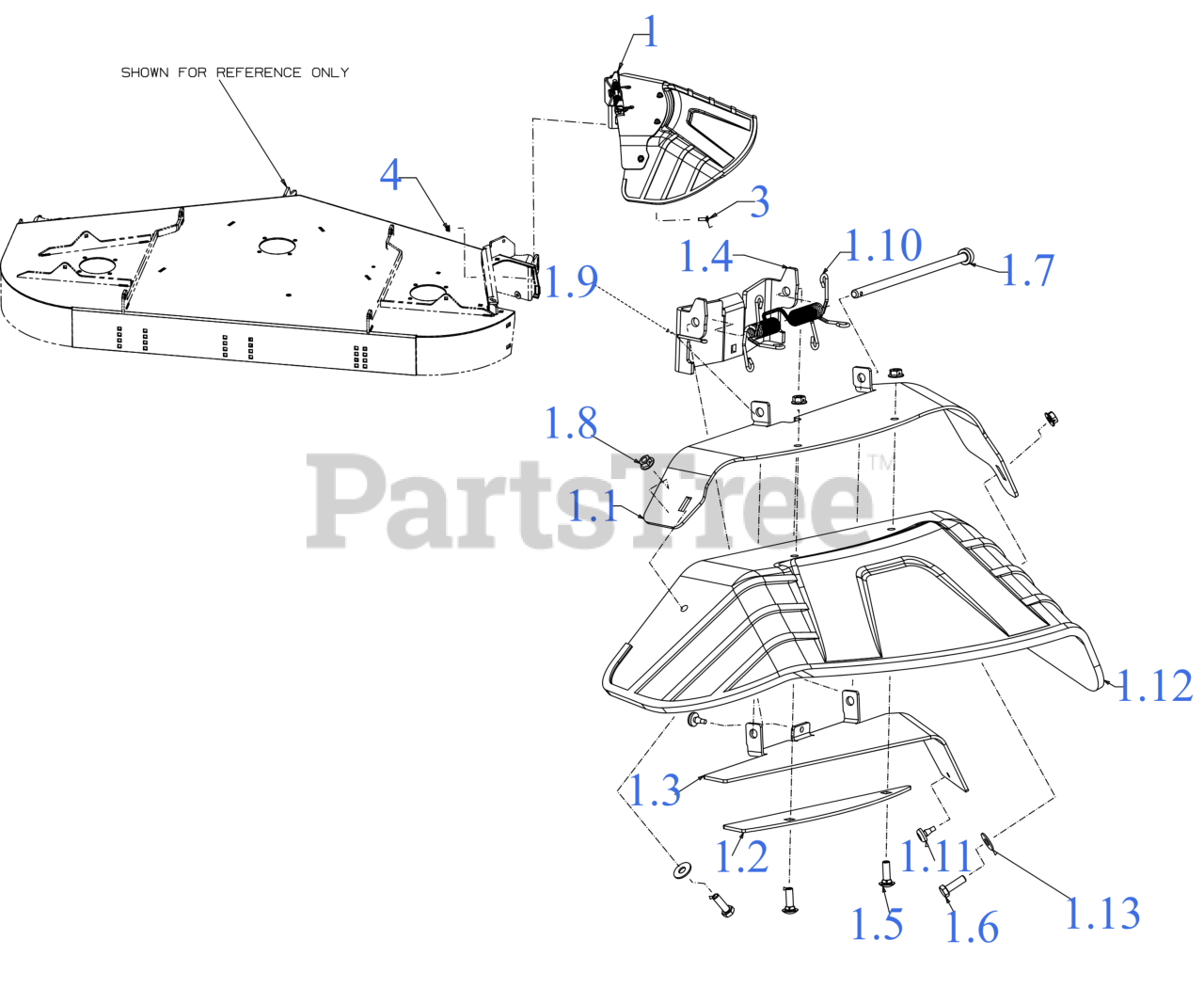

Discharge Chute Parts Diagram

  • Title

1

Cub Cadet 631P07159

DISCHARGE CHUTE ASSEMBLY
(Superseded to 631P07159A)

$242.99

$

Usually ships in 3-6 days

0

1.1

Cub Cadet 703E20786

CHUTE BRACKET (TOP)

$

$

Not available

1.2

Cub Cadet 703E20846

CHUTE BRACKET (BOTTOM)

$12.99

$

Usually ships in 3-6 days

0

1.3

Cub Cadet 703E21425

CHUTE BRACKET (OPENING)

$37.99

$

Usually ships in 3-6 days

0

1.4

Cub Cadet 703E22806

CHUTE BRACKET (MOUTING)

$26.99

$

Usually ships in 3-6 days

0

1.5

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

1.6

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

1.7

Cub Cadet 711-09482

HINGE PIN .375 x 9.0

$12.99

$

Usually ships in 3-6 days

0

1.8

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

1.9

Cub Cadet 714-0470

COTTER PIN

$4.49

$

In Stock, Qty 20+

0

1.10

Cub Cadet 732-07586

TORSION SPRING

$5.49

$

Usually ships in 3-6 days

0

1.11

Cub Cadet 735-0199A

RUBBER BUMPER

$7.99

$

In Stock, only 1 left!

0

1.12

Cub Cadet 735-06238

FIBER FORMED CHUTE
(Superseded to 735-06238A)

$121.99

$

In Stock, only 1 left!

0

1.13

Cub Cadet 736-0159

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0
