ZTX5-60 KW FAB (47AIAAA8010) - Cub Cadet Ultima 60" Zero-Turn Mower, Fab Deck, Kawasaki (2020) Deck Lift Parts Diagram

Ultima 60" Zero-Turn Mower, Fab Deck, Kawasaki

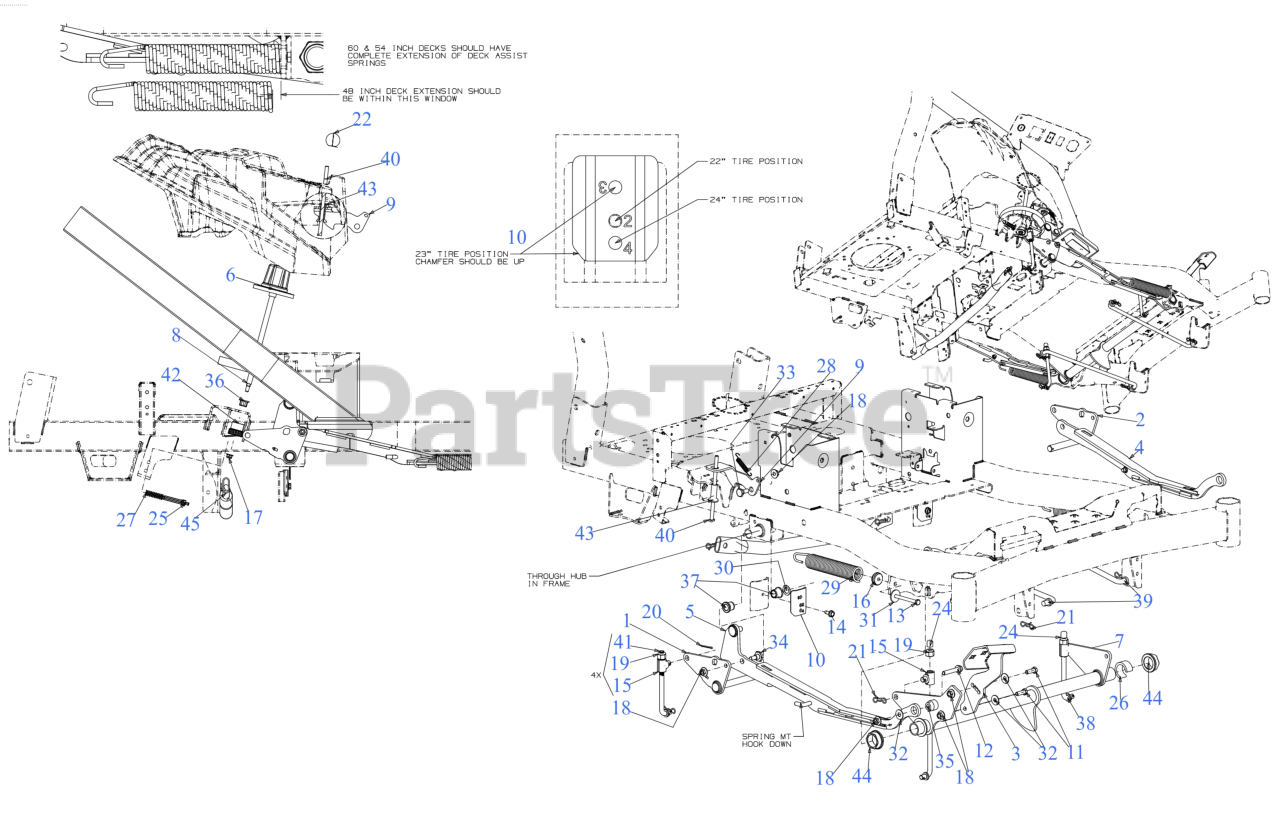

Deck Lift Parts Diagram

  • Title

1

Cub Cadet 603E06379

BELLCRANK BRACKET (RH)

$45.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603E06380

BELLCRANK BRACKET (LH)

$48.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-06599

DECK LIFT PEDAL

Note: *CHOOSE COLOR WHEN ORDERING*

$44.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603E06619

LIFT LINK (LH)

$121.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603E06639

LIFT LINK (RH)
(Superseded to 603E06639A)

$120.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 631P06840A

DECK HEIGHT ADJUSTMENT KNOB

$12.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 647E05333

LIFT TUBE (FRONT)

$

$

Not available

8

Cub Cadet 647-05353

DECK HEIGHT ADJUSTMENT ROD
(Superseded to 647Z05353B)

$51.99

$

In Stock, only 1 left!

0

9

Cub Cadet 703E19945

TRAVEL LOCK PLATE

$19.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703E22844

UPSTOP BRACKET

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-06093

SCREW 3/8-16 x 2.00 GR5

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-1207

SCREW 5/16-18 x 3.50 GR5

$6.99

$

In Stock, only 4 left!

0

14

Cub Cadet 710-1260A

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 711-06143A

LIFT ROD FERRULE

$13.99

$

In Stock, Qty 20+

0

16

Cub Cadet 711-09782

LIFT SPRING INSERT

$12.99

$

In Stock, only 1 left!

0

17

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 16

0

19

Cub Cadet 712-3083

HEX LOCK NUT NYLON

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 714-0470

COTTER PIN

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 714-05005

BOW TIE COTTER PIN

$4.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 720-05110

BALL KNOB

$22.99

$

In Stock, only 4 left!

0

24

Cub Cadet 726-05009

LIFT ROD END CAP

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 731-16491A

DETENT PLUNGER

$3.99

$

In Stock, Qty 7

0

26

Cub Cadet 731-18771

LIFT TUBE SPACER

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 932-0306A

COMPRESSION SPRING .531 OD 1.75 LG

$8.49

$

In Stock, only 4 left!

0

28

Cub Cadet 732-05150A

EXTENSION SPRING 2.675"

$4.49

$

In Stock, Qty 11

0

29

Cub Cadet 732-07288A

EXTENSION SPRING

$25.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-0337

FLAT WASHER

$4.49

$

In Stock, Qty 9

0

31

Cub Cadet 736-0343

WASHER-5/16 x 1.25X 1.27

$4.49

$

In Stock, Qty 7

0

32

Cub Cadet 736-04183

WASHER-.395 x 1.0 x .62

$4.99

$

In Stock, only 1 left!

0

33

Cub Cadet 738-0380

SHOULDER SCREW

$7.99

$

In Stock, only 1 left!

0

34

Cub Cadet 738-04266

SHOULDER SCREW .50 x .385

$6.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 738-06114

SHOLUDER SPACER

$6.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 741-04108

HEX FLANGE BEARING .506ID x .590LG

$5.99

$

In Stock, Qty 12

0

37

Cub Cadet 741-05047

FLANGE BUSHING

$3.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 747-07490

DECK LIFT ROD 6.875"

$25.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 747-08670

DECK CONTROL ROD

$34.99

$

In Stock, only 1 left!

0

40

Cub Cadet 747-09150

TRAVEL LOCK ROD

$17.99

$

In Stock, only 1 left!

0

41

Cub Cadet 747-10650

DECK LIFT ROD 6.562"

$39.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 748-05824

DECK HEIGHT DETENT HUB

$9.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 748-06304

LOCK ROD SLEEVE SPACER

$3.49

$

In Stock, only 1 left!

0

44

Cub Cadet 948-3051

FLANGE BEARING
(Superseded to 948-3051A)

$26.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 749E07974

DECK STABILIZER TUBE

$52.99

$

Usually ships in 3-6 days

0
