ZTX4-60 KH FAB (47BSAAA8A10) - Cub Cadet Ultima 60" Zero-Turn Mower, Fab Deck, Kohler (2023) Deck Parts Diagram

Ultima 60" Zero-Turn Mower, Fab Deck, Kohler

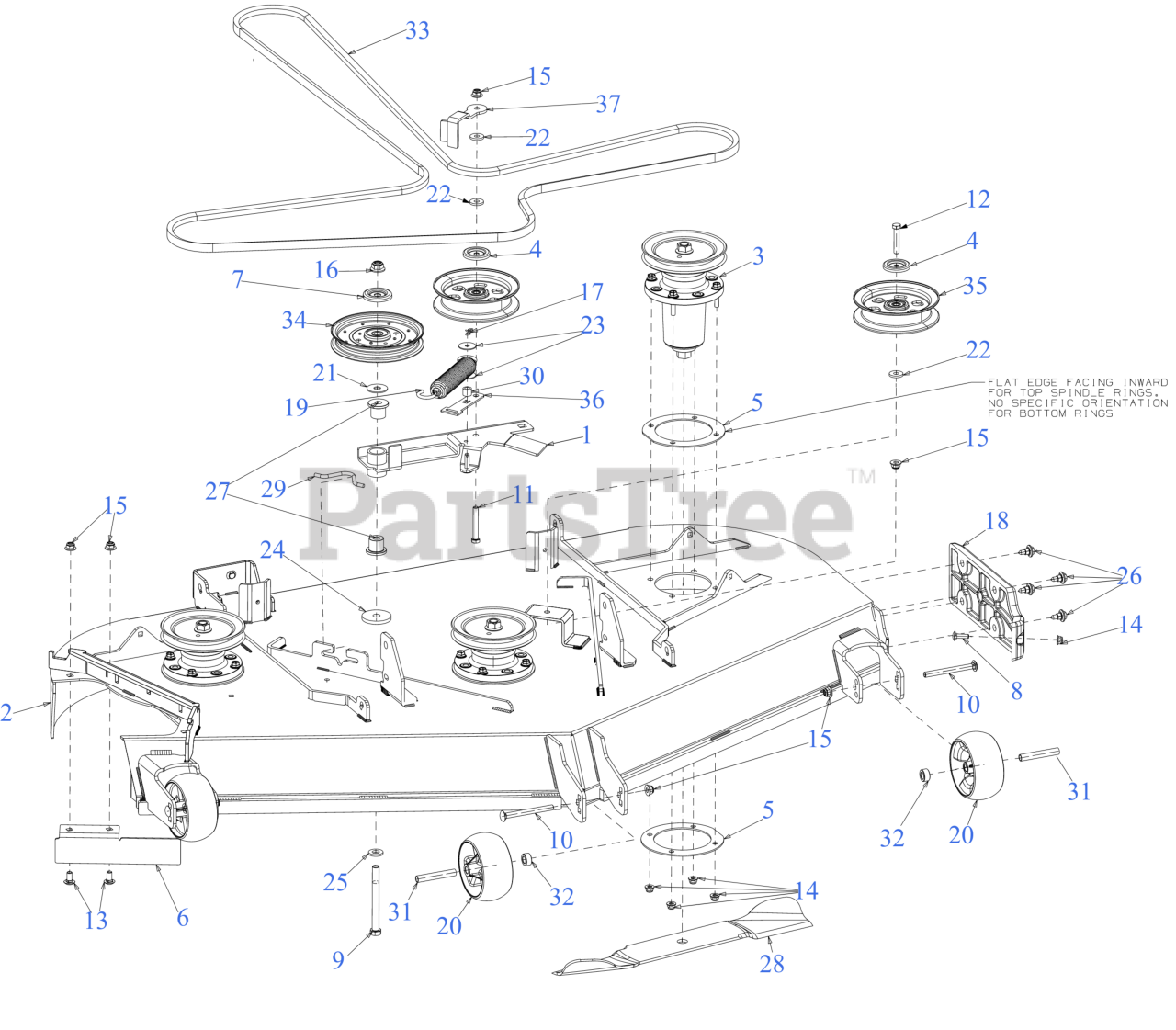

Deck Parts Diagram

  • Title

1

Cub Cadet 603E06959

54/60" DECK IDLER ASSEMBLY

$107.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603P07221A

60" FAB DECK SHELL

Note: *CHOOSE COLOR WHEN ORDERING*

$1564.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-07386

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$

$

Not available

3

Cub Cadet 490-130-C023

Cub Cadet 60" SPINDLE ASSEMBLY (07386)

Note: Retail Packaged Part

$199.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-11504

PULLEY CAP 1.875 DIA

$5.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703E18464

SPINDLE PLATE

$33.99

$

In Stock, only 2 left!

0

6

Cub Cadet 703E20129A

60" DECK CHUTE BAFFLE

$32.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-24504

PULLEY CAP (.540 x 2.041 DIA)

$9.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 11

0

9

Cub Cadet 710-0382

BOLT-HEX 1/2-13X5.0 GR5

$12.99

$

In Stock, only 2 left!

0

10

Cub Cadet 710-05384

CARRIAGE BOLT 3/8-16 x 4.00 GR5

$5.49

$

In Stock, Qty 19

0

11

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 16

0

12

Cub Cadet 710-3096

SCREW 3/8-16 x 2.0 GR 8

$7.99

$

In Stock, only 1 left!

0

13

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04150

NUT

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

18

Cub Cadet 731-13530

DECK SKID PLATE

$43.99

$

In Stock, only 2 left!

0

19

Cub Cadet 732-05360B

SPRING 1.25" DIA x 8.5" LONG

$34.99

$

In Stock, Qty 12

0

20

Cub Cadet 734-04155

DECK WHEEL

$20.99

$

In Stock, Qty 20+

0

20

Cub Cadet OEM-734-04155

WHEELS-DELUXE 5"

Note: Retail Packaged Part

$23.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0208

WASHER .51 x 1.5 x .07

$4.49

$

In Stock, Qty 9

0

22

Cub Cadet 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

In Stock, only 1 left!

0

23

Cub Cadet 736-0362

FLAT WASHER .322 ID x 1.25 x .060

$4.49

$

In Stock, Qty 8

0

24

Cub Cadet 736-05642

FLAT WASHER .53"x2.125"x.25"

$7.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-3019

FLAT WASHER .531X1.060X.134

$5.99

$

In Stock, Qty 11

0

26

Cub Cadet 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

In Stock, only 2 left!

0

27

Cub Cadet 741-06810

FLANGE BEARING

$9.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 742P05516

21" BLADE

$41.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 747-10330

DECK SPRING HOOK

$3.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 750-05563

SPACER

$7.49

$

In Stock, only 1 left!

0

31

Cub Cadet 750-06199

SPACER .38X.49X3.05LG

$8.49

$

In Stock, only 3 left!

0

32

Cub Cadet 750-0664

SPACER-.505 1D

$6.99

$

In Stock, only 2 left!

0

33

Cub Cadet 754P06094

V-BELT B SEC x 162.25

$77.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 490-501-C090

Cub Cadet DECK BELT

Note: Retail Packaged Part

$77.99

$

In Stock, only 2 left!

0

34

Cub Cadet 756-05212

IDLER PULLEY 6.0" DIA

$83.99

$

In Stock, only 1 left!

0

35

Cub Cadet 756-05332

5" FLAT IDLER PULLEY

$49.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 783E11808

BELT KEEPER

$14.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 783E11828

54/60" IDLER KEEPER

$25.99

$

Usually ships in 3-6 days

0
