ZTX 550 (5901404-00) - Snapper 52"/132cm Zero-Turn Mower, 8270 Series Briggs & Stratton Seat Mount & Floor Group - Export Models Parts Diagram

52"/132cm Zero-Turn Mower, 8270 Series Briggs & Stratton

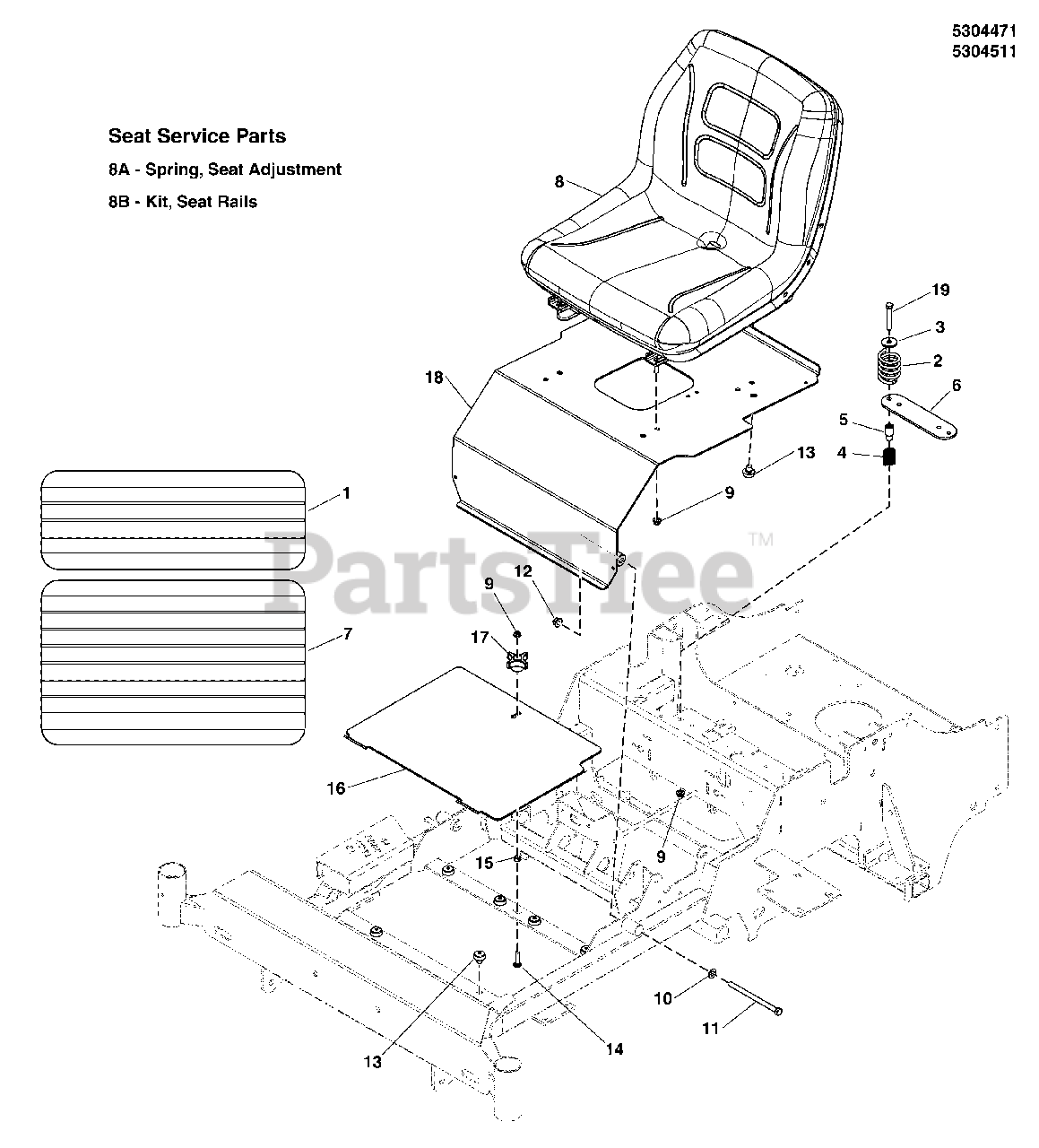

Seat Mount & Floor Group - Export Models Parts Diagram

  • Title

1

Snapper 5101374YP

SAFETY WALK, FLOOR REST, 6.00 X 16.00

$18.99

$

In Stock, only 1 left!

0

2

Snapper 7078299SM

SPRING, SEAT SUPPORT

$14.99

$

Usually ships in 2-12 days

0

3

Snapper 5044617SM

WASHER, .34 X 1.25 X 10 GA

$8.49

$

In Stock, only 2 left!

0

4

Snapper 5102211YP

SPRING, COM 720ID X 1.31KG X .118WIRE

$31.99

$

Usually ships in 2-12 days

0

5

Snapper 5102228YP

SPACER, .33 X .66 X 1.31 SHLDR, CZ

$14.99

$

Usually ships in 2-12 days

0

6

Snapper 5402732DYP

PLATE, SEAT SWITCH, RED

$14.99

$

Usually ships in 2-12 days

0

7

Snapper 5101333YP

SAFETY WALK, FLOOR PLATE, 16.00 X 10.00

$37.99

$

Usually ships in 2-12 days

0

8

Snapper 5100909SM

SEAT, NO ARM REST

$551.99

$

Usually ships in 2-12 days

0

8A

Snapper 5100652SM

SPRING, Extension, Seat Adjustment (BLK or SLVR) (3-1/2" Total unstretched length.)

$10.99

$

Usually ships in 2-12 days

0

8B

Snapper 5061599X1SM

SEAT RAIL, KIT, RH AND LH (SV)

$192.99

$

Usually ships in 2-12 days

0

9

Snapper 703115

NUT, 5/16-18 HEX NYLOCK FLANGE

$3.49

$

In Stock, Qty 20+

0

10

Snapper 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0

11

Snapper 5025013X44SM

BOLT, 3/8-16 X 5-1/2 GD5 CZ

$4.99

$

Usually ships in 2-12 days

0

12

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

13

Snapper 197546GS

MNT, VBRTN, RBBR

$7.99

$

In Stock, only 2 left!

0

14

Snapper 5025145X10YP

BOLT, 5/16-18 X 1-1/4, CARRIAGE YZ

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 703164

NUT, 5/16-18, HEX, CNTR LK,ZINC PHOS/OIL (80003675)

$3.49

$

In Stock, Qty 20+

0

16

Snapper 5411414DYP

PLATE, FLOOR, REMOVABLE - RED

$85.99

$

Usually ships in 2-12 days

0

17

Snapper 1670578SM

KNOB-INT THR, .312-18 4-ARM 2.12WD 1.06LG

$13.99

$

Usually ships in 2-12 days

0

18

Snapper 5600945YP

ASSM, SEAT PLATE W/ DECAL, ZTX550 CE

Note: (5414838D)

$455.99

$

Usually ships in 2-12 days

0

19

Snapper 5025011X18SM

BOLT, 5/16-18 X 2-1/4 GD5 YZ

$3.99

$

In Stock, only 1 left!

0
