ZTX 350 (ZT 2352) (2691410-01) - Snapper 52"/132cm Zero-Turn Mower, 23hp Engine Group Parts Diagram

52"/132cm Zero-Turn Mower, 23hp

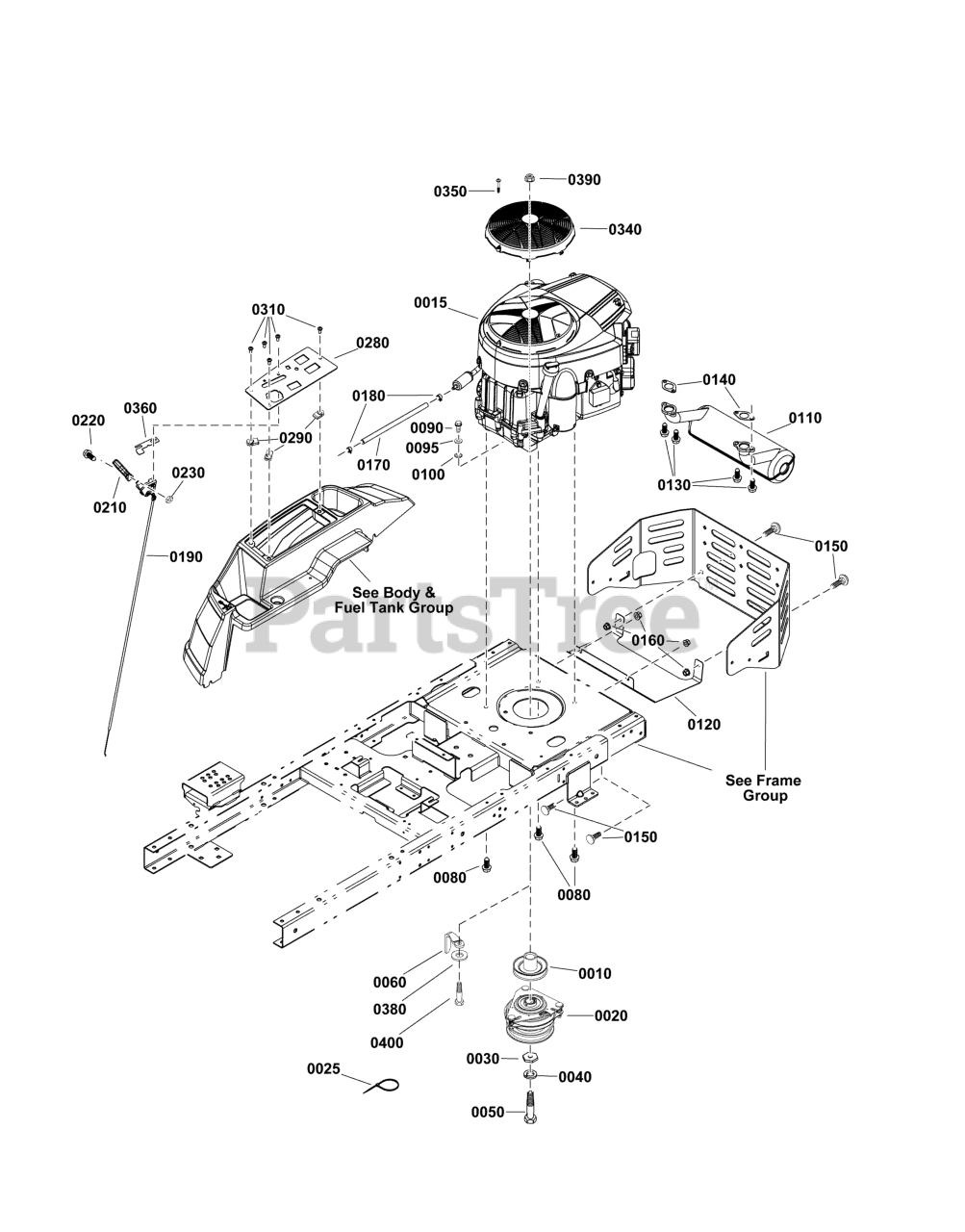

Engine Group Parts Diagram

  • Title

0010

Snapper 1757995YP

PULLEY ASSEMBLY

$39.99

$

Usually ships in 2-12 days

0

0020

Snapper 1736105SM

CLUTCH, Ogura

$387.99

$

Usually ships in 2-12 days

0

0015

Snapper 44U877-0003-B1

* ENGINE, 8270 Pro Series Twin

$

$

Currently unavailable

0025

Snapper 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0030

Snapper 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

0040

Snapper 704007

WASHER, Lock, 7/16

$4.49

$

In Stock, Qty 20+

0

0050

Snapper 1960649SM

CAPSCREW, Hex Head, 7/16-20 X 3 1/2, G5

$7.49

$

In Stock, only 1 left!

0

0060

Snapper 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, Qty 10

0

0070

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0080

Snapper 2828635SM

SCREW, Taptite, 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

0090

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 9

0

0095

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1921880SM

WASHER, Lock, 1/4

$3.49

$

Usually ships in 2-12 days

0

0110

Snapper 1758350YP

MUFFLER

$225.99

$

Usually ships in 2-12 days

0

0120

Snapper 1759502AYP

SHIELD, Heat

$63.99

$

In Stock, only 1 left!

0

0130

Snapper 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

0140

Snapper 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

0150

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0160

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 791766

LINE, Fuel

Note: (Low Perm, Cut to 11.25")

$7.99

$

In Stock, Qty 20+

0

0180

Snapper 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 17

0

0190

Snapper 1759205YP

CONTROL, Throttle

$43.99

$

In Stock, only 3 left!

0

0210

Snapper 1739312YP

KNOB, Throttle

$11.99

$

Usually ships in 2-12 days

0

0220

Snapper 797483

SCREW

$4.49

$

Usually ships in 2-12 days

0

0230

Snapper 703460

NUT

$3.99

$

In Stock, Qty 9

0

0280

Snapper 1760041AYP

PANEL, Control

$37.99

$

Usually ships in 2-12 days

0

0280

Snapper 1759429AYP

PANEL, Control

$37.99

$

Usually ships in 2-12 days

0

0290

Snapper 705876

NUT, Speed, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0310

Snapper 703953

SCREW, Torx Pan Head Self-Tapping, 1/4-20 X 5/8,

$4.49

$

In Stock, only 2 left!

0

0340

Snapper 797420YP

GUARD, Debris Screen

$37.99

$

Usually ships in 2-12 days

0

0350

Snapper 799359

SCREW

$4.49

$

In Stock, only 3 left!

0

0360

Snapper 1760887YP

THROTTLE STOP

$13.99

$

Usually ships in 2-12 days

0

0015

Snapper 44U877-0003-B5

* ENGINE, B&S 8270 Professional Series

$

$

Currently unavailable

0380

Snapper 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

0390

Snapper 5025392SM

NUT, Ny Lock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0400

Snapper 5025011X14SM

CAPSCREW, Hex Head, 5/16-18 X 1-3/4

$3.99

$

In Stock, Qty 20+
