ZTX 275 (2691712-01) - Snapper 48"/122cm Zero-Turn Mower, 8270 Series Briggs & Stratton French Guard Group - 48" FAB Deck, HOZ Parts Diagram

48"/122cm Zero-Turn Mower, 8270 Series Briggs & Stratton

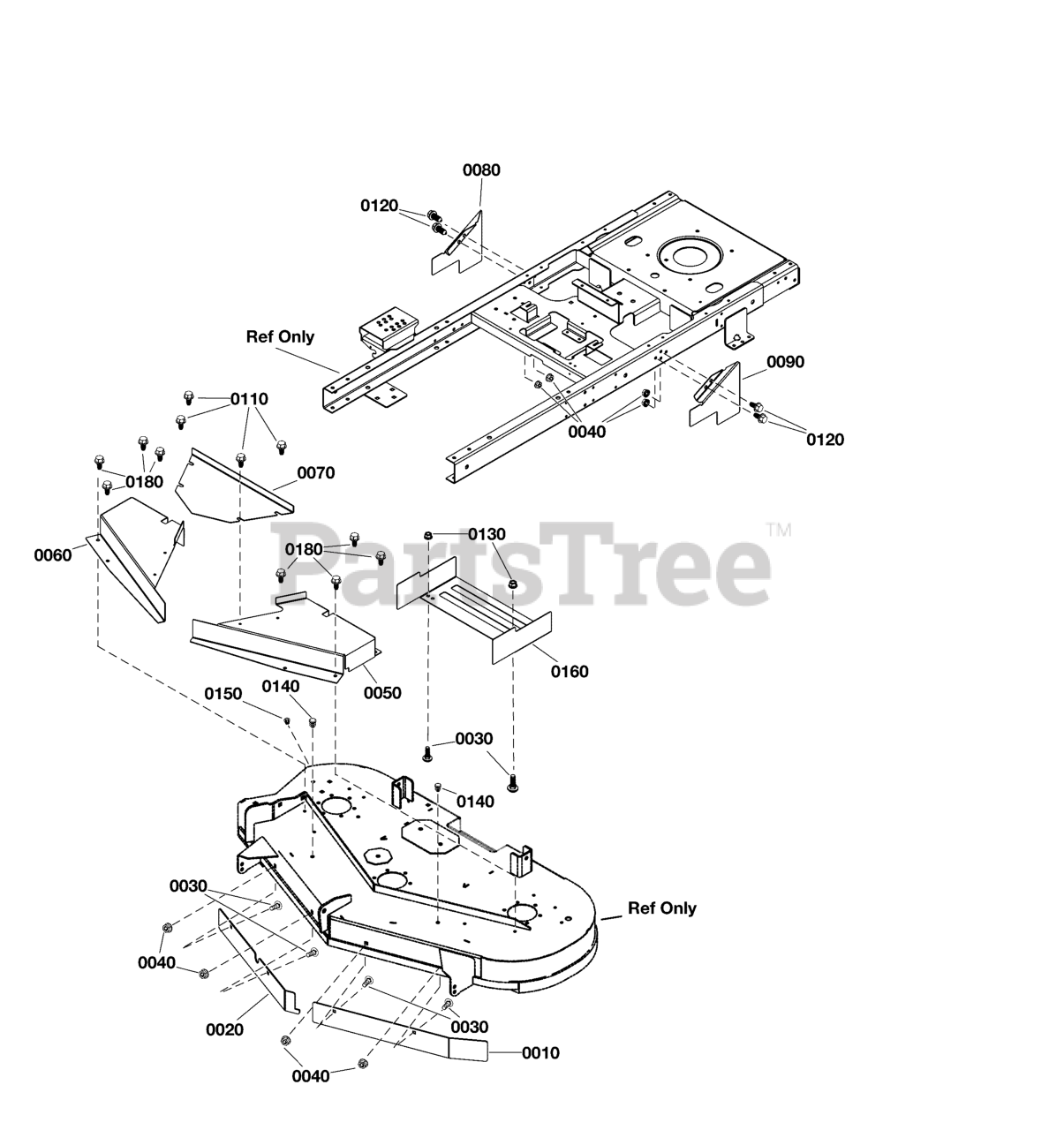

French Guard Group - 48" FAB Deck, HOZ Parts Diagram

  • Title

0010

Snapper 1761085AYP

BAFFLE, Trim Side, 48"

$40.99

$

Usually ships in 2-12 days

0

0020

Snapper 1761086AYP

BAFFLE, Discharge, 48"

$42.99

$

Usually ships in 2-12 days

0

0030

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0040

Snapper 5025127SM

NUT, Hex Serrated Flange, 5/16-18,

$3.49

$

In Stock, only 3 left!

0

0050

Snapper 1761565AYP

COVER, LH Arbor, 48"

$100.99

$

Usually ships in 2-12 days

0

0060

Snapper 1761564AYP

COVER, RH Arbor, 48"

$100.99

$

Usually ships in 2-12 days

0

0070

Snapper 1761566AYP

COVER, Top Arbor, 48"

$41.99

$

Usually ships in 2-12 days

0

0080

Snapper 1760075AYP

COVER, Belt, RH

$

$

Currently unavailable

0090

Snapper 1760076AYP

COVER, Belt, LH

$23.99

$

Usually ships in 2-12 days

0

0110

Snapper 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 5

0

0120

Snapper 703410

BOLT, Serrated Flange, 5/16-18 X 1.0

$4.49

$

In Stock, only 2 left!

0

0130

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0140

Snapper 7046780SM

PLUG, Hole, .44" OD

$4.99

$

Usually ships in 2-12 days

0

0150

Snapper 7073293YP

PLUG, Hole, .30 OD

$2.99

$

Usually ships in 2-12 days

0

0160

Snapper 1760077AYP

COVER, Rear Deck Belt, 48"

$70.99

$

Usually ships in 2-12 days

0

0180

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0
