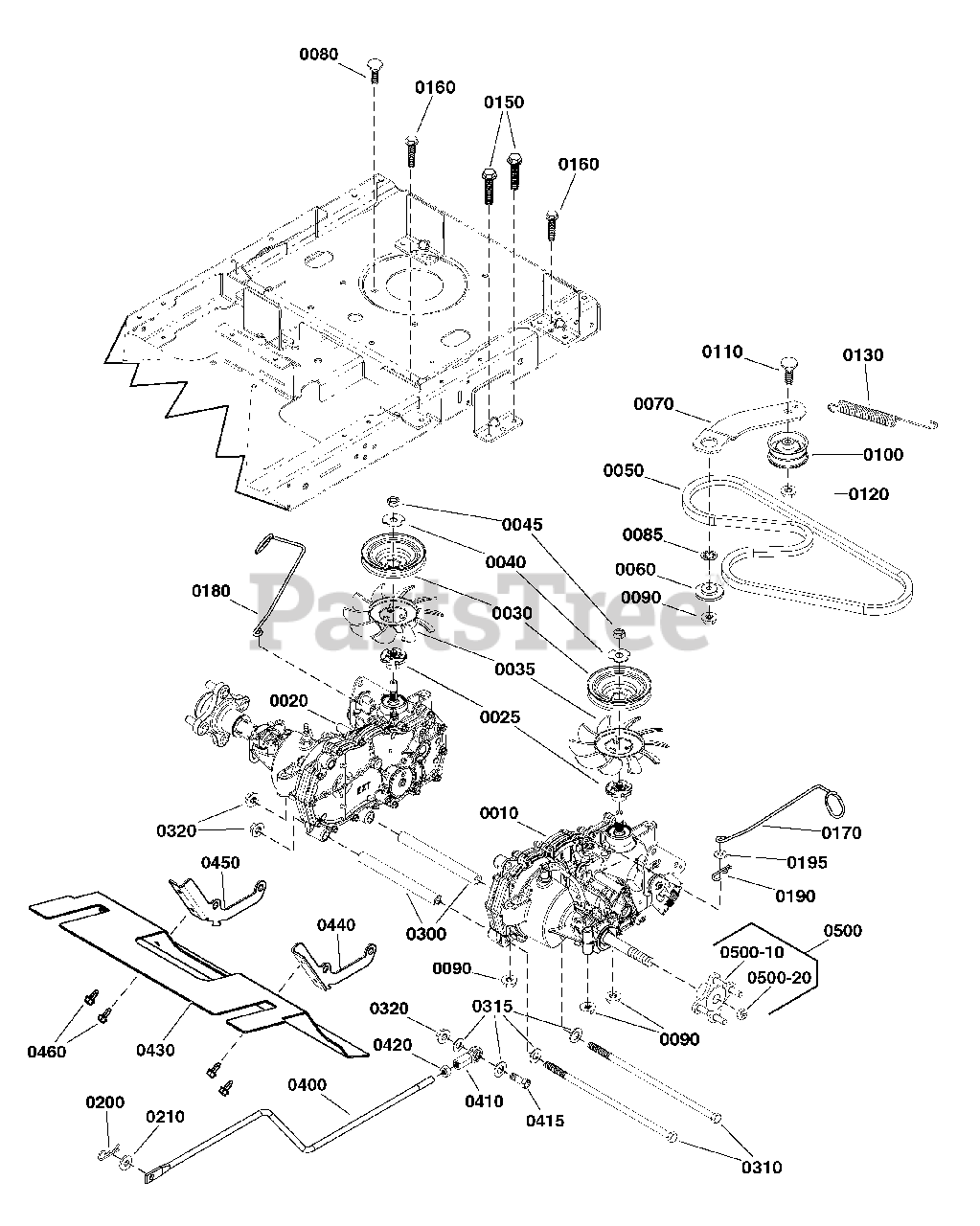

ZTX 275 (2691459-00) - Snapper 48"/122cm Zero-Turn Mower, 8270 Series Briggs & Stratton Transmission Group Parts Diagram

48"/122cm Zero-Turn Mower, 8270 Series Briggs & Stratton

Transmission Group Parts Diagram

  • Title

0010

Snapper 1759444YP

TRANSMISSION, Hydro Gear, LH
(Superseded to 84008002)

Note: Model Nos. (ZD-AUBB-2A7B-3XPX)

$1060.99

$

Usually ships in 2-12 days

0

0020

Snapper 1759443YP

TRANSMISSION, Hydro Gear, RH
(Superseded to 84007995)

Note: Model Nos. (ZD-DUBB-2A7C-2XPX)

$1060.99

$

Usually ships in 2-12 days

0

0025

Snapper 1759450YP

SPACER, Transmission, 26 Tooth Spline

$12.99

$

Usually ships in 2-12 days

0

0030

Snapper 1759447YP

PULLEY, Transmission

$26.99

$

In Stock, only 3 left!

0

0035

Snapper 1759448YP

FAN, Input

$14.99

$

In Stock, only 3 left!

0

0040

Snapper 5102914YP

WASHER, Slotted

$3.99

$

In Stock, only 1 left!

0

0045

Snapper 5102916YP

NUT, ZT5400

$3.49

$

In Stock, only 1 left!

0

0050

Snapper 1758100YP

BELT, Transmission

$42.99

$

In Stock, Qty 20+

0

0060

Snapper 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 1 left!

0

0070

Snapper 1758044AYP

ARM, Idler

$20.99

$

In Stock, only 1 left!

0

0080

Snapper 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 8

0

0085

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0090

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0100

Snapper 1668477SM

PULLEY, Idler, 2.25" OD, .378 ID

$23.99

$

In Stock, Qty 20+

0

0110

Snapper 703879

BOLT, Carriage, 3/8-16X1-3/4, GR5

$3.99

$

In Stock, Qty 6

0

0120

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0130

Snapper 1758045YP

SPRING, 7.18"Long, .75" OD, Extension

$8.49

$

Usually ships in 2-12 days

0

0150

Snapper 707943

SCREW, Washer Head, 5/16-18 X 3

$5.99

$

Usually ships in 2-12 days

0

0160

Snapper 707944

SCREW, Washer Head, 5/16-18 X 2 1/4

$4.99

$

Usually ships in 2-12 days

0

0170

Snapper 1759245YP

ROD, Release, LH

$14.99

$

Usually ships in 2-12 days

0

0180

Snapper 1759246YP

ROD, Release, RH

$14.99

$

Usually ships in 2-12 days

0

0190

Snapper 1722460SM

PIN, Hair
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0195

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0200

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0210

Snapper 704128

WASHER, Flat

$4.99

$

In Stock, Qty 11

0

0300

Snapper 1759392YP

SPACER, Transmission

$14.99

$

Usually ships in 2-12 days

0

0310

Snapper 84004985

CAPSCREW, HexHead, 7/16-14 X 11 3/4

$18.99

$

Usually ships in 2-12 days

0

0315

Snapper 703183

WASHER, 7/16

$3.99

$

In Stock, only 2 left!

0

0320

Snapper 1930650SM

NUT, Hex Two Way, 7/16-14

$5.49

$

In Stock, only 4 left!

0

0400

Snapper 1757966YP

ROD, Control

$37.99

$

Usually ships in 2-12 days

0

0410

Snapper 1759799YP

ROD, 7/16-20 RH, Female

$22.99

$

Usually ships in 2-12 days

0

0415

Snapper 703579

CAPSCREW, Hex Head, 7/16-14 x 1-1/4, GR8

$4.49

$

In Stock, Qty 20+

0

0420

Snapper 7090460SM

NUT, 7/16F, GR5, Hex

$2.49

$

Usually ships in 2-12 days

0

0430

Snapper 84004940

GUARD, Debris,Transmission

$96.99

$

Usually ships in 2-12 days

0

0440

Snapper 84004941

BRACKET, Debris, LH

$17.99

$

Usually ships in 2-12 days

0

0450

Snapper 84004942

BRACKET, Debris, RH

$17.99

$

Usually ships in 2-12 days

0

0460

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0500

Snapper 7600158YP

KIT, Hub Replacement

Note: (Includes Ref. 0500-10 & 0500-20)

$122.99

$

Usually ships in 2-12 days

0

0500-10

HUB, EZT Transmission

$

$

Not available

0500-20

NUT, EZT Transmission

$

$

Not available
