ZTX 250 (2691711-01) - Snapper 48"/122cm Zero-Turn Mower, 8270 Series Briggs & Stratton Seat Group Parts Diagram
48"/122cm Zero-Turn Mower, 8270 Series Briggs & Stratton

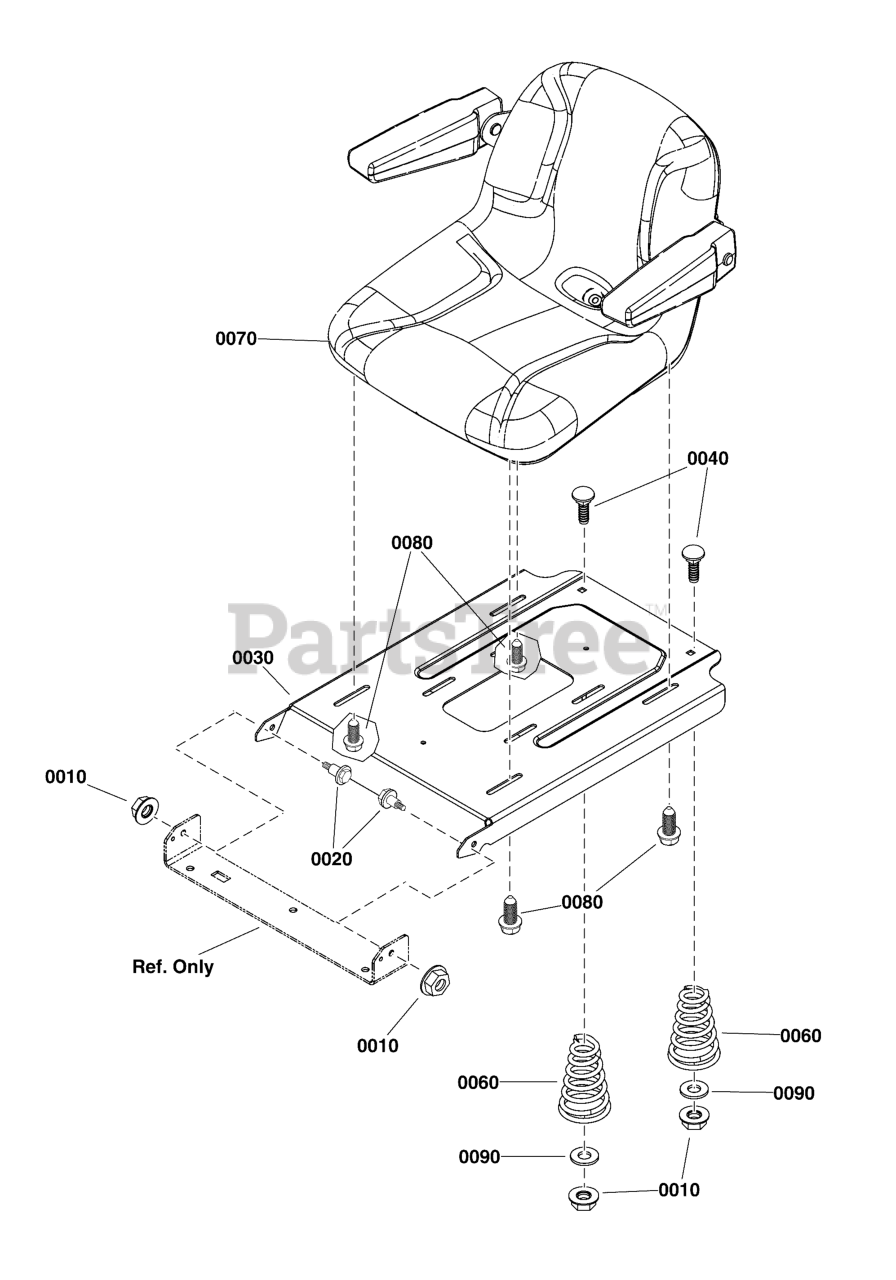

Seat Group Parts Diagram
Snapper 703115
NUT, Flange Nylock, 5/16-18
$3.49
$
In Stock, Qty 20+
Snapper 1752802YP
BOLT, Shoulder, 5/16-18 x 1.03LG
$5.99
$
Usually ships in 2-12 days
Snapper 84001618
SLIDE, Seat, Red
$173.99
$
Usually ships in 2-12 days
Snapper 703483
BOLT, Carriage, 5/16-18 X 1, GR5
$3.99
$
In Stock, only 1 left!
Snapper 1717051SM
SPRING, Seat
$13.99
$
In Stock, Qty 20+
Snapper 84003851
SEAT ASSEMBLY w/Armrests
$512.99
$
Usually ships in 2-12 days
Snapper 770697
SCREW, Hex Flange, 5/16-18 x 1
$
$
Not available
Snapper 703591
WASHER, Flat, 13/32 x 1 1/2 x 1/8
$5.49
$
In Stock, Qty 20+
