ZTX 175 (2691924-00) - Snapper 42"/107cm Zero-Turn Mower, 8270 Series Briggs & Stratton 42" (107cm) Mower Deck - Guarding Group Parts Diagram

42"/107cm Zero-Turn Mower, 8270 Series Briggs & Stratton

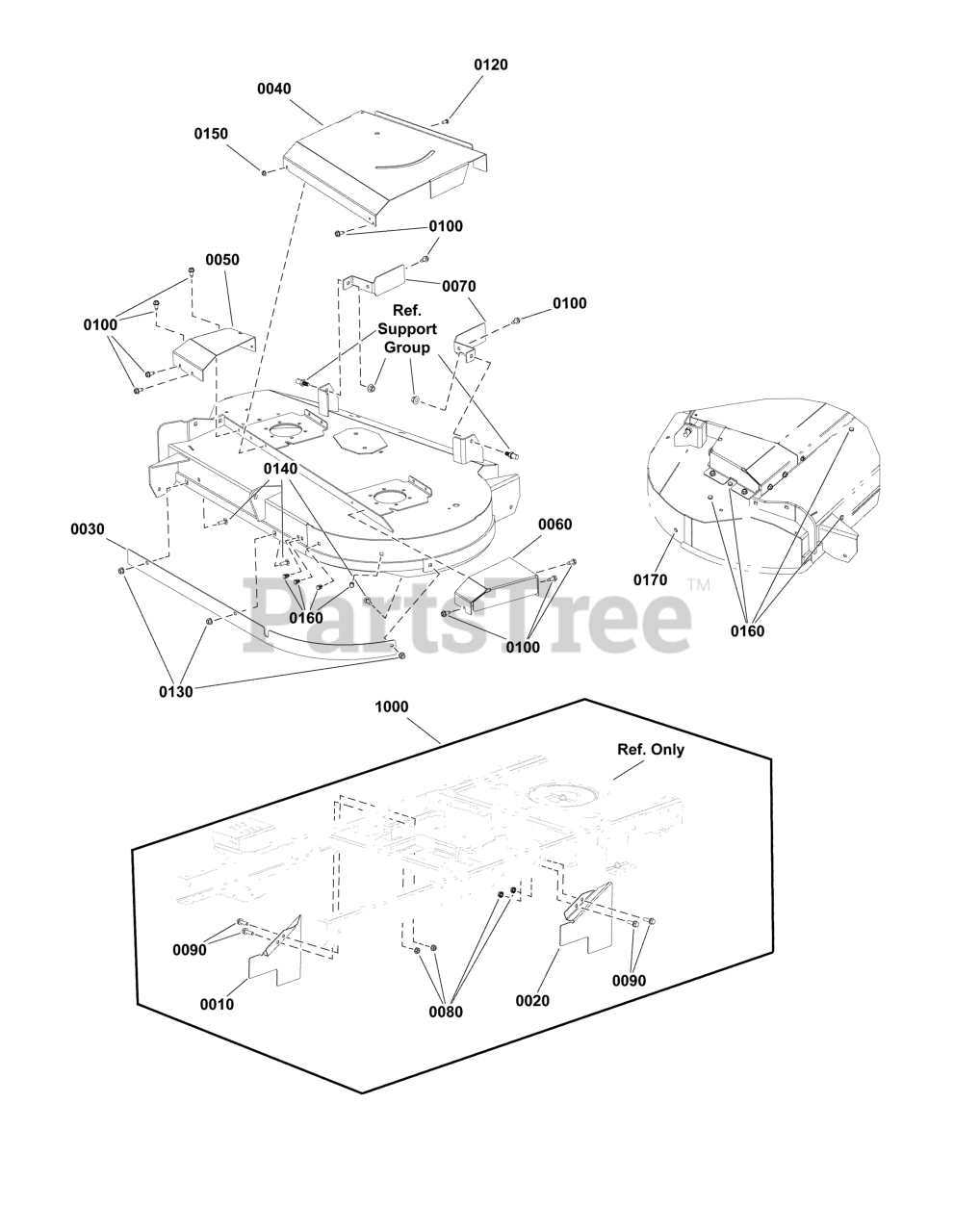

42" (107cm) Mower Deck - Guarding Group Parts Diagram

  • Title

0010

COVER, Deck Belt, RH

Note: ( Included with Ref. No. 1000 )

$

$

Not available

0020

COVER, Deck Belt, LH

Note: ( Included with Ref. No. 1000 )

$

$

Not available

1000

Snapper 84007640

KIT, Belt Covers

Note: ( Incl. Ref. Nos. 0010, 0020, 0080 & 0090 )

$

$

Currently unavailable

0030

Snapper 84007641

BAFFLE, Blowout

$

$

Currently unavailable

0040

Snapper 1760092AYP

COVER, Pulley, 42", Black

$165.99

$

Usually ships in 2-12 days

0

0050

Snapper 1760094AYP

COVER, Belt, 42" Fab, RH, Black

$56.99

$

Usually ships in 2-12 days

0

0060

Snapper 1760093AYP

COVER, Belt, 42" Fab, LH, Black

$54.99

$

Usually ships in 2-12 days

0

0070

Snapper 1760095AYP

SUPPORT, Pulley Cover, 42" Mower Deck,Black

$25.99

$

Usually ships in 2-12 days

0

0080

Snapper 5025127SM

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)

Note: ( Included with Ref. No. 1000 )

$3.49

$

In Stock, only 4 left!

0

0090

Snapper 703410

BOLT, 5/16-18 X 1

Note: ( Included with Ref. No. 1000 )

$4.49

$

In Stock, only 2 left!

0

0100

Snapper 84007040

SCREW. Hex, Washer, 5/16-18 x 3/4

$

$

Currently unavailable

0120

Snapper 5025010X6SM

USE -5025010X6 - BOLT, 1/4-20 X 3/4 GD2

$3.99

$

In Stock, Qty 20+

0

0130

Snapper 703115

NUT, HEX

$3.49

$

In Stock, Qty 20+

0

0140

Snapper 704065

BOLT-RD HD SH SQ NK 5

$4.49

$

In Stock, Qty 5

0

0150

Snapper 15X143MA

NUT,25-20 HEX FLG CTR

$4.99

$

In Stock, Qty 13

0

0160

Snapper 7046780SM

PLUG, Hole, .44" OD

$4.99

$

Usually ships in 2-12 days

0

0170

Snapper 7073293YP

PLUG, Hole, .30 OD

$2.99

$

Usually ships in 2-12 days

0
