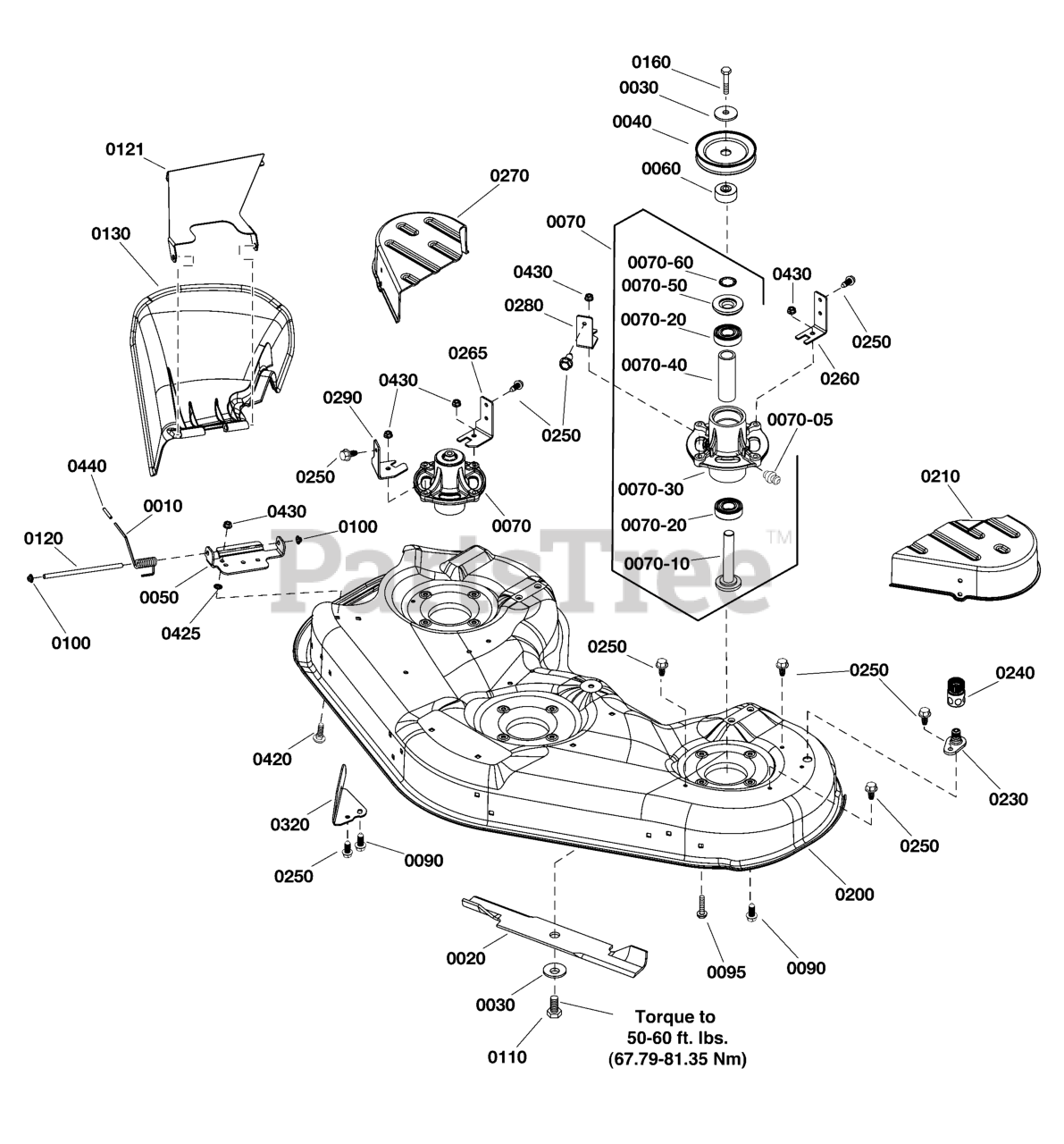

46" Mower Deck - Housing, Arbor & Blade Group Parts Diagram

  • Title

0010

Snapper 1759042YP

SPRING - TORSION

$6.49

$

Usually ships in 2-12 days

0

0020

Snapper 1739889AYP

BLADE, Mower

$27.99

$

In Stock, Qty 20+

0

0030

Snapper 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0040

Snapper 1735686YP

PULLEY, Split, 4.6 OD

$19.99

$

In Stock, only 3 left!

0

0050

Snapper 1754868AYP

BRACKET, Hinge, Retro

$17.99

$

Usually ships in 2-12 days

0

0060

Snapper 1737457YP

SPACER, Pulley

$10.99

$

In Stock, only 1 left!

0

0070

Snapper 84003175

ARBOR ASSEMBLY

$100.99

$

In Stock, only 1 left!

0

0070-05

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0070-10

Snapper 84003170

SHAFT, Spindle

$29.99

$

In Stock, only 2 left!

0

0070-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0070-30

Snapper 84003654

HOUSING, w/Lube Fittting

$43.99

$

In Stock, Qty 11

0

0070-40

Snapper 84003167

SPACER, Bearing

$6.99

$

In Stock, Qty 7

0

0070-50

Snapper 84003166

SHIELD, Arbor

$6.99

$

In Stock, only 3 left!

0

0070-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0095

Snapper 1930600SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

0100

Snapper 704028

PUSHNUT, 5/16

$5.49

$

In Stock, only 4 left!

0

0110

Snapper 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 16

0

0120

Snapper 1759064YP

ROD, Deflector

$8.49

$

Usually ships in 2-12 days

0

0121

Snapper 1758935AYP

BRACKET, Support

$58.99

$

In Stock, only 1 left!

0

0130

Snapper 1754745YP

DEFLECTOR, Discharge
(Superseded to 1687750YP)

$37.99

$

In Stock, Qty 20+

0

0160

Snapper 1921212SM

CAPSCREW, Hex Head, 7/16-14 X 1 1/2

$

$

Not available

0200

Snapper 1687848YP

HOUSING, Mower Deck, 46" ZT (Red)

$1823.99

$

Usually ships in 2-12 days

0

0210

Snapper 1759289YP

COVER, Spindle, 46"/ 52" Mower, LH

$56.99

$

Usually ships in 2-12 days

0

0230

Snapper 1756247YP

ADAPTER, Washout Port

$6.49

$

Usually ships in 2-12 days

0

0240

Snapper 1756246YP

CONNECTOR, Washout Port

$15.99

$

Usually ships in 2-12 days

0

0250

Snapper 1664847CAYP

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0260

Snapper 1759291AYP

BRACKET, Arbor Cover Mount, Rear, LH, BL

$11.99

$

In Stock, only 1 left!

0

0265

Snapper 1759461AYP

BRACKET, Arbor Cover Mount, Rear, RH, BL

$12.99

$

In Stock, only 1 left!

0

0270

Snapper 1759290YP

COVER, Spindle, 46"/52" Mower, RH

$56.99

$

Usually ships in 2-12 days

0

0280

Snapper 1759292AYP

BRACKET, Arbor Cover Mount, Front, LH, BL

$11.99

$

Usually ships in 2-12 days

0

0290

Snapper 1759293AYP

BRACKET, Arbor Cover Mount, Front, RH, BL

$12.99

$

In Stock, only 1 left!

0

0320

Snapper 1737279BMYP

BAFFLE, Pinchoff

$16.99

$

In Stock, only 1 left!

0

0420

Snapper 703447

BOLT, 5/16-18 X .625, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0425

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0430

Snapper 5025127SM

NUT, Hex Serrated Flange, 5/16-18,

$3.49

$

In Stock, only 3 left!

0

0440

Snapper 5023489SM

CAP, Protector

$3.99

$

Usually ships in 2-12 days

0
