ZTX 110 (2691708-00) - Snapper 42"/107cm Zero-Turn Mower, 7200 Series Briggs & Stratton 42" HOZ Guarding Group Parts Diagram

42"/107cm Zero-Turn Mower, 7200 Series Briggs & Stratton

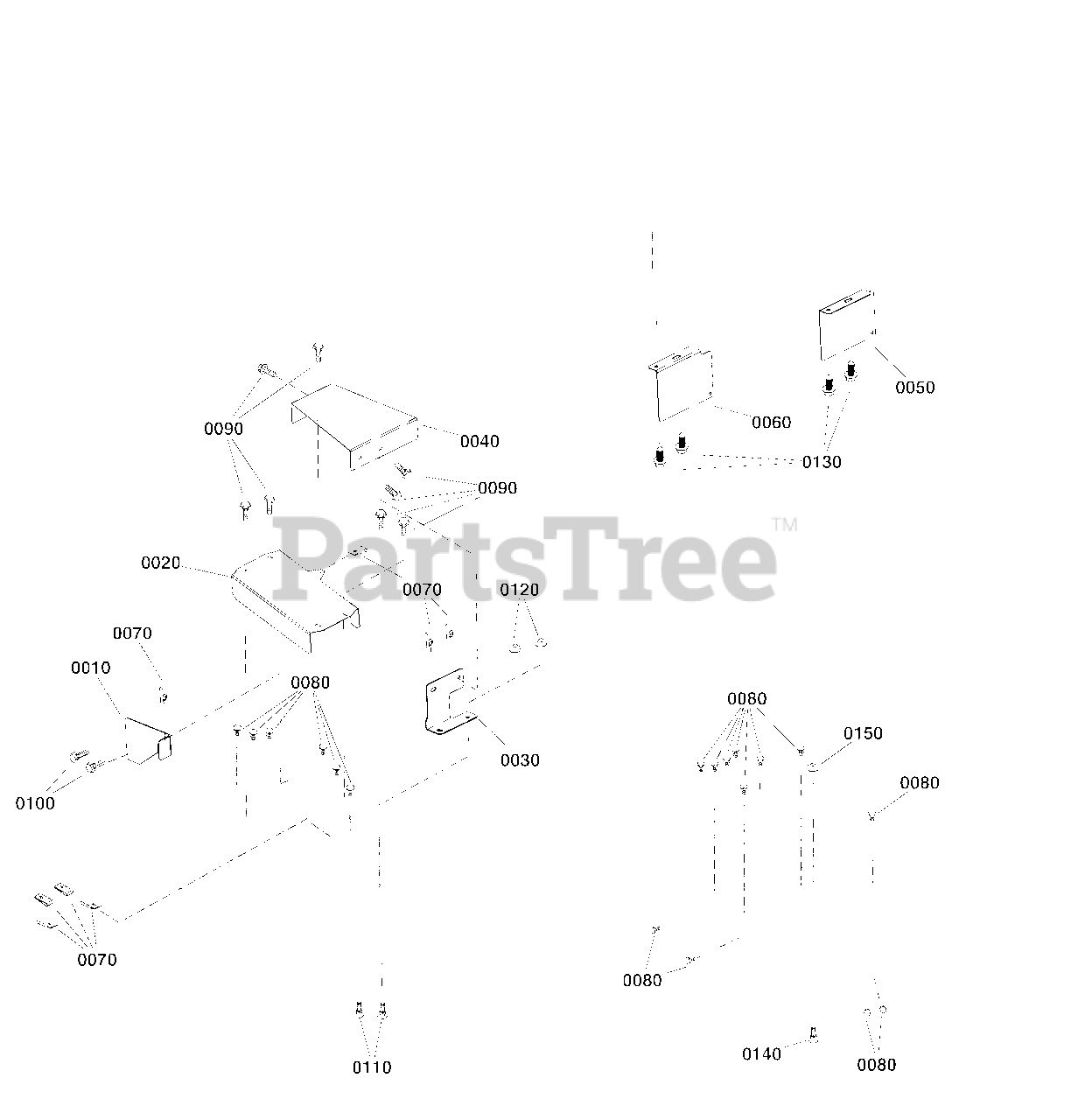

42" HOZ Guarding Group Parts Diagram

  • Title

0010

Snapper 1760485AYP

SUPPORT, Rear

$19.99

$

Usually ships in 2-12 days

0

0020

Snapper 1760482AYP

COVER, Pulley

$59.99

$

Usually ships in 2-12 days

0

0030

Snapper 1760484AYP

SUPPORT, Deck

$17.99

$

Usually ships in 2-12 days

0

0040

Snapper 1760483AYP

COVER, Idler

$56.99

$

Usually ships in 2-12 days

0

0050

Snapper 1760579AYP

GUARD, Belt, LH

$14.99

$

Usually ships in 2-12 days

0

0060

Snapper 1760580AYP

GUARD, Belt, RH

$17.99

$

Usually ships in 2-12 days

0

0070

Snapper 1926018SM

NUT, Speed, 1/4C

$4.49

$

In Stock, Qty 12

0

0080

Snapper 7046780SM

PLUG, Hole, .44" OD

$4.99

$

Usually ships in 2-12 days

0

0090

Snapper 1931646SM

SCREW, Hex Flange, 1/4-20 X 1/2

$4.49

$

In Stock, only 2 left!

0

0100

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0110

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0120

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0130

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0140

Snapper 5025013X6SM

CAPSCREW, Hex Head, 3/8-16 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0150

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0
