ZTX 110 (2691391-00) - Snapper 42"/107cm Zero-Turn Mower, 7200 Series Briggs & Stratton 42" Mower Deck - Housing, Arbors & Blade Group Parts Diagram

42"/107cm Zero-Turn Mower, 7200 Series Briggs & Stratton

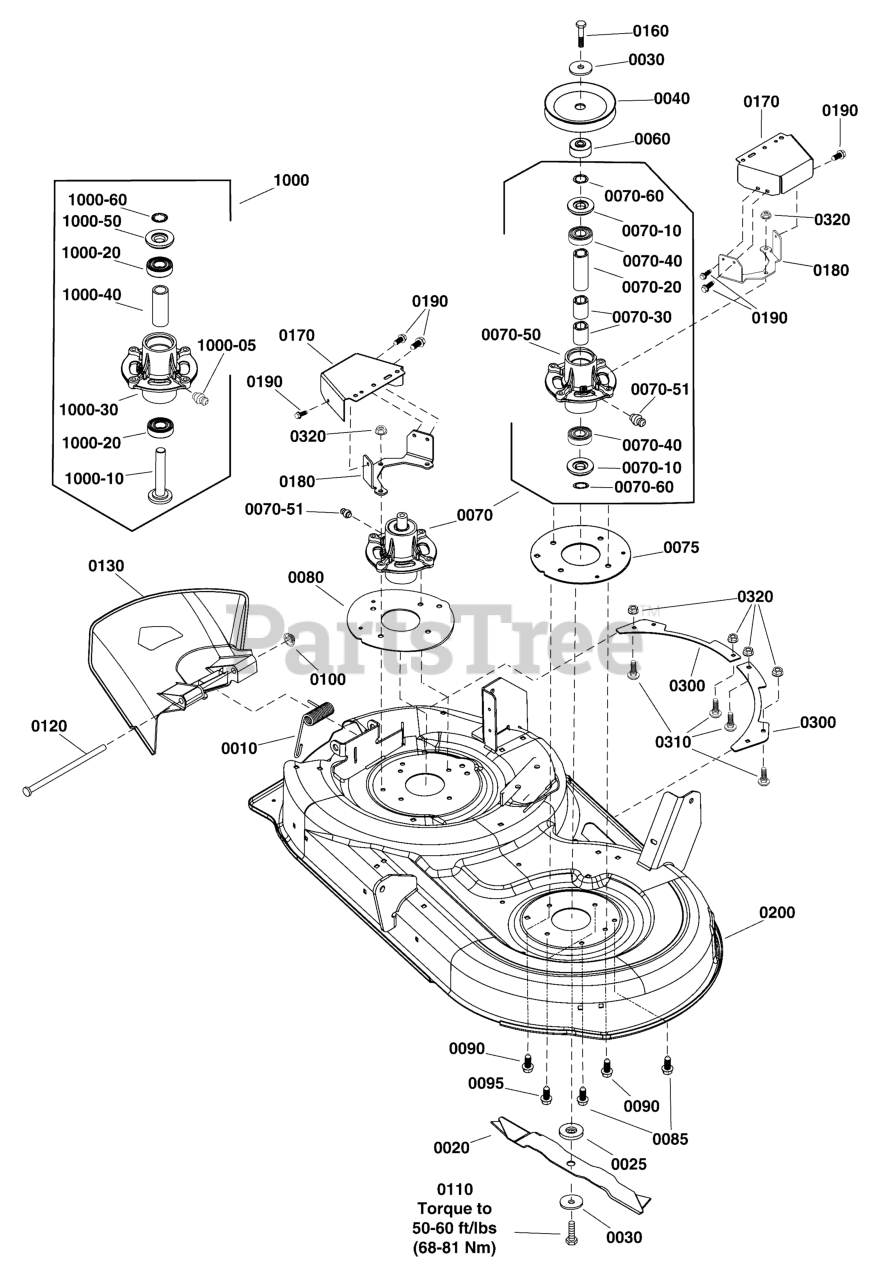

42" Mower Deck - Housing, Arbors & Blade Group Parts Diagram

  • Title
0010

Snapper 7035813SM

SPRING, Torsion

$24.99

$

In Stock, only 1 left!

0

0020

Snapper 1752100AYP

BLADE, 42" Mower

$29.99

$

Usually ships in 2-12 days

0

0025

Snapper 1755892YP

SPACER, Blade Adapter

$36.99

$

Usually ships in 2-12 days

0

0030

Snapper 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0040

Snapper 1737835YP

PULLEY, 4.50

$20.99

$

In Stock, only 1 left!

0

0060

Snapper 1760367YP

SPACER, Pulley

$15.99

$

Usually ships in 2-12 days

0

0070

Snapper 7600211YP

KIT, Aluminum Spindle Assembly
(Superseded to 84003175)

Note: (Replaced by Ref. Nos. 1000, this arbor assembly is an exact replacement)

$100.99

$

In Stock, only 1 left!

0

0070-10

Snapper 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, only 3 left!

0

0070-20

Snapper 1735326YP

SHAFT, Spindle
(Superseded to 1760276YP)

Note: (Replaced by Ref. Nos. 1000-10, this spindle shaft is an exact replacement for the shaft, shield and ring)

$27.99

$

In Stock, only 2 left!

0

0070-30

Snapper 1735328YP

SPACER, Bearing

Note: (Replaced by Ref. Nos. 1000-30, this spacer is an exact replacement)

$6.49

$

In Stock, only 1 left!

0

0070-40

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0070-50

Snapper 1735573YP

HOUSING, w/Lube Fittting
(Superseded to 84003654)

$43.99

$

In Stock, Qty 11

0

0070-51

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0070-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

1000

Snapper 84003175

ARBOR ASSEMBLY

$100.99

$

In Stock, only 1 left!

0

1000-05

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

1000-10

Snapper 84003170

SHAFT, Spindle

$29.99

$

In Stock, only 2 left!

0

1000-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

1000-30

Snapper 84003654

HOUSING, w/Lube Fittting

$43.99

$

In Stock, Qty 11

0

1000-40

Snapper 84003167

SPACER, Bearing

$6.99

$

In Stock, Qty 7

0

1000-50

Snapper 84003166

SHIELD, Arbor

$6.99

$

In Stock, only 3 left!

0

1000-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0075

Snapper 1750458BMYP

PLATE, Spindle, LH

$28.99

$

Usually ships in 2-12 days

0

0080

Snapper 1750457BMYP

PLATE, Spindle, RH

$28.99

$

In Stock, only 1 left!

0

0085

Snapper 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 5

0

0090

Snapper 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0095

Snapper 704318

SCREW, Hex Washer Self-Tap, 5/16-18 x 1-1/2

$4.49

$

In Stock, only 3 left!

0

0100

Snapper 703179

PUSHNUT, 1/2

$3.49

$

In Stock, Qty 20+

0

0110

Snapper 703579

CAPSCREW, Hex Head, 7/16-14 x 1-1/4, GR8

$4.49

$

In Stock, Qty 20+

0

0120

Snapper 7104640YP

ROD, Deflector

$28.99

$

In Stock, only 1 left!

0

0130

Snapper 7104733YP

DEFLECTOR

$87.99

$

In Stock, Qty 20+

0

0160

Snapper 1927531SM

CAPSCREW, Hex Head, 7/16-14 x 2, G8, Black

$5.49

$

In Stock, Qty 5

0

0170

Snapper 1760478AYP

COVER, Spindle

$35.99

$

Usually ships in 2-12 days

0

0180

Snapper 1752065BMYP

BRACKET, Guard Mount

$23.99

$

Usually ships in 2-12 days

0

0190

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 9

0

0200

Snapper 1687913YP

WELDMENT, 42" Mower Shell W/Decals, ZT (Red)

$2507.99

$

Usually ships in 2-12 days

0

0300

Snapper 092426E701MA

PLATE, Rear

$10.99

$

In Stock, only 1 left!

0

0310

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0320

Snapper 5025127SM

NUT, Hex Serrated Flange, 5/16-18,

$3.49

$

In Stock, only 3 left!

0
