ZTX 105 (2692024-00) - Snapper 36"/91cm Zero-Turn Mower, 7200 Series Briggs & Stratton Parking Brake Group Parts Diagram

36"/91cm Zero-Turn Mower, 7200 Series Briggs & Stratton

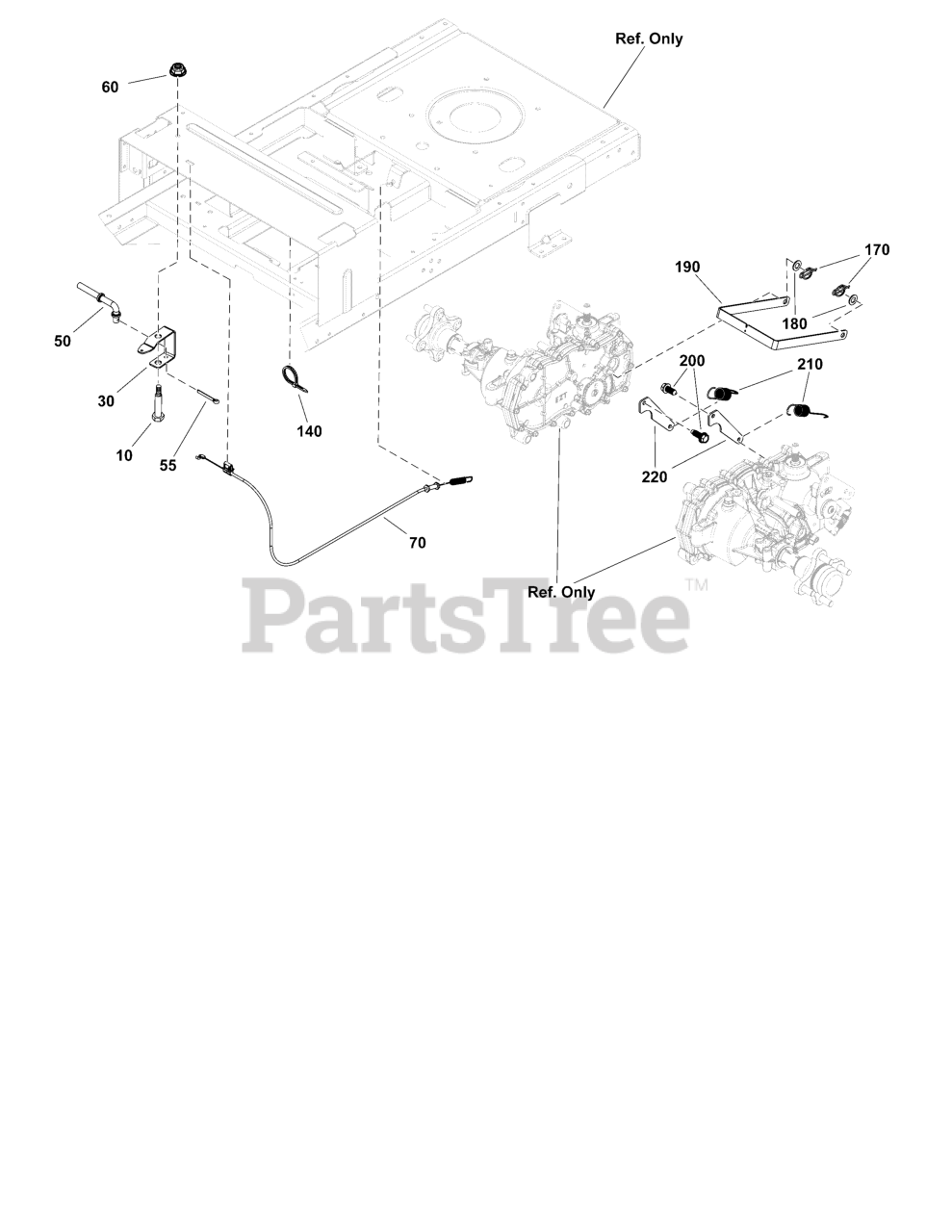

Parking Brake Group Parts Diagram

  • Title

10

Snapper 1736539

SHOULDER BOLT, 3/8-16 x 3.41" .750 Thread Yellow
(Superseded to 1736539YP)

$8.99

$

Usually ships in 2-12 days

0

30

Snapper 1758091

BELLCRANK, PARKING BRAKE

$

$

Currently unavailable

50

Snapper 80087699

ROD, PARKING BRAKE

$

$

Currently unavailable

55

Snapper 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

60

Snapper 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

70

Snapper 1759207

CABLE, PARKING BRAKE
(Superseded to 1759207YP)

$21.99

$

In Stock, only 1 left!

0

140

Snapper 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

170

Snapper 7091594

COTTER PIN, 1/2" Self-Locking
(Superseded to 7091594SM)

$2.99

$

In Stock, only 2 left!

0

180

Snapper 80005532

WSHR,0.390IDX0.720ODX0.054THK,FLAT,ZC/CL
(Superseded to 703946)

$3.99

$

In Stock, Qty 20+

0

190

Snapper 1758126A

ARM, PARKING BRAKE (EZT)(BLACK)

$

$

Currently unavailable

200

Snapper 80018295

SCREW, TAPTITE, M6 X 1.0-12 LG
(Superseded to 708964)

$4.49

$

Usually ships in 2-12 days

0

210

Snapper 1758283

SPRING, EXTENSION
(Superseded to 1758283YP)

$6.99

$

In Stock, only 1 left!

0

220

Snapper 1759349

BRKT, BRAKE SPRING (EZT)

$

$

Currently unavailable
