ZTX 105 (2692024-00) - Snapper 36"/91cm Zero-Turn Mower, 7200 Series Briggs & Stratton 36" Rear Discharge Parts Diagram

36"/91cm Zero-Turn Mower, 7200 Series Briggs & Stratton

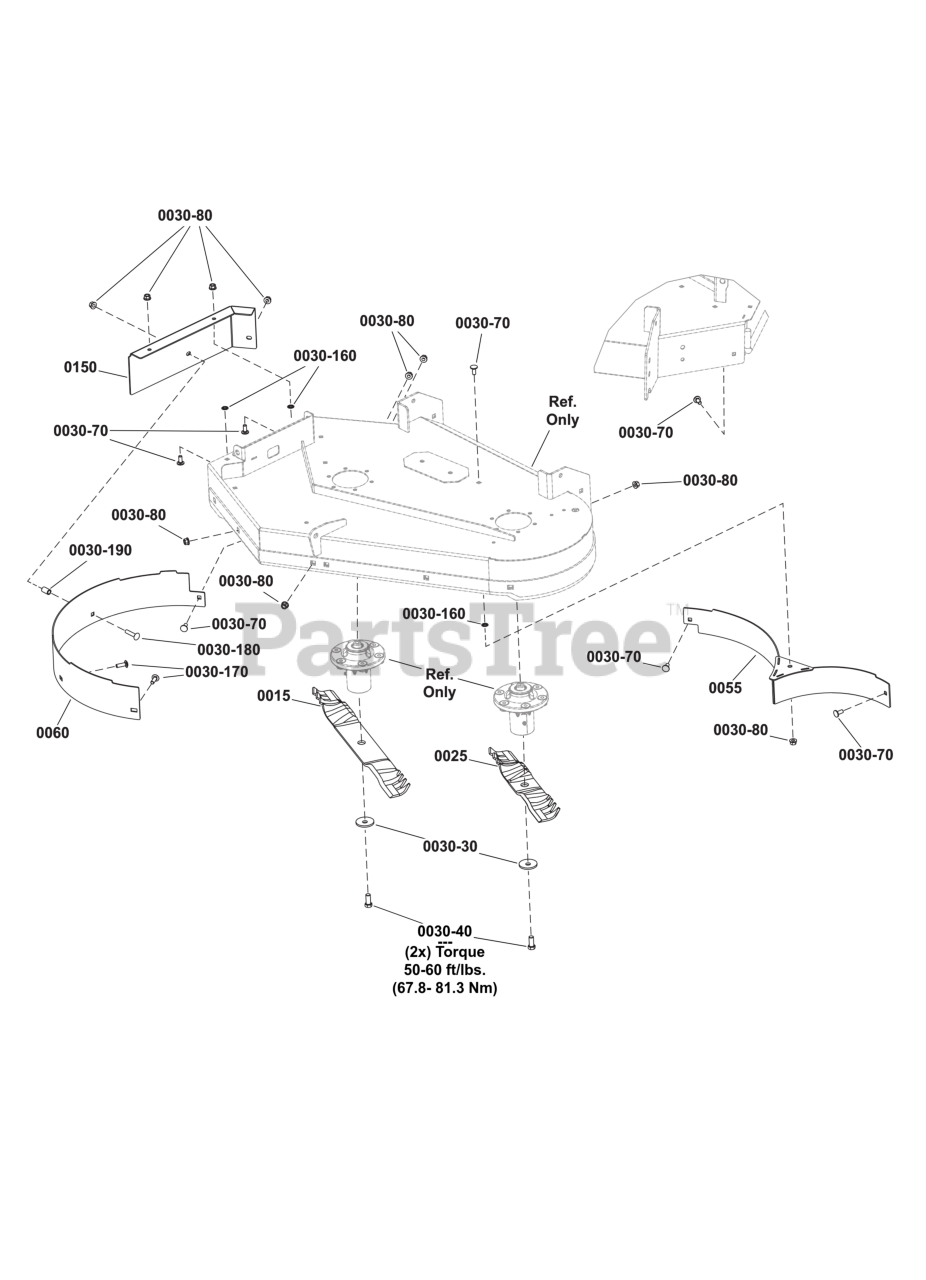

36" Rear Discharge Parts Diagram

  • Title

0015

Snapper 84002756

BLADE, Mulching, 22.24 LG

$52.99

$

In Stock, only 1 left!

0

0025

Snapper 84002757

BLADE, Mulching, 14.42 LG

$45.99

$

Usually ships in 2-12 days

0

0030-30

Snapper 1656916SM

WASHER, SPRING 0.475I

$7.49

$

In Stock, Qty 20+

0

0030-40

Snapper 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 20+

0

0030-70

Snapper 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 20+

0

0030-80

Snapper 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0030-160

Snapper 703297

RETAINER, GR5, 5/16

$3.99

$

In Stock, Qty 20+

0

0030-170

Snapper 703800

BOLT, CRRG, 5/16-18X1

$3.99

$

In Stock, only 4 left!

0

0030-180

Snapper 703296

BOLT, 5/16-18X1.5

$4.49

$

In Stock, only 4 left!

0

0030-190

Snapper 5103660YP

SPACER, .32X.50 X.83

$4.99

$

In Stock, only 4 left!

0

0055

Snapper 84008241

WELDMENT, REAR BAFFLE, LOW, 36CC, BLK

$163.99

$

Usually ships in 0 days

0

0060

Snapper 84008239

RING, FRONT BAFFLE, RH, 36CC, PECO BLACK

$152.99

$

Usually ships in 0 days

0

0150

Snapper 84008238

PLATE, BLOCK-OFF, 36CC, PECO BLACK

$44.99

$

Usually ships in 0 days

0
