ZTX 105 (2692024-00) - Snapper 36"/91cm Zero-Turn Mower, 7200 Series Briggs & Stratton 36" Mower Deck - Guarding Group Parts Diagram

36"/91cm Zero-Turn Mower, 7200 Series Briggs & Stratton

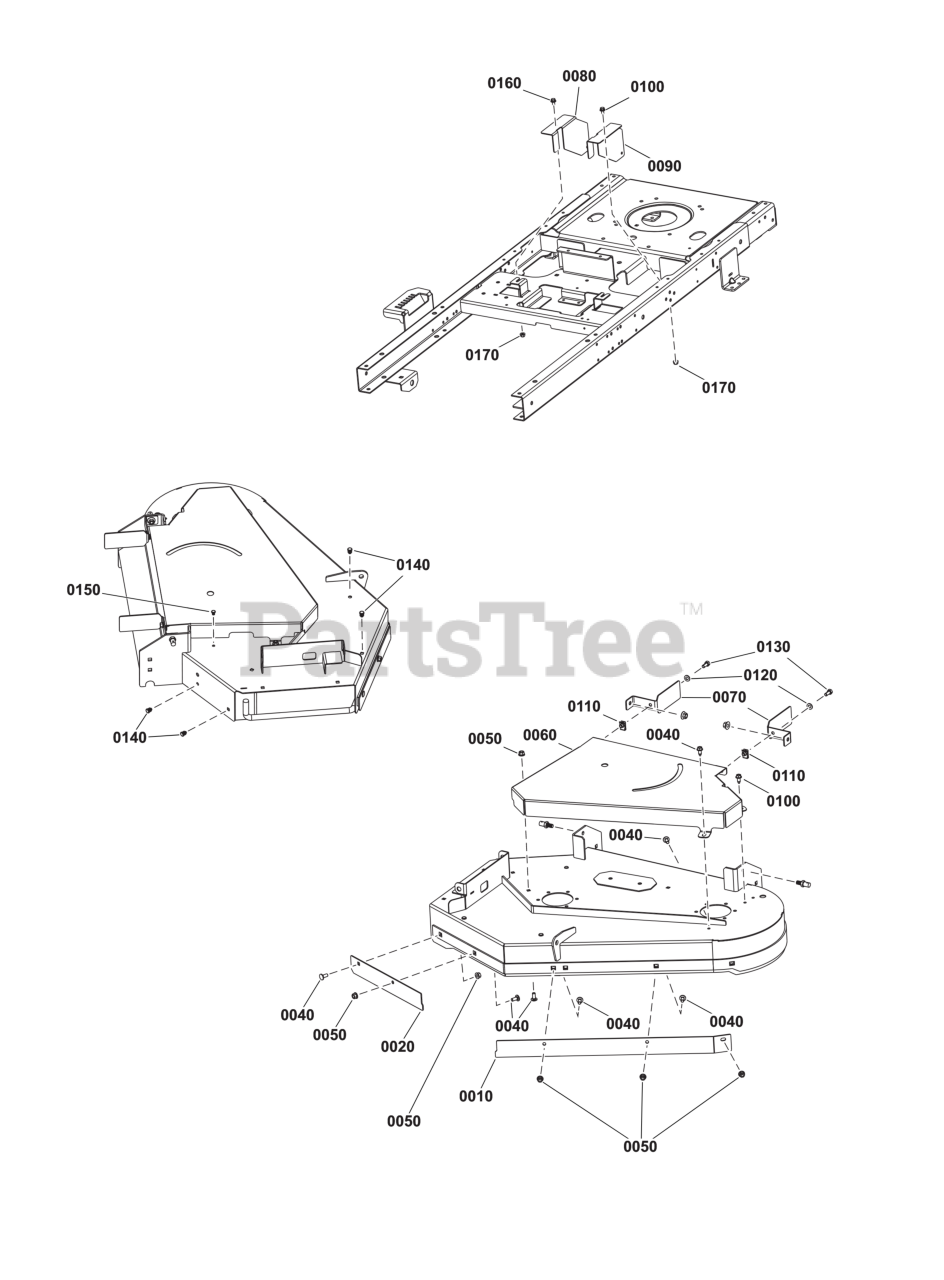

36" Mower Deck - Guarding Group Parts Diagram

  • Title

0010

Snapper 84008475

BAFFLE, Front LH

$

$

Currently unavailable

0020

Snapper 84008476

BAFFLE, Front RH

$

$

Currently unavailable

0040

Snapper 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 16

0

0050

Snapper 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0060

Snapper 84008477

COVER, Pulley, 36 Fab, Black

$

$

Currently unavailable

0070

Snapper 1760095AYP

SUPPORT, Pulley Cover, 42" Mower Deck,Black

$25.99

$

Usually ships in 2-12 days

0

0080

Snapper 84008242

GUARD, Frame, RH 36CC Black

$

$

Currently unavailable

0090

Snapper 84008243

GUARD, Frame, LH 36CC Black

$

$

Currently unavailable

0100

Snapper 703228

SCREW, 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

0110

Snapper 5022308SM

BODY CLIP, 5/16-18 X

$5.99

$

In Stock, only 2 left!

0

0120

Snapper 703350

WASHER

$4.49

$

In Stock, only 3 left!

0

0130

Snapper 5025011X6SM

BOLT, 5/16-18 X 3/4"

$3.99

$

In Stock, only 4 left!

0

0140

Snapper 7046780SM

PLUG, Hole, .44" OD

$4.99

$

Usually ships in 2-12 days

0

0150

Snapper 7073293YP

PLUG, Hole, .30 OD

$2.99

$

Usually ships in 2-12 days

0

0160

Snapper 1931646SM

SCREW, Hex Flange, 1/4-20 X 1/2

$4.49

$

In Stock, only 2 left!

0

0170

Snapper 5025391FS

NUT

$3.99

$

In Stock, Qty 20+

0
