ZTX 105 (2691707-01) - Snapper 36"/91cm Zero-Turn Mower, 7200 Series Briggs & Stratton Lift Group (2992568) Parts Diagram

36"/91cm Zero-Turn Mower, 7200 Series Briggs & Stratton

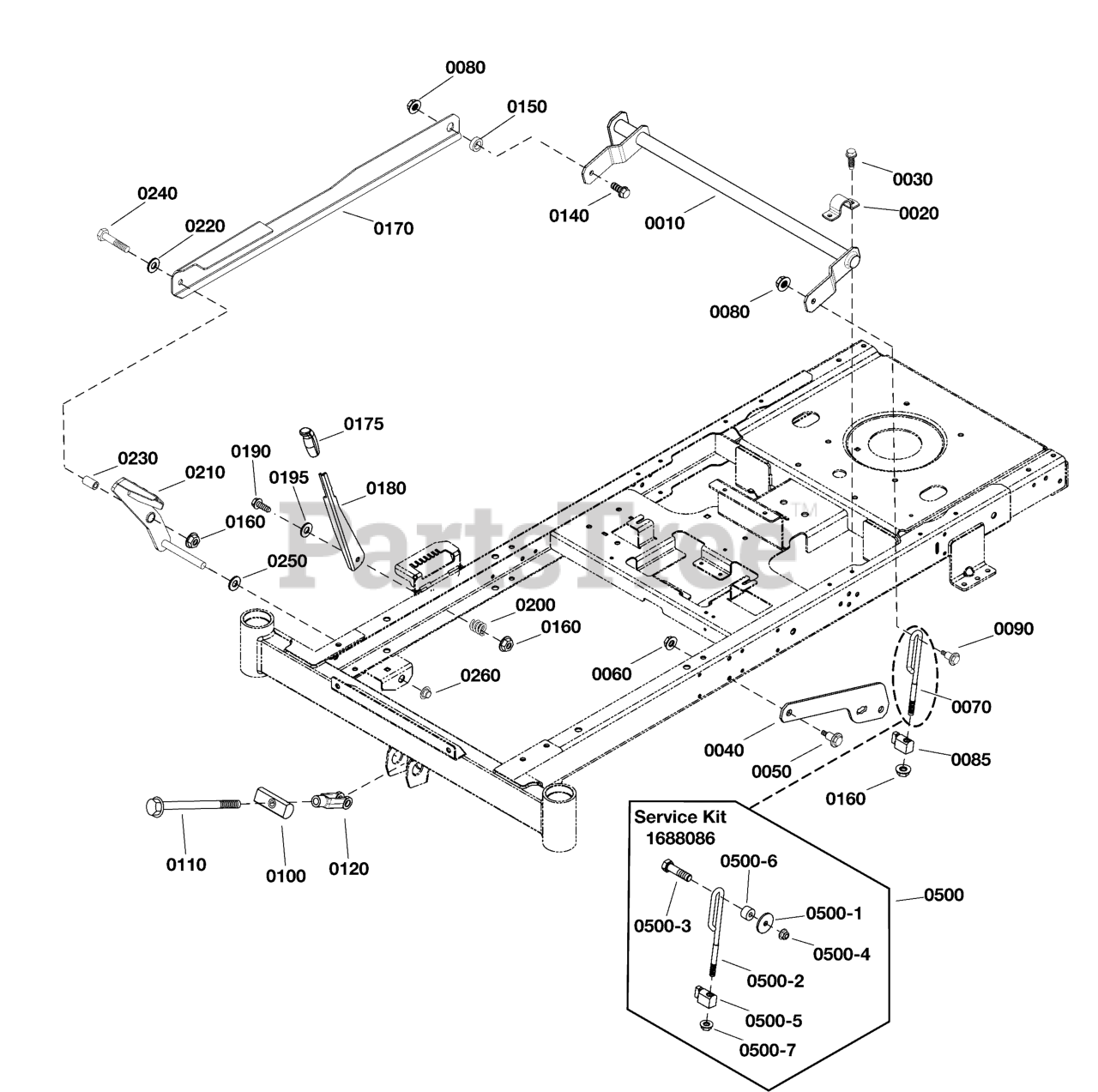

Lift Group (2992568) Parts Diagram

  • Title

0010

Snapper 84001704

SHAFT, Lift

$100.99

$

Usually ships in 2-12 days

0

0020

Snapper 1761690HYP

STRAP, Rocker Shaft

$7.99

$

Usually ships in 2-12 days

0

0030

Snapper 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 5

0

0040

Snapper 1757953AYP

ARM, Lift

$34.99

$

In Stock, only 2 left!

0

0050

Snapper 1732426SM

BOLT, Shoulder, 5/16-18

$4.49

$

In Stock, only 1 left!

0

0060

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0070

Snapper 1757936YP

ROD, Lift
(Superseded to 1688086)

$21.99

$

In Stock, Qty 20+

0

0080

Snapper 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0085

Snapper 1731894SM

TRUNNION

$9.99

$

In Stock, only 3 left!

0

0090

Snapper 009X51MA

BOLT, Shoulder, 3/8-16

$4.99

$

In Stock, only 2 left!

0

0100

Snapper 1757955YP

PIVOT

$13.99

$

In Stock, only 1 left!

0

0110

Snapper 1757954YP

ROD, Hitch

$18.99

$

In Stock, only 1 left!

0

0120

Snapper 5023174SM

CLEVIS, 1/2-20

$16.99

$

Usually ships in 2-12 days

0

0140

Snapper 704038

SCREW, Hex Flange, Whiz Lock, 3/8-16 x 1

$5.99

$

In Stock, only 2 left!

0

0150

Snapper 1663752SM

SPACER, 25/64 x 5/8 x 3/16

$5.99

$

In Stock, only 2 left!

0

0160

Snapper 703893

NUT, Hex, Flange, Two Way Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0170

Snapper 84001705

LINK, Lift

$52.99

$

Usually ships in 2-12 days

0

0175

Snapper 84001706

GRIP

$7.99

$

Usually ships in 2-12 days

0

0180

Snapper 84001707

LEVER, Height Adjust

$20.99

$

Usually ships in 2-12 days

0

0190

Snapper 770137

BOLT, Flange, 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

0195

Snapper 704128

WASHER, Flat

$4.99

$

In Stock, Qty 11

0

0200

Snapper 2162085SM

SPRING, Compression

$6.99

$

In Stock, Qty 7

0

0210

Snapper 84001708

PEDAL

$77.99

$

Usually ships in 2-12 days

0

0220

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0230

Snapper 1756612YP

BUSHING

$5.49

$

Usually ships in 2-12 days

0

0240

Snapper 703589

CAPSCREW, Hex Head, 3/8-16 X 2, GR5

$4.49

$

In Stock, only 1 left!

0

0250

Snapper 703580

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

0260

Snapper 771009

PUSHNUT, 5/8

$3.99

$

In Stock, Qty 20+

0

0500

Snapper 1688086

LIFT KIT, ZT

$21.99

$

In Stock, Qty 20+

0

0500-1

Snapper 5025305SM

WASHER, .41 X 1.75 X .14

$3.99

$

In Stock, only 2 left!

0

0500-2

Snapper 84003818

ROD, Lift

$12.99

$

In Stock, only 1 left!

0

0500-3

Snapper 703406

CAPSCREW, Hex Head, 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, only 1 left!

0

0500-4

Snapper 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0500-5

Snapper 84003820

TRUNNION

$6.99

$

Usually ships in 2-12 days

0

0500-6

Snapper 5100334SM

SPACER

$7.49

$

In Stock, Qty 5

0

0500-7

Snapper 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 2 left!

0
