ZTT-2150 (13AJ626H190) - White Outdoor 46" Zero-Turn Tractor (2001) Electrical Parts Diagram

46" Zero-Turn Tractor

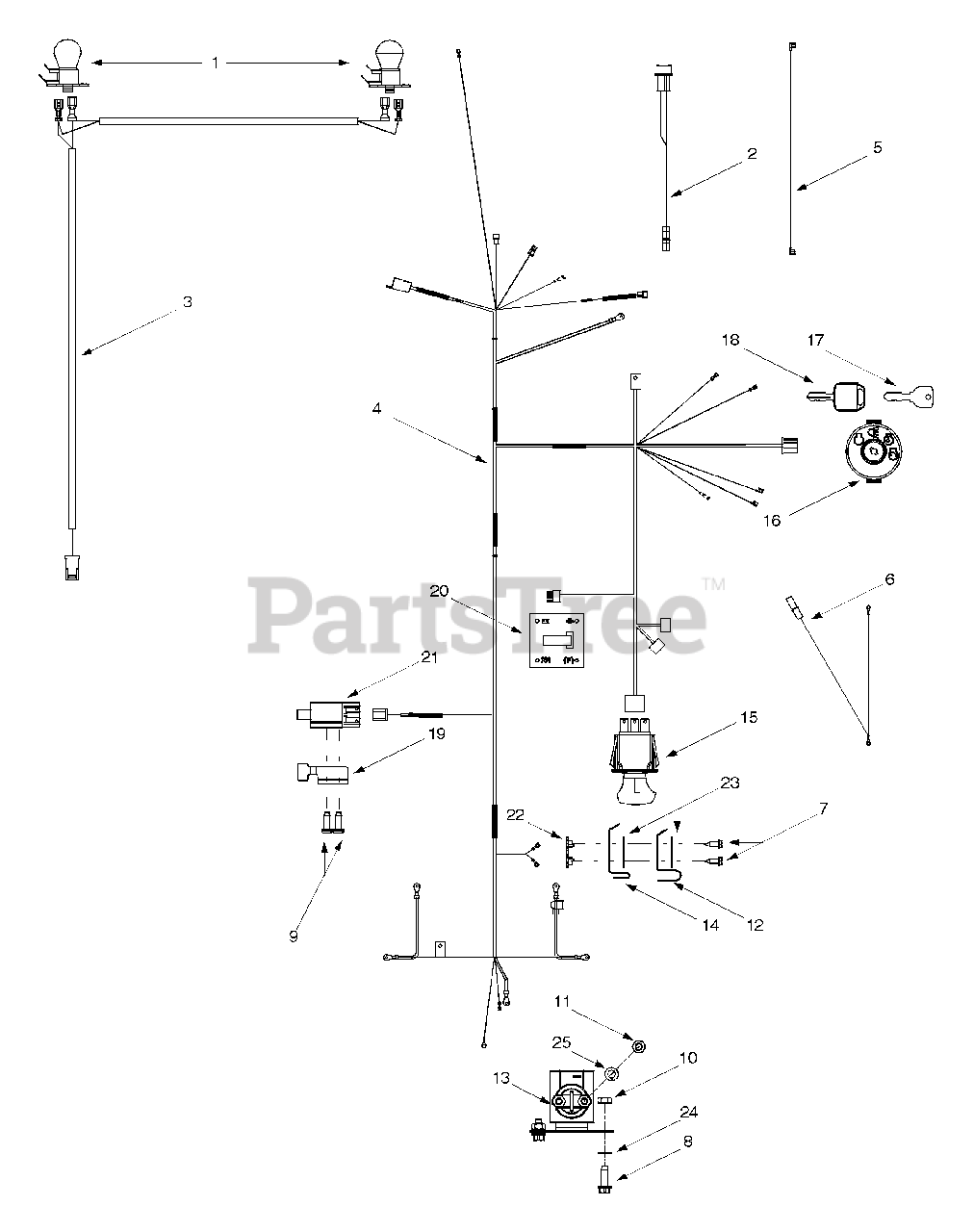

Electrical Parts Diagram

  • Title
1

White Outdoor 625-0051

Bulb/Socket Headlight Assembly
(Superseded to 925-0051)

$16.99

$

In Stock, only 1 left!

0

2

White Outdoor 629-0126

Wire Harness, Afterfire Solenoid, #18 x 5

$

$

Not available

3

White Outdoor 629-0469A

Wire Harness, Headlight
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

4

White Outdoor 629-1055

Wire Harness, Main

$

$

Not available

5

White Outdoor 629-1077

Wire Assembly, Reverse Jumper

$

$

Not available

6

White Outdoor 629-1083

Wire Assembly, Ground Jumper

$

$

Not available

7

White Outdoor 710-0227

Self-tapping Screw, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-1823

Pan Phillips Screw, #12-16 x .625

$3.99

$

Usually ships in 3-6 days

0

10

White Outdoor 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

11

White Outdoor 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 17

0

12

White Outdoor 725-1303

Outer Seat Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

13

White Outdoor 725-1426

12V Solenoid, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

14

White Outdoor 725-1439

Inner Seat Spring Switch

$8.49

$

In Stock, Qty 10

0

15

White Outdoor 725-1716

Electric PTO Switch
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 13

0

16

White Outdoor 725-1741

Ignition Switch
(Superseded to 925-1741)

$45.99

$

Usually ships in 3-6 days

0

17

White Outdoor 725-1744

Ignition Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

18

White Outdoor 725-1745

Ignition Key w/ Plastic Cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

19

White Outdoor 725-1774

Parking Brake Switch Spring

$

$

Not available

20

White Outdoor 725-1976

Systems Indicator Monitor, Hour Meter
(Superseded to 925-1976)

$

$

Not available

21

MTD 725-3223

Plunger Switch (Parking Brake)

$18.99

$

In Stock, only 1 left!

0

22

White Outdoor 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

23

White Outdoor 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

24

White Outdoor 736-0222

External Lock Washer, 1/4

$5.99

$

In Stock, only 3 left!

0

25

White Outdoor 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0
