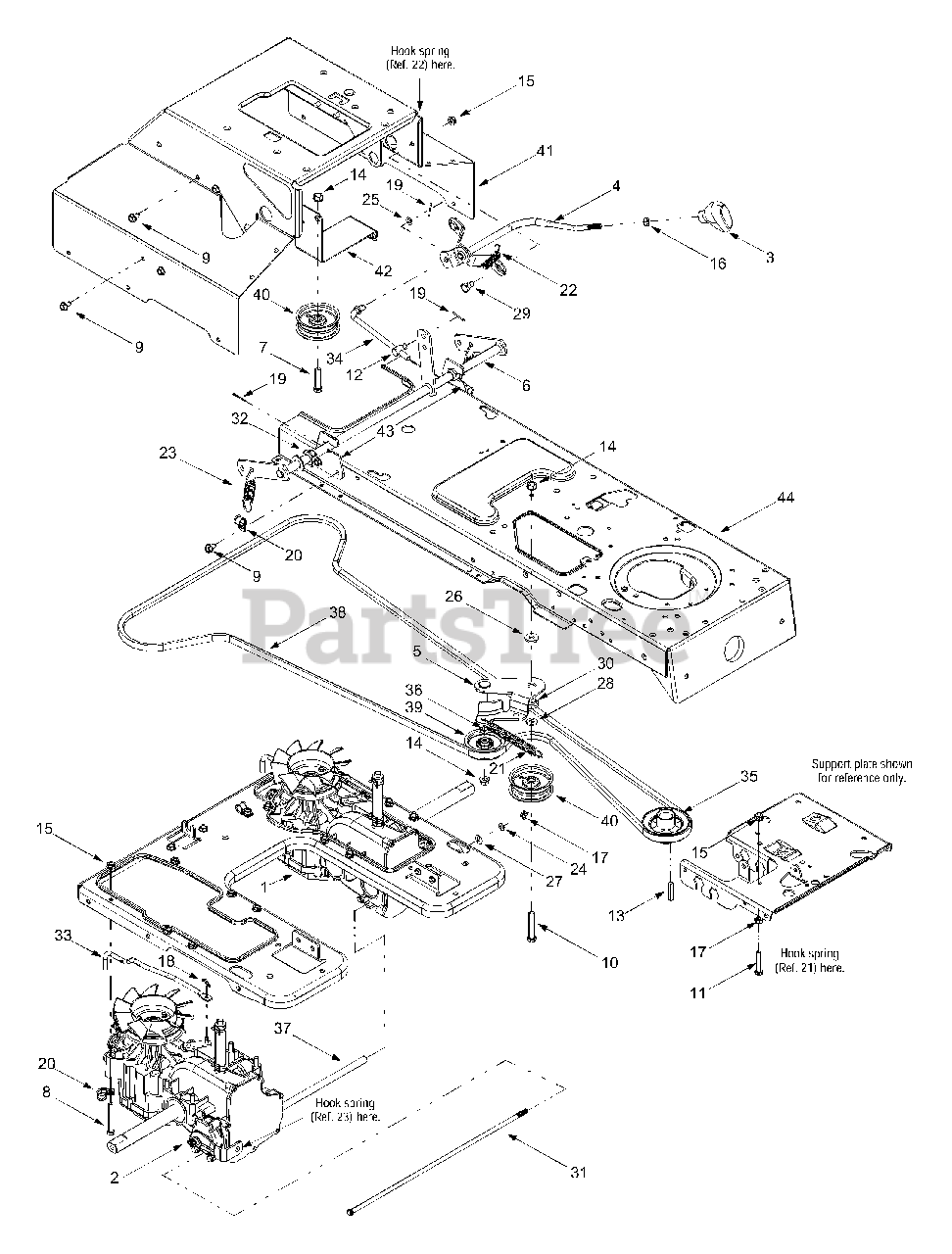

ZTT-1850 - White Outdoor 42" Zero-Turn Tractor (2001) Drive & Transmission Parts Diagram

42" Zero-Turn Tractor

Drive & Transmission Parts Diagram

  • Title

1

MTD 918-0437

LH IZT Transmission

$

$

Not available

2

MTD 918-0438

RH IZT Transmission

$

$

Not available

3

MTD 931-0009A

Knob

$14.99

$

In Stock, only 4 left!

0

4

MTD 647-0051

Brake Lever Assembly

Note: NLA

$

$

Not available

5

MTD 683-0251

Double-idler Bracket

Note: NLA

$

$

Not available

6

MTD 683-0452A

Brake Bracket Assembly

$

$

Not available

7

MTD 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

8

MTD 710-0378

Hex Cap Screw, 5/16-18 x 2.5

$4.99

$

In Stock, only 4 left!

0

9

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-3011

Hex Cap Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

11

MTD 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 11

0

12

MTD 911-0832

Ferrule, 3/8-24 x .375

$15.99

$

In Stock, only 4 left!

0

13

MTD 714-0118

Square Key, 1/4 x 1.5

$6.99

$

In Stock, only 4 left!

0

14

MTD 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

15

MTD 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

16

MTD 912-3008

Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 19

0

17

MTD 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

18

MTD 914-0104

Internal Cotter Pin, .072 x 1.12
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

19

MTD 914-0111

Cotter Pin, 3/32 x 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

20

MTD 726-0272

Clamp, 9/16

$7.49

$

Usually ships in 3-6 days

0

21

MTD 932-0384

Extension Spring, .62 x 6.12

$14.99

$

In Stock, Qty 12

0

22

MTD 732-0433

Extension Spring, .5 x 2.75

$

$

Not available

23

MTD 732-1154A

Disc Brake Spring

$

$

Not available

24

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

25

MTD 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

26

MTD 736-0258

Flat Washer, .385 x 1.0 x .135

$4.49

$

Usually ships in 3-6 days

0

27

MTD 936-0275

Flat Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

28

MTD 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, only 1 left!

0

29

MTD 938-0141

Shoulder Screw, .435 x .350, 5/16-18

$7.49

$

In Stock, Qty 7

0

30

MTD 738-0372B

Shoulder Spacer, .380

$9.49

$

In Stock, Qty 20+

0

31

MTD 738-1155

Rod, .312 x 18.437

Note: NLA

$

$

Not available

32

MTD 741-3065B

Split Hex Flange Bearing, .628

$8.49

$

In Stock, Qty 11

0

33

MTD 747-1222

Hydro Bypass Rod

$

$

Not available

34

MTD 747-1263A

Brake Link Rod

Note: NLA

$

$

Not available

35

MTD 756-0978B

Engine Pulley

$66.99

$

In Stock, Qty 13

0

36

MTD 950-0535

Spacer, .376 x .625 x .220

$4.49

$

In Stock, Qty 20+

0

37

MTD 750-1286

Spacer, .334 x .50 x 14.88

Note: NLA

$

$

Not available

38

MTD 954-0491

Drive Belt, Poly

$88.99

$

Usually ships in 3-6 days

0

39

MTD 756-04209

V-Idler Pulley, 3.06

$22.99

$

In Stock, Qty 20+

0

40

MTD 756-04224

Flat Idler, 2.75

$26.99

$

In Stock, Qty 20+

0

41

MTD 783-1044

Upper Frame

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-1044-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-1044-0665

No Longer Available FRAME-UPPE - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

MTD 783-1145

Idler Support Bracket

Note: NLA

Variations

MTD 783-1145-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

43

MTD 783-1305

Brake Pivot Support Bracket

Note: NLA

Variations

MTD 783-1305-0650

No Longer Available BRACKET-BR - RED METALLIC (0650)

$

$

Not available

MTD 783-1305-0665

No Longer Available BRACKET-BR - YARDMAN GREEN (0665)

$

$

Not available

$

$

44

MTD 683-0314

Lower Frame

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0314-0650

No Longer Available FRAME ASM - RED METALLIC (0650)

$

$

Not available

MTD 683-0314-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$
