ZTT-1850 - White Outdoor 42" Zero-Turn Tractor (2001) 42-Inch Deck Assembly Parts Diagram

42" Zero-Turn Tractor

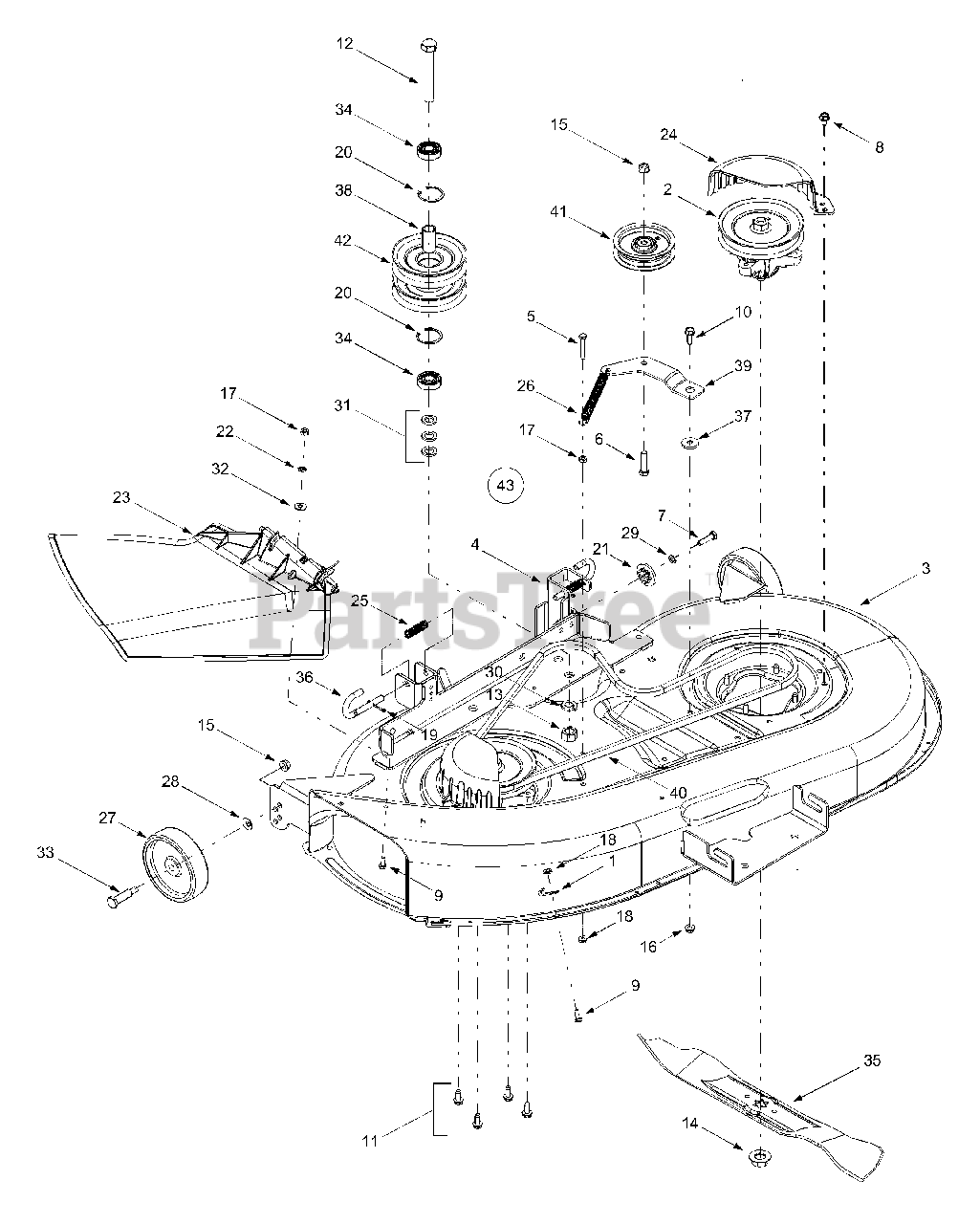

42-Inch Deck Assembly Parts Diagram

  • Title

1

MTD 96606

Retainer Hook

$7.49

$

In Stock, Qty 7

0

2

MTD 918-0574C

Spindle Assembly, 5.75 Dia. w/ Fitting

$

$

Not available

2

MTD 756-0980

Pulley Only

$

$

Not available

3

MTD 683-0198D

42-inch Deck Shell
(Superseded to 983-0198G)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0198D-0637

SHELL ASM-42" DECK - POWDER BLACK (0637)

$580.99

$

Usually ships in 3-6 days

0

MTD 683-0198D-0650

SHELL ASM-42" DECK - RED METALLIC (0650)

$580.99

$

Usually ships in 3-6 days

0

MTD 683-0198D-0665

SHELL ASM-42" DECK - YARDMAN GREEN (0665)

$580.99

$

Usually ships in 3-6 days

0

MTD 683-0198D-0691

SHELL ASM-42" DECK - BLACK JACK (0691)

$580.99

$

Usually ships in 3-6 days

0

MTD 683-0198D-0716

42" DECK SHELL - CUB YELLOW-99 (0716)

$580.99

$

Usually ships in 3-6 days

0

$580.99

$

Usually ships in 3-6 days

0

4

MTD 683-0254

Deck Adjustment Bracket w/ Weld Nut
(Superseded to 683-0254B)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0254-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

5

MTD 710-0136

Hex Cap Screw, 1/4-20 x 1.75

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0520

Hex Cap Screw, 1/4-20 x 1.5

$4.49

$

In Stock, Qty 5

0

7

MTD 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

8

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-1238

Hex Head Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-3151

Hex Cap Screw, 5/8-18 x .875

$20.99

$

In Stock, Qty 12

0

13

MTD 712-0337

Hex Nut, 5/8-18

$4.49

$

In Stock, only 4 left!

0

14

MTD 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

15

MTD 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

16

MTD 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-3006

HEX NUT

$4.99

$

In Stock, Qty 17

0

18

MTD 912-3027

Hex Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

19

MTD 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

20

MTD 916-3020

Internal Snap Ring

$4.99

$

In Stock, Qty 20+

0

21

MTD 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 9

0

22

MTD 726-0233

Push Nut. .25 x .5

$4.49

$

In Stock, Qty 20+

0

23

MTD 931-1032B

Side Discharge Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 5

0

24

MTD 731-2486A

Belt Cover

$22.99

$

In Stock, only 1 left!

0

25

MTD 932-0306A

Compression Spring, .406 x .531 x 1.75

$8.49

$

In Stock, only 2 left!

0

26

MTD 932-0470A

Extension Spring, .50 x 4.74

$9.99

$

In Stock, only 4 left!

0

27

MTD 734-0973

PLASTIC WHEEL 5X1.38

$12.99

$

In Stock, Qty 20+

0

28

MTD 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

29

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

30

MTD 936-0158

Lock Washer, 5/8

$4.49

$

In Stock, Qty 11

0

31

MTD 736-0162

Flat Washer, .64 x 1.0 x .12

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0270

SPRING WASHER BELL

$3.99

$

In Stock, Qty 20+

0

33

MTD 938-0373

Shoulder Screw, .498 x 1.53

$9.49

$

In Stock, Qty 20+

0

34

MTD 941-0524A

Bearing, .625 x 1.574 x .470

$23.99

$

In Stock, Qty 20+

0

35

MTD 942-0616A

Three-in-one Blade, Star Center, 21.23"

$31.99

$

In Stock, Qty 20+

0

36

MTD 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

37

MTD 948-0331

Shoulder Spacer, .625 x .324

$

$

Not available

38

MTD 950-0932A

Spacer, .635 x .88 x 1.72

$20.99

$

In Stock, Qty 11

0

39

MTD 783-1291-0637

Idler Bracket
(Superseded to 783-1291A-0637)

$12.99

$

In Stock, only 3 left!

0

40

MTD 954-0498

Deck Belt

$44.99

$

In Stock, Qty 7

0

41

MTD 756-0627D

Idler Pulley, 3.5

$30.99

$

In Stock, Qty 20+

0

42

MTD 756-1202

Double Pulley, 5.0

$95.99

$

In Stock, only 2 left!

0

43

MTD 753-0896

42-inch Deck Assembly Complete

Note: NLA

Variations

MTD 753-0896-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 753-0896-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 753-0896-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 753-0896-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$
