ZTT-1850 (13AT626G190) - White Outdoor 42" Zero-Turn Tractor (2001) General Assembly - Front Parts Diagram

42" Zero-Turn Tractor

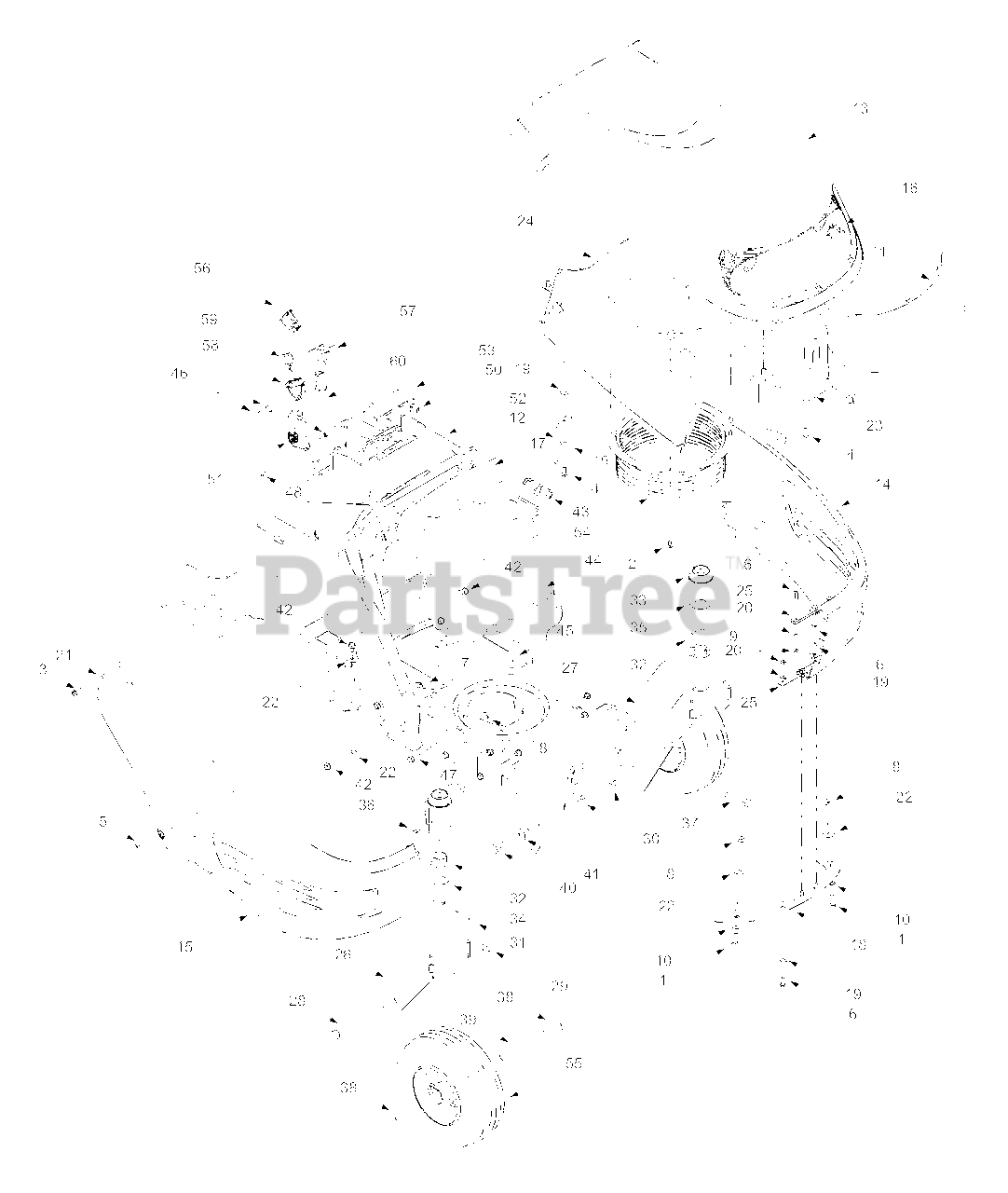

General Assembly - Front Parts Diagram

  • Title

1

White Outdoor 710-0376

Hex Cap Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

2

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0895

Self-tapping Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 10

0

5

White Outdoor 710-0924

Pan Phillips Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

8

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 17

0

10

White Outdoor 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0

11

White Outdoor 731-2286

Head Light Lens
(Superseded to 931-2286)

$

$

Not available

12

White Outdoor 747-1209

Hood Latch Rod
(Superseded to 747-1209A)

$22.99

$

Usually ships in 3-6 days

0

13

White Outdoor 731-2283

Hood, 6-style (Gray)
(Superseded to 931-2283A)

$

$

Not available

14

White Outdoor 731-2307

LH Side Panel, 6-style (Gray)
(Superseded to 931-05473)

$141.99

$

In Stock, only 1 left!

0

15

White Outdoor 731-2308

RH Side Panel, 6-style (Gray)
(Superseded to 931-2308B)

$135.99

$

In Stock, only 1 left!

0

16

White Outdoor 625-0051

Head Light Assembly
(Superseded to 925-0051)

$16.99

$

In Stock, only 1 left!

0

17

White Outdoor 783-1350

Heat Shield

Variations

White Outdoor 783-1350-0637

SHIELD-HEAT - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 731-2272

Heat Shield

$

$

Not available

19

White Outdoor 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

21

White Outdoor 736-0342

Flat Washer, .283 x .75 x .030

$7.49

$

Usually ships in 3-6 days

0

22

White Outdoor 736-3078

Flat Washer, .349 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 683-0305

Hood Bracket Assembly
(Superseded to 683-0305-0637)

Variations

White Outdoor 683-0305-0637

Hood Bracket Assembly, 6 ST - POWDER BLACK (0637)

$

$

Not available

$

$

24

White Outdoor 731-2284

Hood Plenum

$63.99

$

Usually ships in 3-6 days

0

25

White Outdoor 783-1000A

Grille Support Bracket

Variations

White Outdoor 783-1000A-0637

BRACKET-GRILLE SUP - POWDER BLACK (0637)

$

$

Not available

$

$

26

White Outdoor 683-0425

Castor Assembly

Variations

White Outdoor 683-0425-0650

CASTER ASSY - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0425-0665

CASTER ASSY - YARDMAN GREEN (0665)

$

$

Not available

$94.99

$

Usually ships in 3-6 days

0

27

White Outdoor 683-0453

Pivot Bar Axle Assembly

Variations

White Outdoor 683-0453-0650

AXLE ASSY-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0453-0665

AXLE ASSY-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

$

$

28

White Outdoor 710-0506

Hex Cap Screw, 1/2-20 x 5.5

$10.99

$

In Stock, only 2 left!

0

29

White Outdoor 712-0239

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 20+

0

30

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 714-3001

Cotter Pin, .125 x 1.5
(Superseded to 914-3001)

$3.99

$

Usually ships in 3-6 days

0

32

White Outdoor 731-0374

Flange Bearing
(Superseded to 931-0374)

$7.49

$

In Stock, only 3 left!

0

33

White Outdoor 731-0556

Plastic Cap

$4.99

$

In Stock, only 4 left!

0

34

White Outdoor 736-0277

Flat Washer, 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 736-0345

Flat Washer, 1.010 x 2.0 x .065
(Superseded to 936-0345)

$4.49

$

In Stock, Qty 12

0

36

White Outdoor 737-0280

Grease Fitting, 1/4-28

$7.99

$

In Stock, Qty 8

0

37

White Outdoor 738-1011

Shoulder Screw, .50 x 2.23, 3/8-16
(Superseded to 738-1011A)

$8.49

$

In Stock, Qty 11

0

38

White Outdoor 750-0456

Spacer, .790 x .347

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 750-3197A

Wheel Spacer

$21.99

$

In Stock, Qty 13

0

40

White Outdoor 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

42

White Outdoor 710-0604A

Self-tapping Screw, 16-18 x .625

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 751-0603

Fuel Tank Cap (fits both fuel tanks)
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

44

White Outdoor 751-0659A

Fuel Tank, Two-gallon (shown)
(Superseded to 751-0659D)

$84.99

$

In Stock, Qty 5

0

White Outdoor 751-0658B

Fuel Tank, Three-gallon (not shown)

$

$

Not available

45

White Outdoor 683-0316

Dash Support Assembly

Variations

White Outdoor 683-0316-0650

SUPPORT ASSY-DASH - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0316-0665

No Longer Available SUPPORT ASM-DASH - YARDMAN GREEN (0665)

$

$

Not available

$

$

46

White Outdoor 710-1017

Torx Self-tapping Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

47

White Outdoor 710-1238

Hex Head Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 710-3217

Torx Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

49

White Outdoor 712-0142

Hex Nut, 8-32

$4.49

$

In Stock, Qty 10

0

50

White Outdoor 720-0425

Cap Plug, .812

$

$

Not available

51

White Outdoor 731-1857

Throttle Control Lever

$14.99

$

In Stock, only 4 left!

0

52

White Outdoor 731-2321

Dash Panel

$

$

Not available

53

White Outdoor 731-2483

Dash Cap

$

$

Not available

54

White Outdoor 731-2232

Intake Bellow (ZTT-1850)
(Superseded to 731-2232A)

$

$

Not available

White Outdoor 731-2234

Intake Bellow (ZTT-2150)
(Superseded to 731-2234A)

$29.99

$

Usually ships in 3-6 days

0

55

White Outdoor 634-3169

Wheel Assembly, 11 x 4 x 5 (Yellow Rim)

$

$

Not available

56

White Outdoor 725-1716

Electric PTO Switch
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 13

0

57

White Outdoor 725-1976

Systems Indicator Monitor/Hour Meter
(Superseded to 925-1976)

$

$

Not available

58

White Outdoor 725-1741

Ignition Switch
(Superseded to 925-1741)

$45.99

$

Usually ships in 3-6 days

0

59

White Outdoor 725-1745

Ignition Key w/ Plastic Cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

60

White Outdoor 746-1134

Choke Control/Cable (ZTT-2150)

$

$

Not available
