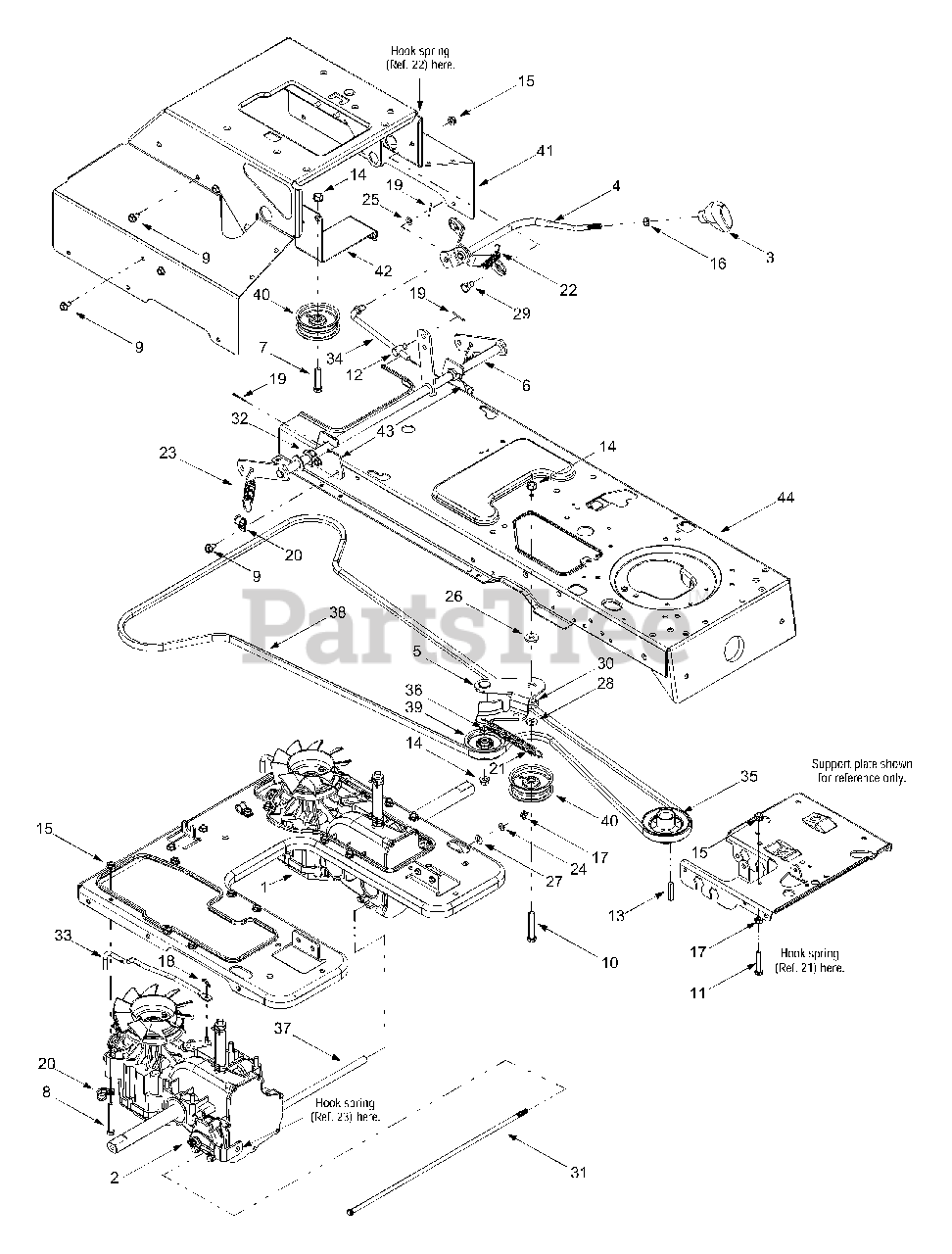

ZTT-1850 (13AT626G190) - White Outdoor 42" Zero-Turn Tractor (2001) Drive & Transmission Parts Diagram

42" Zero-Turn Tractor

Drive & Transmission Parts Diagram

  • Title

1

White Outdoor 618-0437

LH IZT Transmission
(Superseded to 918-0437)

$

$

Not available

2

White Outdoor 618-0438

RH IZT Transmission
(Superseded to 918-0438)

$

$

Not available

3

White Outdoor 631-0009A

Knob
(Superseded to 931-0009A)

$14.99

$

In Stock, only 4 left!

0

4

White Outdoor 647-0051

Brake Lever Assembly

$

$

Not available

5

White Outdoor 683-0251

Double-idler Bracket

$

$

Not available

6

White Outdoor 683-0452A

Brake Bracket Assembly

$

$

Not available

7

White Outdoor 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0378

Hex Cap Screw, 5/16-18 x 2.5

$4.99

$

In Stock, only 4 left!

0

9

White Outdoor 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-3011

Hex Cap Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

12

White Outdoor 711-0832

Ferrule, 3/8-24 x .375
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

13

White Outdoor 714-0118

Square Key, 1/4 x 1.5

$6.99

$

In Stock, only 4 left!

0

14

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

15

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 712-3008

Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 16

0

17

White Outdoor 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 714-0104

Internal Cotter Pin, .072 x 1.12

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 714-0111

Cotter Pin, 3/32 x 1.0

$4.99

$

In Stock, Qty 13

0

20

White Outdoor 726-0272

Clamp, 9/16

$7.49

$

Usually ships in 3-6 days

0

21

White Outdoor 732-0384

Extension Spring, .62 x 6.12
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

22

White Outdoor 732-0433

Extension Spring, .5 x 2.75

$

$

Not available

23

White Outdoor 732-1154A

Disc Brake Spring

$

$

Not available

24

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

White Outdoor 736-0140

Flat Washer, .385 x .62 x .063

$7.49

$

In Stock, Qty 7

0

26

White Outdoor 736-0258

Flat Washer, .385 x 1.0 x .135

$4.49

$

In Stock, only 2 left!

0

27

White Outdoor 736-0275

Flat Washer, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

28

White Outdoor 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, Qty 20+

0

29

White Outdoor 738-0141

Shoulder Screw, .435 x .350, 5/16-18
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

30

White Outdoor 738-0372

Shoulder Spacer, .380
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

31

White Outdoor 738-1155

Rod, .312 x 18.437

$

$

Not available

32

White Outdoor 741-3065A

Split Hex Flange Bearing, .628
(Superseded to 741-3065B)

$8.49

$

In Stock, Qty 20+

0

33

White Outdoor 747-1222

Hydro Bypass Rod

$

$

Not available

34

White Outdoor 747-1263A

Brake Link Rod

$

$

Not available

35

White Outdoor 756-0978A

Engine Pulley
(Superseded to 756-0978B)

$66.99

$

In Stock, Qty 13

0

36

White Outdoor 750-0535

Spacer, .376 x .625 x .220
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 750-1286

Spacer, .334 x .50 x 14.88

$

$

Not available

38

White Outdoor 754-0491

Drive Belt, Poly
(Superseded to 954-0491)

$88.99

$

Usually ships in 3-6 days

0

39

White Outdoor 756-0116

V-Idler Pulley, 3.06
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

40

White Outdoor 756-0981A

Flat Idler, 2.75
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

41

White Outdoor 783-1044

Upper Frame

Variations

White Outdoor 783-1044-0650

FRAME-UPPER - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-1044-0665

FRAME-UPPER - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

White Outdoor 783-1145

Idler Support Bracket

Variations

White Outdoor 783-1145-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

43

White Outdoor 783-1305

Brake Pivot Support Bracket

Variations

White Outdoor 783-1305-0650

BRACKET-BRAKE PIVOT - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-1305-0665

BRACKET-BRAKE PIVOT - YARDMAN GREEN (0665)

$

$

Not available

$

$

44

White Outdoor 683-0314

Lower Frame

Variations

White Outdoor 683-0314-0650

FRAME ASSY - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0314-0665

FRAME ASSY - YARDMAN GREEN (0665)

$

$

Not available

$

$
