ZTS2-60 KH FAB (17ASGGY5A10) - Cub Cadet Ultima 60" Zero-Turn Mower, Fab Deck, Kohler (2023) Deck Lift Parts Diagram

Ultima 60" Zero-Turn Mower, Fab Deck, Kohler

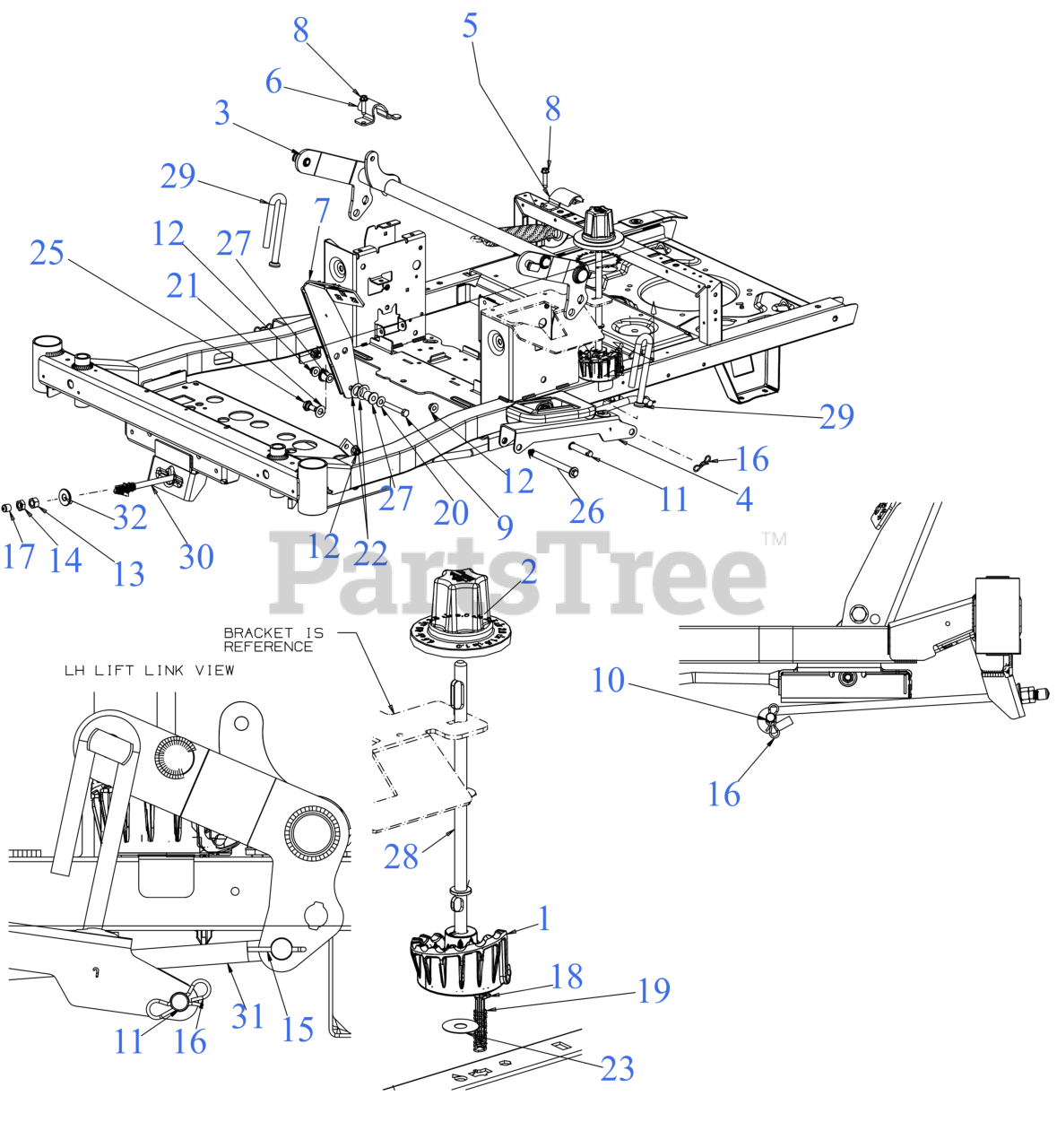

Deck Lift Parts Diagram

  • Title
1

Cub Cadet 619P06365

DECK LIFT CUP

$31.99

$

In Stock, only 1 left!

0

2

Cub Cadet 631P06839

DECK HEIGHT ADJUSTMENT KNOB

$11.99

$

In Stock, only 1 left!

0

3

Cub Cadet 647-05744

LIFT SHAFT ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

$77.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-13343

DECK LIFT LINK

Note: *CHOOSE COLOR WHEN ORDERING*

$15.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-14861

LIFT SHAFT (RETAINER) (LH)

$5.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-14961

LIFT SHAFT (RETAINER) (RH)

$5.49

$

In Stock, only 1 left!

0

7

Cub Cadet 703-26945

DECK LIFT PEDAL

Note: *CHOOSE COLOR WHEN ORDERING*

$38.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0817

SCREW 5/16-18 x 1.25

$6.99

$

In Stock, Qty 15

0

9

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 16

0

10

Cub Cadet 711-0231A

CLEVIS PIN .500 x 1.875

$6.49

$

In Stock, only 3 left!

0

11

Cub Cadet 711-04007A

CLEVIS PIN .50 x 2.5

$7.49

$

In Stock, only 2 left!

0

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-05046

HEX NUT NYLOK 1/2-13

$4.49

$

In Stock, Qty 20+

0

14

$4.99

$

In Stock, Qty 16

0

15

Cub Cadet 714-0470

COTTER PIN

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 714-05005

BOW TIE COTTER PIN

$4.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 726-05009

LIFT ROD END CAP

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 731-16491A

DETENT PLUNGER

$3.99

$

In Stock, Qty 7

0

19

Cub Cadet 932-0306A

COMPRESSION SPRING .531 OD 1.75 LG

$8.49

$

In Stock, only 4 left!

0

20

Cub Cadet 736-0267

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0272

FLAT WASHER .510 x .995

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0287

FLAT WASHER .793ID x 1.24OD x .060

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-05862

SHIM WASHER .50 x 1.5 x .02

$6.49

$

In Stock, only 1 left!

0

25

Cub Cadet 738-0380

SHOULDER SCREW

$7.99

$

In Stock, only 1 left!

0

26

Cub Cadet 738-06154

SHLDER SCREW .498x5.0 3/8-16

$9.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 741-07070

FLANGE BEARING (.38x.75x.77)

$2.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 747-07510A

DECK HEIGHT ADJUSTMENT ROD

$28.99

$

In Stock, only 1 left!

0

29

Cub Cadet 747E10810

HANGER ROD

$8.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 747-11645A

DECK LIFT ROD (FRONT)

$15.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 747-11667

LIFT PEDAL ROD

Note: *CHOOSE COLOR WHEN ORDERING*

$32.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 748-04069A

DECK LIFT PIVOT CUP

$5.99

$

In Stock, Qty 11

0
