ZTS2-60 KH FAB (17ASGGY5A10) - Cub Cadet Ultima 60" Zero-Turn Mower, Fab Deck, Kohler (2022) Front Caster Parts Diagram

Ultima 60" Zero-Turn Mower, Fab Deck, Kohler

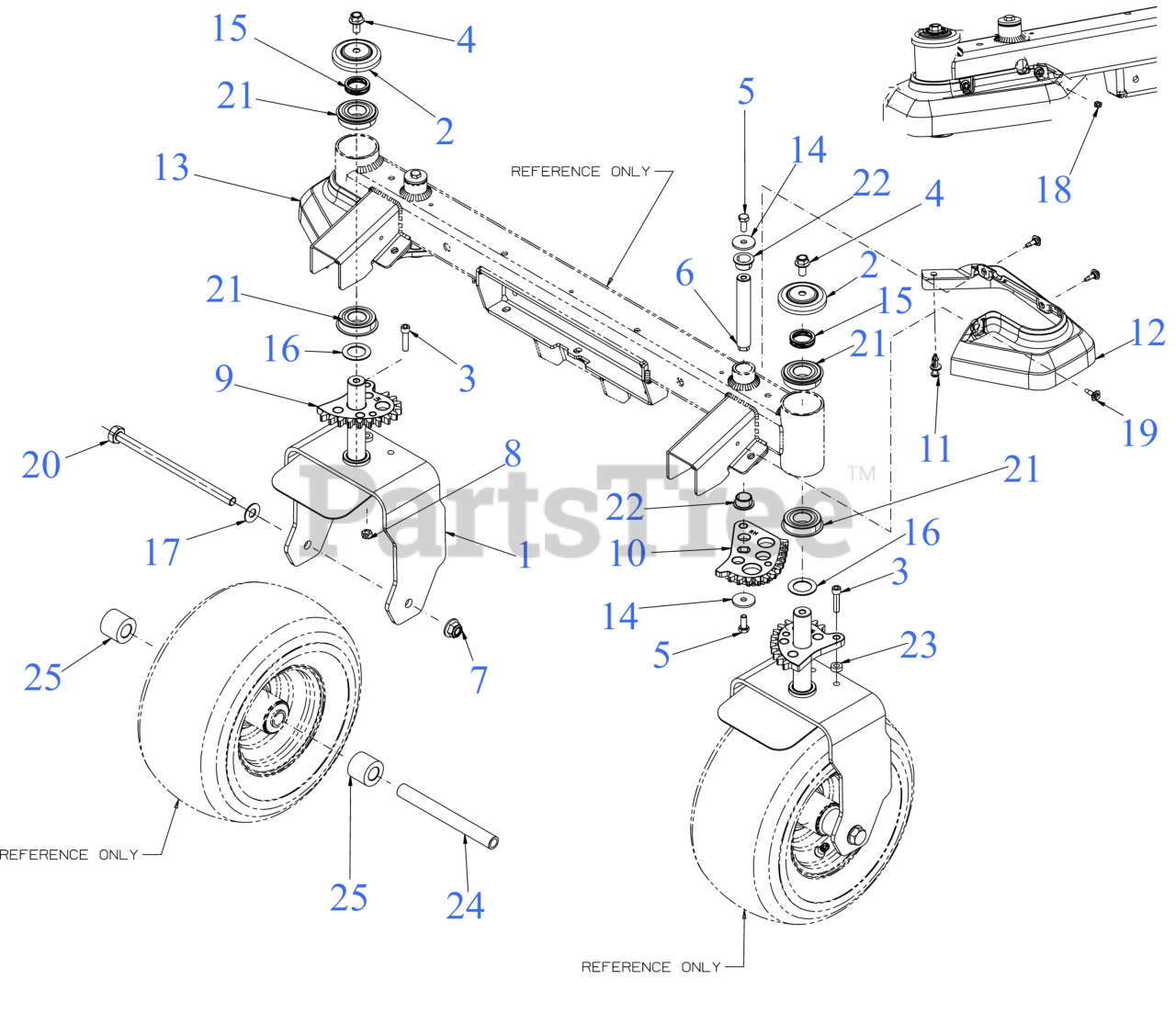

Front Caster Parts Diagram

  • Title
1

Cub Cadet 603-08721

CASTER WHEEL YOKE

Note: *CHOOSE COLOR WHEN ORDERING*

$129.99

$

Usually ships in 3-6 days

0

$7.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-06508

SCREW 5/16-18X1.25

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet 710-06551

BOLT - 3/8-16:.75:GR5:PATCH LOCK

$5.49

$

In Stock, only 2 left!

0

5

Cub Cadet 710-1880

SCREW 5/16-18 x .750

$4.99

$

In Stock, Qty 11

0

6

Cub Cadet 711-11386

STEERING GEAR PIVOT SHAFT

$19.99

$

Usually ships in 3-6 days

0

$4.49

$

In Stock, Qty 20+

0

8

$6.99

$

In Stock, Qty 20+

0

9

Cub Cadet 717-05133

STEERING SPUR GEAR 13T

$51.99

$

In Stock, only 2 left!

0

10

Cub Cadet 717-06820

STEERING GEAR 12T

$39.99

$

In Stock, only 1 left!

0

11

Cub Cadet 728-0199

PLASTIC RIVET

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 731-26616

STEERING GEAR COVER (RH)

$20.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 731-26617

STEERING GEAR COVER (LH)

$20.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 736-0343

WASHER-5/16 x 1.25X 1.27

$4.49

$

In Stock, Qty 7

0

15

Cub Cadet 736-05033A

WAVE WASHER

$4.99

$

In Stock, Qty 17

0

16

Cub Cadet 736-0745

WASHER 1.010X1.560X.060

$12.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-3084

FLAT WASHER

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 737-04345

GREASE ZERT 1/4-28

$4.99

$

In Stock, Qty 6

0

19

Cub Cadet 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet 738-05192B

SCREW-1/2-13X8.5 GR5 FLG RZF-SX

$31.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 941-05022A

BALL BEARING 25X52X15

$20.99

$

In Stock, only 1 left!

0

22

Cub Cadet 741-07137

FLANGE BEARING .75x.875x.50

$5.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 750-04418

SPACER .376ID X.625X.22

$6.99

$

In Stock, only 2 left!

0

24

Cub Cadet 750-05351A

CASTER AXLE SPACER

$20.99

$

In Stock, only 2 left!

0

25

Cub Cadet 750-07910

CASTER WHEEL SPACER

$3.99

$

Usually ships in 3-6 days

0
