ZTS2-50 KH FAB (17ASGGY2A10) - Cub Cadet Ultima 50" Zero-Turn Mower, Fab Deck, Kohler (2023) Deck Parts Diagram

Ultima 50" Zero-Turn Mower, Fab Deck, Kohler

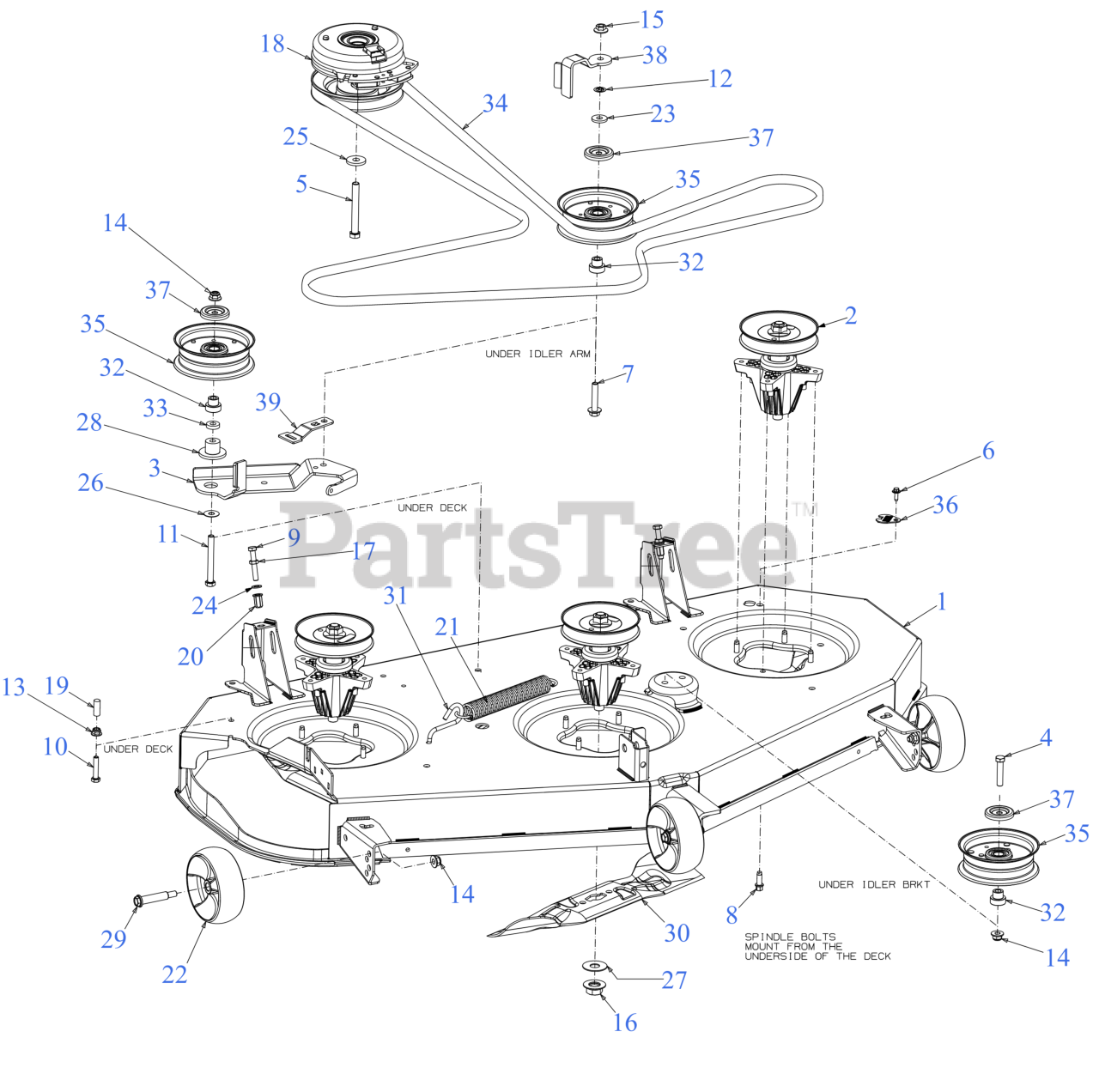

Deck Parts Diagram

  • Title
1

Cub Cadet 603P07920

50" FAB DECK SHELL

Note: *CHOOSE COLOR WHEN ORDERING*

$953.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618P09256

SPINDLE ASSEMBLY (5.37 DIA)

Note: (See Separate Breakdown)

$132.99

$

In Stock, Qty 8

0

3

Cub Cadet 703-26144

DECK IDLER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$45.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-04379A

SCREW 7/16-20 x 3.5 GR5

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 8

0

7

Cub Cadet 710-06178

SCREW 3/8-16 x 2.0

$6.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-06322

SCREW 5/16-18 x .875

$5.49

$

In Stock, Qty 6

0

9

Cub Cadet 710-07494

SCREW-FULL THREAD 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3130

SCREW 3/8-16 x 3.25 GR8

$10.99

$

In Stock, only 1 left!

0

12

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 16

0

16

Cub Cadet 712-07050

HEX FLANGE NUT 5/8-18 GR5

$5.99

$

In Stock, Qty 20+

0

17

$6.99

$

In Stock, only 3 left!

0

18

Cub Cadet 917-05209

ELECTRIC PTO CLUTCH

$545.99

$

In Stock, only 1 left!

0

19

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet 728-05043

NUT RIVET 5/16-18

$5.49

$

In Stock, only 2 left!

0

21

Cub Cadet 732-04927

EXTENSION SPRING

$22.99

$

In Stock, Qty 20+

0

22

Cub Cadet 734-06305

DECK WHEEL (5.0 DIA x 1.875)
(Superseded to 734-06305A)

$15.99

$

In Stock, Qty 15

0

23

Cub Cadet 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

In Stock, only 3 left!

0

24

Cub Cadet 736-0264

FLAT WASHER

$6.99

$

In Stock, only 1 left!

0

25

Cub Cadet 736-0322

FLAT WASHER .445 x 1.248 x .170

$9.49

$

In Stock, Qty 7

0

26

Cub Cadet 736-0344

FLAT WASHER

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-3088

FLAT WASHER .635X1.585X.062 HDN

$4.49

$

In Stock, Qty 8

0

28

Cub Cadet 738-05081

SHOULDER SPACER

$7.49

$

In Stock, Qty 20+

0

29

Cub Cadet 738-06694

SHOULDER BOLT (.50 X 2.0 x 3/8 -16)

$7.99

$

In Stock, Qty 20+

0

30

Cub Cadet 742P05094

17.271" BLADE (2IN1) (S SHAPE CENTER HOLE)

$28.99

$

In Stock, Qty 20+

0

30

Cub Cadet 490-110-C193

Cub Cadet 50" HI LIFT BLADE SET (S SHAPE CENTER HOLE)

Note: Retail Package Part

$91.99

$

In Stock, only 2 left!

0

30

Cub Cadet 490-110-Y193

Troy-Bilt 50" HI LIFT BLADE SET (S SHAPE CENTER HOLE)

Note: Retail Package Part

$86.99

$

In Stock, only 1 left!

0

30

Cub Cadet 742P05094-X

17.271" XTREME BLADE (2IN1) (S SHAPE CENTER HOLE)

$32.99

$

In Stock, only 3 left!

0

30

Cub Cadet 490-110-C204

Cub Cadet 50" XTREME BLADE SET (S SHAPE CENTER HOLE)

Note: Retail Package Part

$97.99

$

In Stock, only 2 left!

0

30

Cub Cadet 490-110-Y204

Troy-Bilt 50" XTREME BLADE SET (S SHAPE CENTER HOLE)

Note: Retail Package Part

$92.99

$

In Stock, only 2 left!

0

30

Cub Cadet 742P05094-L

17.271" LOW LIFT (S SHAPE CENTER HOLE)

$30.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 747-05608A

DECK SPRING HOOK

$3.49

$

In Stock, Qty 20+

0

32

Cub Cadet 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 954-05078

V-BELT B SEC x 143.5 LG

$111.99

$

In Stock, Qty 20+

0

34

Cub Cadet 490-501-C070

Cub Cadet 50" DECK DRIVE BELT

Note: Retail Packaged Part

$111.99

$

In Stock, only 2 left!

0

34

Cub Cadet 490-501-M070

Genuine Factory Parts 50" DECK BELT

Note: Retail Packaged Part

$111.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 490-501-Y070

Troy-Bilt 50" DECK DRIVE BELT

Note: Retail Packaged Part

$

$

Currently unavailable

35

Cub Cadet 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

36

Cub Cadet 783-06464

DECK WASH PLUG

$4.49

$

In Stock, Qty 14

0

37

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

38

Cub Cadet 783E08619A

BELT KEEPER
(Superseded to 783Z08619A)

$24.99

$

In Stock, Qty 20+

0

39

Cub Cadet 783-08867

BELT KEEPER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-08867-0637

KEEPER-BELT - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0
