ZTR Classic - Dixon Zero-Turn Mower (2002) BODY Parts Diagram

Zero-Turn Mower

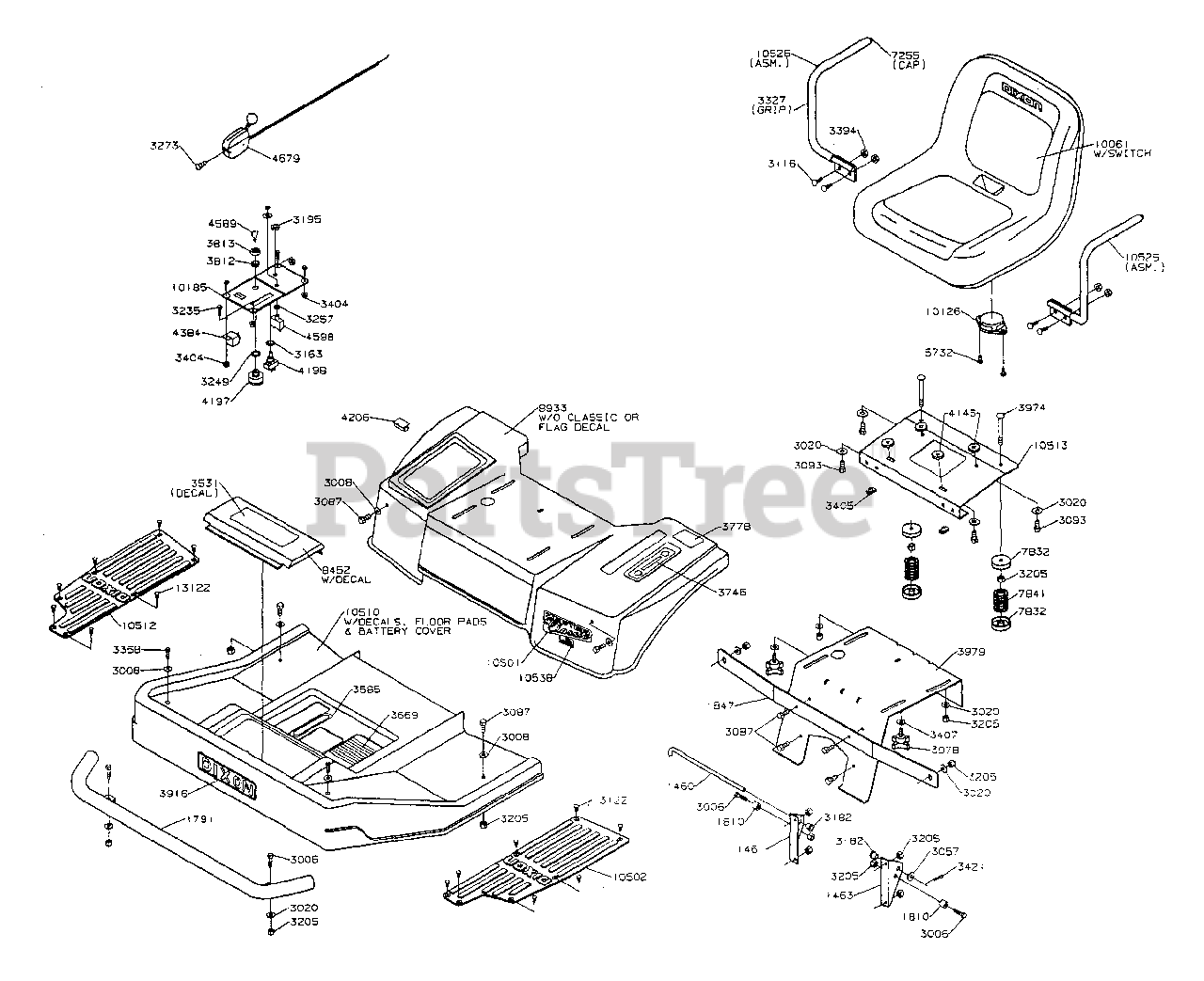

BODY Parts Diagram

  • Title

1460

1460

PIVOT SHAFT (PLATED)

$

$

Not available

1461

1461

PIVOT TAB RH R/B 6813

$

$

Not available

1463

1463

PIVOT TAB LH R/B 6813

$

$

Not available

1791

1791

BUMPER WELDMENT

$

$

Not available

1810

1810

PIVOT STOP

$

$

Not available

1847

1847

UPPER BODY BRACE

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3163

Dixon 3163

1/2 INTERNAL L-WASH

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3195

3195

FACE NUT 1/2-27

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3249

3249

5/8 INT.TOOTH L.W.

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3327

3327

SLEEVE 22.5

$

$

Not available

3368

3368

1/4-20X 1 HWH TAP SC

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3404

Dixon 3404

10-24 HEX FLANGE NUT

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3407

3407

WASHER 5/16` NINJA

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3669

3669

DECAL, WARNING

$

$

Not available

3746

3746

TIE BAR

$

$

Not available

3778

Dixon 3778

DECAL, FUEL VALVE

$

$

Not available

3812

3812

IGNITION NUT

$

$

Not available

3813

3813

PROTECTIVE CAP

$

$

Not available

3916

Dixon 3916

R/B 3916 DECAL - DIXON

$

$

Not available

3974

3974

5/16-18X3.5 CAR BOLT

$

$

Not available

3978

3978

SEAT ADJUST KNOB

$

$

Not available

3979

3979

SEAT FRAME

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4198

4198

CLUTCH SWITCH

$

$

Not available

4206

4206

BODY WIRE CLIP 1/2`

$

$

Not available

4384

4384

RELAY

$

$

Not available

4589

4589

KEY (PLAIN)

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

4679

4679

THROTTLE CABLE

$

$

Not available

5732

5732

$

$

Not available

7255

7255

CAP

$

$

Not available

7832

7832

SPRING CUP

$

$

Not available

7841

7841

SEAT SPRING

$

$

Not available

8452

8452

R/B 4687 42/50 BATTERY COVER

$

$

Not available

8933

8933

UP BODY W/DECALS 42`

$

$

Not available

10061

10061

SEAT 30`

$

$

Not available

10126

10126

R/B 10126 SEAT SWITCH

$

$

Not available

10185

10185

CONTROL PANEL

$

$

Not available

10501

10501

DECAL CLASSIC

$

$

Not available

10502

10502

FLOOR PAD-LH

$

$

Not available

10510

10510

LOWER BODY ASM.

$

$

Not available

10512

10512

FLOOR PAD-RH

$

$

Not available

10513

10513

SPRING SEAT PLATE

$

$

Not available

10525

10525

LH ARM REST ASM.

$

$

Not available

10526

10526

RH ARM REST ASM.

$

$

Not available

13122

13122

BARBED FASTENER

$

$

Not available
