ZTR 8026D - Dixon Zero-Turn Mower (2003) CONTROLS, TANKS & SEAT FRAME Parts Diagram

Zero-Turn Mower

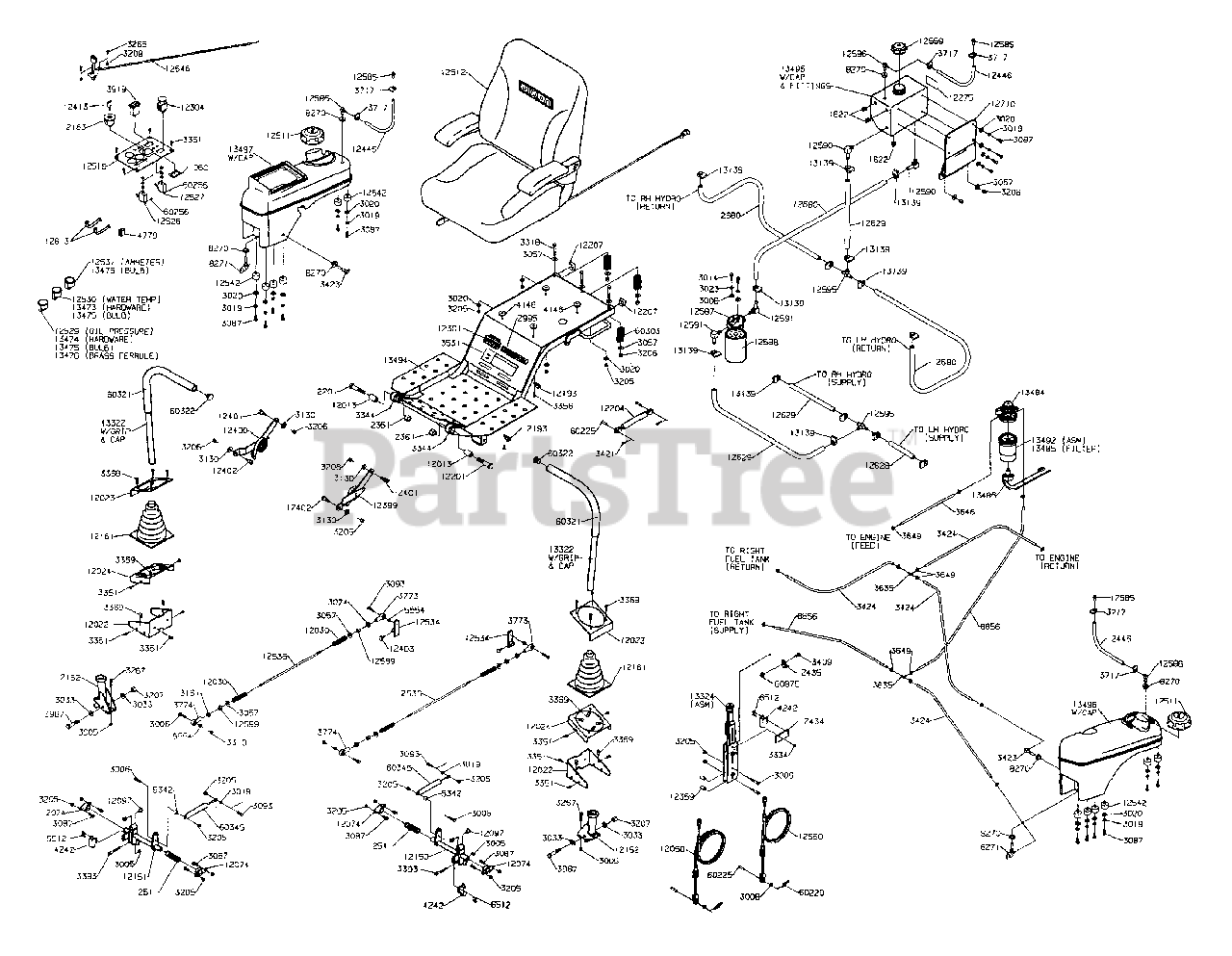

CONTROLS, TANKS & SEAT FRAME Parts Diagram

  • Title

1060

1060

$

$

Not available

1622

1622

PLUG-NO CHARGE 3/8

$

$

Not available

2361

2361

5/8-11 HEX NUT W/NYLOCK

$

$

Not available

2511

2511

SPRING

$

$

Not available

2995

2995

COMMERCIAL DECAL

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3265

3265

10-24X3/4TRUSS HD PH

$

$

Not available

3267

3267

5/16-18X1-1/2 HHB G5

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3318

3318

3/8-16X2-1/4 HHB GR8

$

$

Not available

3334

3334

1/4-20 THIN PROF NY

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3368

3368

1/4-20X 1 HWH TAP SC

$

$

Not available

3369

3369

1/4-20 U NUT

$

$

Not available

3393

3393

5/16-18X2-1/2 HHB GD5

$

$

Not available

3409

3409

5/16-18X1/2 HHB GR5

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3423

3423

ELBOW W/FILTER

$

$

Not available

3424

3424

HOSE 1/4 X 44

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3635

3635

FUEL LINE TEE

$

$

Not available

3646

Dixon 3646

R/B 3646 HOSE 1/4 X 18

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3717

3717

CLAMP 3/8

$

$

Not available

3773

Dixon 3773

LH ROD END

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3919

Dixon 3919

HOUR METER

$

$

Not available

3987

Dixon 3987

1/2-13X2-1/2 HHB GR5

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

4779

4779

CONNECTOR

$

$

Not available

5342

5342

SPACER

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

6512

6512

#10-32X1/2` HHTRS

$

$

Not available

8270

8270

TANK FITTING

$

$

Not available

8271

8271

TANK FUEL VALVE # 8271

$

$

Not available

8856

8856

R/B 8856 HOSE 1/4 X 25.5

$

$

Not available

12013

12013

BUSHING

$

$

Not available

12022

12022

PLATE COVER

$

$

Not available

12023

Dixon 12023

PLATE TOP COVER

$

$

Not available

12024

12024

PLATE SIDE COVER

$

$

Not available

12030

12030

SPRING

$

$

Not available

12058

12058

CABLE LONG BRAKE

$

$

Not available

12074

12074

FLANGED BEARING

$

$

Not available

12097

12097

BEARING (GARLOCK)

$

$

Not available

12150

12150

CONTROL WLDT. LOWER-LH

$

$

Not available

12151

12151

CONTROL WLDT. LOWER-RH

$

$

Not available

12152

12152

CONTROL WLDT.-UPPER

$

$

Not available

12161

12161

BELLOW

$

$

Not available

12163

12163

IGNITION SWITCH

$

$

Not available

12193

12193

INSULATED STRAP (MED.)

$

$

Not available

12201

12201

5/8-11 X 3` HHB

$

$

Not available

12204

12204

DAMPER HYDRAULIC

$

$

Not available

12207

12207

PLUG SQUARE

$

$

Not available

12275

12275

DECAL HYDRO TANK

$

$

Not available

12301

12301

MODEL DECAL-8026D

$

$

Not available

12304

12304

CLUTCH SWITCH

$

$

Not available

12359

12359

SPACER

$

$

Not available

12399

12399

SPRING DRILLED-LH

$

$

Not available

12400

12400

SPRING DRILLED-RH

$

$

Not available

12401

12401

SHOULDER BOLT 3/8-16 X 1/2

$

$

Not available

12402

12402

3/8-16 SHOUL.BOLT X 5/8

$

$

Not available

12403

12403

SCREW, SET 3/8-16 W/HEX HD

$

$

Not available

12413

12413

KEY MOLDED

$

$

Not available

12434

12434

PLATE

$

$

Not available

12435

12435

TAB

$

$

Not available

12446

12446

3/8` HOSE - 14`

$

$

Not available

12511

12511

TANK CAP-DIESEL

$

$

Not available

12512

12512

SEAT

$

$

Not available

12516

12516

CONTROL PANEL

$

$

Not available

12526

12526

CIRCUIT BREAKER 30AMP

$

$

Not available

12527

12527

CIRCUIT BREAKER 50AMP

$

$

Not available

12529

12529

GAUGE OIL PRESS

$

$

Not available

12530

12530

GAUGE WATER TEMP.

$

$

Not available

12531

12531

GAUGE AMP METER

$

$

Not available

12534

12534

CONTROL ARM WLDT.

$

$

Not available

12536

12536

ROD CONTROL

$

$

Not available

12542

12542

ISO MOUNT 1-1/4 DIA

$

$

Not available

12546

12546

THROTTLE

$

$

Not available

12559

12559

TANK CAP

$

$

Not available

12560

12560

BRAKE CABLE

$

$

Not available

12585

12585

VENT

$

$

Not available

12586

12586

ELBOW 1/2X1/2 HOSE BARB

$

$

Not available

12587

12587

FILTER HEAD ZAF-08-00-0

$

$

Not available

12588

12588

FILTER AE-25

$

$

Not available

12589

12589

LOCKING COLLAR

$

$

Not available

12590

12590

ADAPTER-90DEG. 3/8NPT

$

$

Not available

12591

12591

ADAPTER 90DEG. `0` RING

$

$

Not available

12595

12595

TEE

$

$

Not available

12613

12613

INDICATOR LIGHT ASM.

$

$

Not available

12628

12628

OIL DRAIN HOSE 8`

$

$

Not available

12629

12629

HOSE-1/2` ID X 24`

$

$

Not available

12680

12680

HOSE-1/2` X 42`

$

$

Not available

12710

12710

WLDT.-TANK BRKT.

$

$

Not available

13139

13139

CLAMP

$

$

Not available

13322

13322

LEVER W/GRIP & CAP

$

$

Not available

13324

13324

BRAKE LEVER

$

$

Not available

13473

13473

HARDWARE BAG(TEMP GAUGE)

$

$

Not available

13474

13474

HARDWARE BAG(OIL PRESS.)

$

$

Not available

13475

13475

BULB

$

$

Not available

13476

13476

BRASS FERRULE

$

$

Not available

13484

13484

FUEL FILTER HEAD

$

$

Not available

13485

13485

FUEL FILTER

$

$

Not available

13486

13486

FUEL FILTER SENSOR

$

$

Not available

13492

13492

FUEL FILTER ASM.

$

$

Not available

13495

13495

RESERVOIR W/CAP

$

$

Not available

13496

13496

FUEL TANK ASM.-LH

$

$

Not available

13497

13497

FUEL TANK AM.-RH

$

$

Not available

60225

60225

CLEVIS PIN 5/16 X 7/8 LO

$

$

Not available

60229

60229

COTTER RUE RING 5/16-3/

$

$

Not available

60256

60256

MACH SCR RND 8-32X1/2 PH

$

$

Not available

60303

60303

SEAT SPRING

$

$

Not available

60321

60321

GRIP, FOAM (GROUND) 15

$

$

Not available

60322

60322

END PLUG 15/16` (BLACK)

$

$

Not available

60345

60345

DAMPNER DUAL ACITON #326

$

$

Not available

60875

60875

WELDNUT 5/16-18 2

$

$

Not available
