ZTR 8025 - Dixon Zero-Turn Mower (2002) CHASSIS Parts Diagram

Zero-Turn Mower

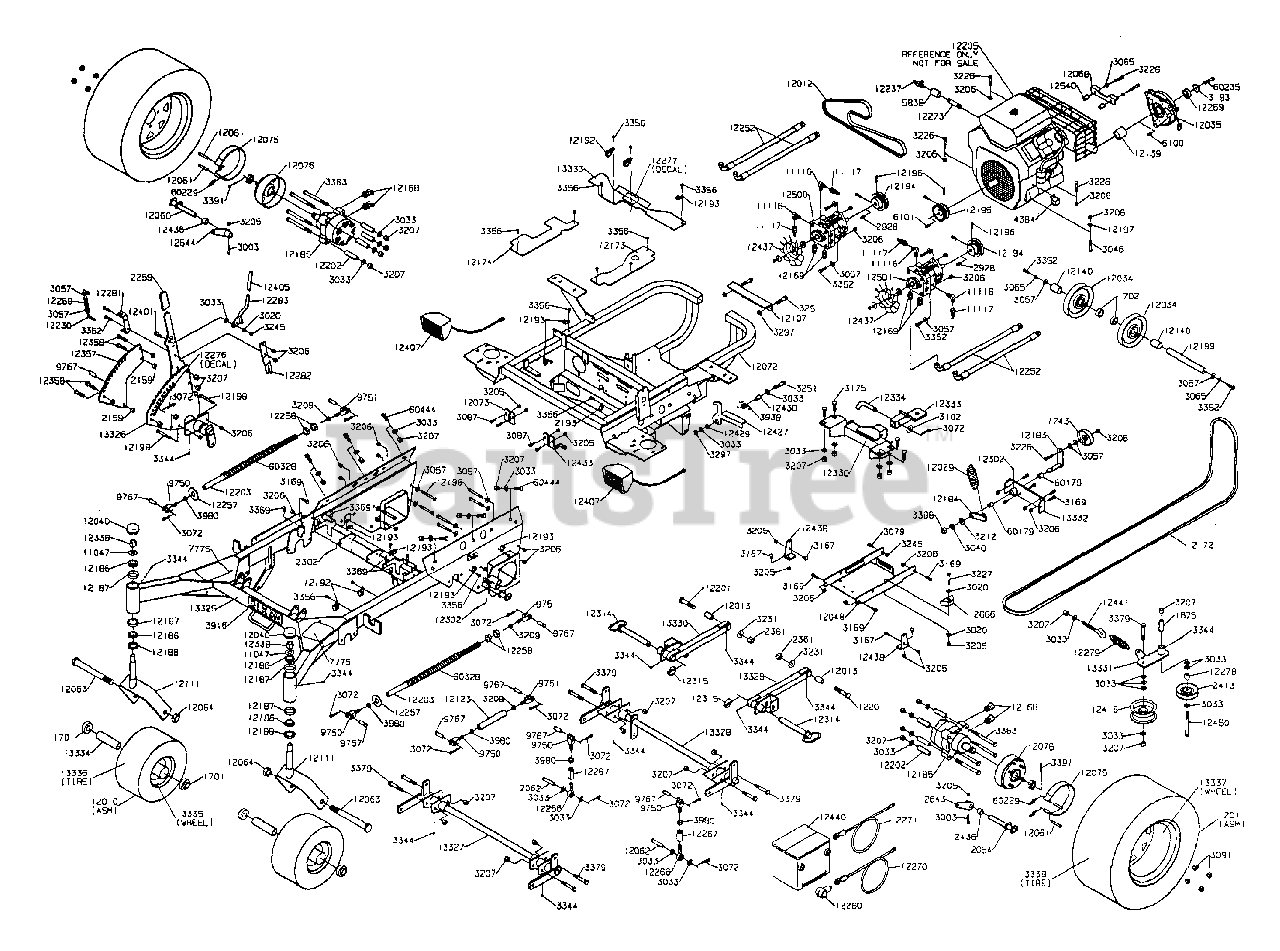

CHASSIS Parts Diagram

  • Title

1675

1675

ANCHOR

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1702

1702

LOCK COLLAR - ECC

$

$

Not available

1743

1743

1743-IDLER FLAT 3`

$

$

Not available

2159

2159

TUBE .51 I.D. X .75 O.D.

$

$

Not available

2361

2361

5/8-11 HEX NUT W/NYLOCK

$

$

Not available

2413

2413

V-IDLER PULLEY

$

$

Not available

2928

2928

KEY-3/16 DIA X 1

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3040

3040

5/8 HELICAL L-WASHER

$

$

Not available

3046

3046

3/8-16UNCX2 HH BLT

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3072

3072

$

$

Not available

3079

3079

3/8-16UNC X3/4HH BLT

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3102

3102

5/8 STD FLATWASHER

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3175

3175

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3209

3209

1/2-20 HEX JAM NUT

$

$

Not available

3212

3212

5/8 FLAT WASH-NARROW

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3231

3231

9/16 STD FLAT WASHER

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3251

3251

BOLT 1/2-13 X 2 HH

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3363

3363

1/2-13X5-1/2 HHBGR5

$

$

Not available

3369

3369

1/4-20 U NUT

$

$

Not available

3379

3379

1/2-13X3 HHB GR5

$

$

Not available

3388

3388

R/B 3388 5/8 X 11UNC HEX NUT

$

$

Not available

3391

3391

1/8DIAX1-1/2 COT PIN

$

$

Not available

3916

Dixon 3916

R/B 3916 DECAL - DIXON

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

3980

Dixon 3980

1/2-20 LH HEX JAM NUT

$

$

Not available

4384

4384

RELAY

$

$

Not available

5838

5838

FEMALE COUPLING

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

7775

7775

REAR FLOOR PAD-LH

$

$

Not available

9750

9750

LH CLEVIS

$

$

Not available

9751

9751

RH CLEVIS

$

$

Not available

9767

9767

CLEVIS PIN

$

$

Not available

11047

11047

WASHER, 3/4 SAE

$

$

Not available

11116

11116

$

$

Not available

11117

11117

FEMALE FLARE 9/16-18 SW.

$

$

Not available

12010

12010

FRONT WHEEL AND TIRE ASM

$

$

Not available

12011

12011

REAR WHEEL&TIRE ASM.

$

$

Not available

12012

12012

BELT-POLY RIB

$

$

Not available

12013

12013

BUSHING

$

$

Not available

12029

12029

SPRING

$

$

Not available

12034

Dixon 12034

PULLEY (MD)

$

$

Not available

12035

12035

ELECTRIC CLUTCH

$

$

Not available

12040

12040

DUST CAP

$

$

Not available

12048

12048

BATTERY PLATE WLDT.

$

$

Not available

12054

12054

WLDT.-LH BRAKE

$

$

Not available

12060

12060

WLDT.-RH BRAKE

$

$

Not available

12061

12061

CLEVIS PIN 3/8 X 2`

$

$

Not available

12062

12062

CLEVIS PIN 2-1/2

$

$

Not available

12063

12063

HHB 1-8 X 9

$

$

Not available

12064

12064

1-8 NYLOK HEX NUT

$

$

Not available

12068

Dixon 12068

PLATE CLUTCH ANCHOR

$

$

Not available

12072

12072

$

$

Not available

12073

Dixon 12073

PLATE GUIDE

$

$

Not available

12075

12075

BRAKE BAND

$

$

Not available

12076

12076

BRAKE DRUM

$

$

Not available

12107

12107

COVER REAR

$

$

Not available

12111

12111

CASTER WLDT.

$

$

Not available

12123

12123

LINK

$

$

Not available

12139

12139

SPACER CLUTCH

$

$

Not available

12140

12140

SPACER

$

$

Not available

12166

12166

MALE ELBOW

$

$

Not available

12168

12168

ANGLE FITTING 7/8`

$

$

Not available

12169

12169

MALE O-RING BOSS

$

$

Not available

12172

12172

BELT

$

$

Not available

12173

12173

COVER PLATE-LH

$

$

Not available

12174

12174

COVER PLATE-RH

$

$

Not available

12183

12183

IDLER ARM WLDT.

$

$

Not available

12184

12184

ARM IDLER

$

$

Not available

12185

12185

WHEEL MOTOR

$

$

Not available

12186

12186

CONE (BEARING)

$

$

Not available

12187

12187

CUP (RACE)

$

$

Not available

12188

12188

OIL SEAL

$

$

Not available

12192

12192

INSULATED STRAP (LARGE)

$

$

Not available

12193

12193

INSULATED STRAP (MED.)

$

$

Not available

12194

12194

PULLEY (PUMP)

$

$

Not available

12195

12195

PULLEY (ENGINE)

$

$

Not available

12196

12196

5/16-18 X 1`SQ.HD.SETSCR

$

$

Not available

12197

12197

3/8 INT/EXT.L-WASHER

$

$

Not available

12198

12198

3/8-16 X 3` HHB

$

$

Not available

12199

12199

SHAFT-TAPPED

$

$

Not available

12201

12201

5/8-11 X 3` HHB

$

$

Not available

12202

12202

BUSHING

$

$

Not available

12203

12203

LINK

$

$

Not available

12205

12205

$

$

Not available

12230

12230

LIFT HANDLE CONTROL

$

$

Not available

12237

12237

3/8X2 GALV PIPE NIPP

$

$

Not available

12252

12252

OIL HOSE ASM.

$

$

Not available

12257

12257

WASHER .940ID X 2.27OD

$

$

Not available

12258

12258

7/8-9 HEX JAM NUT

$

$

Not available

12259

12259

GRIP .25 X 1 1/4 X 4 IL BLACK

$

$

Not available

12260

12260

TERMINAL COVER

$

$

Not available

12266

12266

ROD END

$

$

Not available

12267

12267

NUT ADJUSTER

$

$

Not available

12268

12268

SPRING

$

$

Not available

12269

12269

BUSHING

$

$

Not available

12270

12270

BATTERY CABLE 35`

$

$

Not available

12271

12271

BATTERY GROUND CABLE 30`

$

$

Not available

12273

12273

PIPE NIPPLE 3/8 X 3

$

$

Not available

12276

12276

DECAL, LIFT

$

$

Not available

12277

12277

DECAL BELT ROUTING

$

$

Not available

12278

12278

SPACER

$

$

Not available

12279

12279

SPRING

$

$

Not available

12281

12281

GUIDE (PLATED)

$

$

Not available

12282

12282

GUIDE (PLATED)

$

$

Not available

12283

12283

TRIGGER (PLATED)

$

$

Not available

12302

12302

GREASE ZERK-1/4"

$

$

Not available

12314

12314

HITCH PIN

$

$

Not available

12315

12315

LINCH PIN

$

$

Not available

12330

12330

HITCH MT. WLDT.

$

$

Not available

12333

12333

HITCH WLDT.

$

$

Not available

12334

12334

HITCH PIN

$

$

Not available

12338

12338

NUT 3/4-10 HEX W/NYLOK

$

$

Not available

12357

12357

QUADRANT GUIDE(PLATED)

$

$

Not available

12358

12358

1/2-13X1-3/4 HHB GR. 5

$

$

Not available

12401

12401

SHOULDER BOLT 3/8-16 X 1/2

$

$

Not available

12405

12405

GRIP

$

$

Not available

12407

12407

HEADLIGHT ASM.

$

$

Not available

12418

12418

IDLER PULLEY

$

$

Not available

12427

12427

LATCH

$

$

Not available

12429

12429

SPACER

$

$

Not available

12430

12430

SPACER

$

$

Not available

12433

12433

PLATE GUIDE

$

$

Not available

12436

12436

SPACER

$

$

Not available

12437

12437

HUB/FAN KIT

$

$

Not available

12438

12438

BRKT. DAMPER

$

$

Not available

12440

12440

$

$

Not available

12441

12441

EYE BOLT

$

$

Not available

12450

12450

1/2-13 X 5` HHB

$

$

Not available

12500

12500

PUMP (BDP-10A-462)

$

$

Not available

12501

12501

PUMP (BDP-10A-362)

$

$

Not available

12540

12540

BUSHING

$

$

Not available

12643

12643

BRAKE ARM LH

$

$

Not available

12644

12644

BRAKE ARM RH

$

$

Not available

12666

12666

BATTERY TIE DOWN

$

$

Not available

13325

13325

$

$

Not available

13326

13326

LIFT QUADRANT ASM.

$

$

Not available

13327

13327

LIFT SHAFT ASM FRONT

$

$

Not available

13328

Dixon 13328

LIFT SHAFT ASM-REAR

$

$

Not available

13329

13329

LH TRAILER ARM ASM.

$

$

Not available

13330

13330

RH TRAILER ARM ASM.

$

$

Not available

13331

13331

IDLER ARM ASM.

$

$

Not available

13332

13332

BRACKET ASM.

$

$

Not available

13333

13333

PLATE W/DECAL

$

$

Not available

13334

13334

SPACER

$

$

Not available

13335

13335

FRONT WHEEL

$

$

Not available

13336

13336

FRONT TIRE

$

$

Not available

13337

13337

REAR WHEEL

$

$

Not available

13338

13338

REAR TIRE

$

$

Not available

60179

60179

BUSHING DX. 5/8X3/4X3/4

$

$

Not available

60229

60229

COTTER RUE RING 5/16-3/

$

$

Not available

60235

60235

HCS 7/16-20 X 1-1/2 GR 5 ZD

$

$

Not available

60328

60328

SPRING COMP. 1.406 O.D.

$

$

Not available

60444

60444

HH CAPSCREW 1/2-13X1-1/4

$

$

Not available
