ZTR 7525 - Dixon Zero-Turn Mower (2003) CONTROLS, TANKS & DRIVE TRAIN Parts Diagram

Zero-Turn Mower

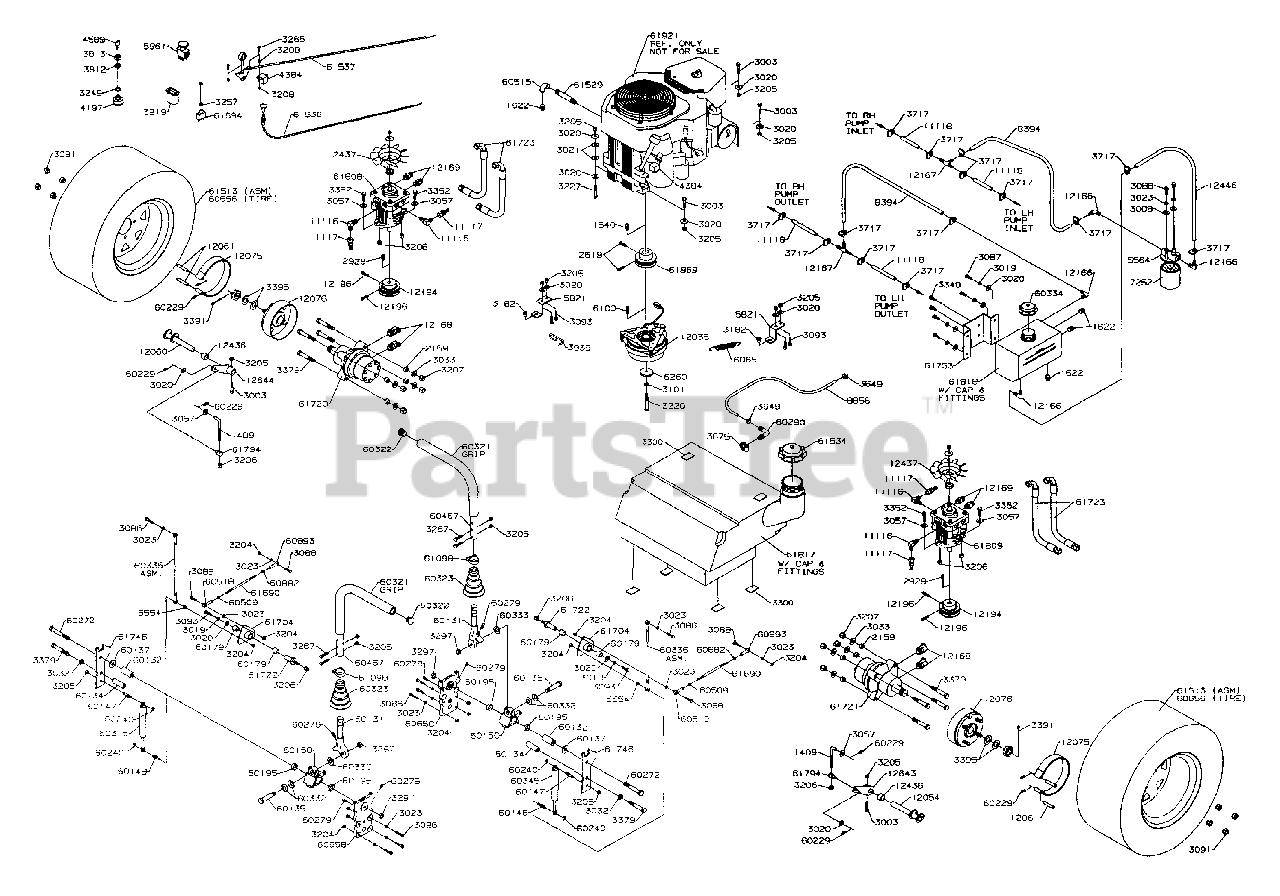

CONTROLS, TANKS & DRIVE TRAIN Parts Diagram

  • Title

1409

1409

L ROD 3-7/8

$

$

Not available

1540

1540

ENGINE SHAFT KEY

$

$

Not available

1622

1622

PLUG-NO CHARGE 3/8

$

$

Not available

2159

2159

TUBE .51 I.D. X .75 O.D.

$

$

Not available

2928

2928

KEY-3/16 DIA X 1

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3032

3032

1/2 HELICAL L-WASHER

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3086

3086

1/4-20X1-1/4 HHB GR5

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3101

3101

7/16 HELICAL L-WASH

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3249

3249

5/8 INT.TOOTH L.W.

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3265

3265

10-24X3/4TRUSS HD PH

$

$

Not available

3267

3267

5/16-18X1-1/2 HHB G5

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3348

3348

5/16-18X3/4 HWH TFS

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3379

3379

1/2-13X3 HHB GR5

$

$

Not available

3391

3391

1/8DIAX1-1/2 COT PIN

$

$

Not available

3395

Dixon 3395

R/B 3395 WASHER-1.033X1.5X.06

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3675

3675

FUEL LINE CLAMP

$

$

Not available

3717

3717

CLAMP 3/8

$

$

Not available

3812

3812

IGNITION NUT

$

$

Not available

3813

3813

PROTECTIVE CAP

$

$

Not available

3919

Dixon 3919

HOUR METER

$

$

Not available

3939

3939

CLUTCH ANCHOR

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4384

4384

RELAY

$

$

Not available

4589

4589

KEY (PLAIN)

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

5564

5564

FILTER HEAD

$

$

Not available

5821

5821

ANCHOR BRACKET

$

$

Not available

5961

5961

CLUTCH SWITCH

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6260

6260

R/B 6260 WASHER

$

$

Not available

7252

7252

R/B 7252 FILTER

$

$

Not available

8394

8394

3/8` HOSE - 21`

$

$

Not available

8856

8856

R/B 8856 HOSE 1/4 X 25.5

$

$

Not available

11116

11116

$

$

Not available

11117

11117

FEMALE FLARE 9/16-18 SW.

$

$

Not available

11118

11118

3/8 X 9 BLACK HOSE

$

$

Not available

12035

12035

ELECTRIC CLUTCH

$

$

Not available

12054

12054

WLDT.-LH BRAKE

$

$

Not available

12060

12060

WLDT.-RH BRAKE

$

$

Not available

12061

12061

CLEVIS PIN 3/8 X 2`

$

$

Not available

12075

12075

BRAKE BAND

$

$

Not available

12076

12076

BRAKE DRUM

$

$

Not available

12166

12166

MALE ELBOW

$

$

Not available

12167

12167

TEE

$

$

Not available

12168

12168

ANGLE FITTING 7/8`

$

$

Not available

12169

12169

MALE O-RING BOSS

$

$

Not available

12194

12194

PULLEY (PUMP)

$

$

Not available

12196

12196

5/16-18 X 1`SQ.HD.SETSCR

$

$

Not available

12436

12436

SPACER

$

$

Not available

12437

12437

HUB/FAN KIT

$

$

Not available

12446

12446

3/8` HOSE - 14`

$

$

Not available

12619

12619

$

$

Not available

12643

12643

BRAKE ARM LH

$

$

Not available

12644

12644

BRAKE ARM RH

$

$

Not available

60131

60131

LEVER DUAL LEVER

$

$

Not available

60132

60132

PINTLE BUSHING DUALEVER

$

$

Not available

60134

60134

BUSHING DUAL LEVER STAN

$

$

Not available

60135

60135

SCRW SHLDR 5/8 OD-PLATED

$

$

Not available

60137

60137

WASHER GALV .531ID X 1

$

$

Not available

60147

60147

DAMPER BLT5/16-18X3PLATD

$

$

Not available

60148

60148

DAMPER BOLT 1/4-20 X 1-

$

$

Not available

60150

60150

PIVOT BLOCK DUAL-GLIDE

$

$

Not available

60179

60179

BUSHING DX. 5/8X3/4X3/4

$

$

Not available

60195

60195

BEARING PLAIN 1`ID X 1

$

$

Not available

60196

60196

SEAL OIL 1.688 SHAFT CR

$

$

Not available

60229

60229

COTTER RUE RING 5/16-3/

$

$

Not available

60240

60240

RETAINING RING EXTERNAL

$

$

Not available

60272

60272

CAPSCREW 1/2-13X3-1/2

$

$

Not available

60279

60279

SETSCREW SOCKET 5/16-18

$

$

Not available

60290

60290

ELBOW 90 D 1/4HS X1/4 NP

$

$

Not available

60321

60321

GRIP, FOAM (GROUND) 15

$

$

Not available

60322

60322

END PLUG 15/16` (BLACK)

$

$

Not available

60323

60323

BOOT FOR 2 LEV CONTROL

$

$

Not available

60332

60332

WASH 5/8 BEVELED DISC SPRING

$

$

Not available

60333

60333

WSHR VULC FIBER:.637X1.2

$

$

Not available

60334

60334

CAP OPEN COVERED VENT

$

$

Not available

60336

60336

UPPER LINKAGE ASSY 2-LEV

$

$

Not available

60345

60345

DAMPNER DUAL ACITON #326

$

$

Not available

60467

60467

CONTROL LEVER

$

$

Not available

60509

60509

HEX NUT 1/4-28 UNF

$

$

Not available

60515

60515

ELBOW3/8 9OD SCH40 CAST

$

$

Not available

60518

60518

BALL JOINT 1/4-28 THRD

$

$

Not available

60656

60656

TIRE/REAR 23`

$

$

Not available

60658

60658

R/B 60658 BASE:DUAL-GLIDE NO

$

$

Not available

60882

60882

1/4-28 NUT (LH)

$

$

Not available

60893

60893

ROD END LH THRD FEMALE

$

$

Not available

61098

61098

HOSE CLAMP BLK 1.25-1.44

$

$

Not available

61513

61513

23`TIRE 23-9.5X12 MULTI

$

$

Not available

61529

61529

R/B 61529 NIPPLE 3/8X4 SCH 40

$

$

Not available

61534

61534

GASOLINE CAP

$

$

Not available

61536

61536

R/B 61536 PUSH/PULL CHOKE CAB

$

$

Not available

61537

Dixon 61537

R/B 61537 THROTTLE CABLE W/DE

$

$

Not available

61590

61590

DECAL, RH FENDER CAP

$

$

Not available

61594

61594

CIRCUIT BREAKER 30 AMP

$

$

Not available

61690

61690

SHORT CONTROL ROD

$

$

Not available

61704

61704

BELLCRANK WLDT.

$

$

Not available

61720

61720

WHEEL MOTOR

$

$

Not available

61721

61721

WHEEL MOTOR

$

$

Not available

61722

61722

BELL CRANK PIVOT

$

$

Not available

61723

61723

HOSE ASSEMBLY

$

$

Not available

61746

61746

NEUTRAL LOCKOUT PLATE

$

$

Not available

61763

61763

MODEL DECAL 6023

$

$

Not available

61794

61794

SWIVEL

$

$

Not available

61808

61808

PUMP (BDP-10A-462)

$

$

Not available

61809

61809

PUMP (BDP-10A-362)

$

$

Not available

61817

61817

R/B 61817 11 GALLON TANK

$

$

Not available

61818

61818

RESERVOIR W/CAP& FITTING

$

$

Not available

61869

61869

ENGINE PULLEY 1.125

$

$

Not available

61921

61921

$

$

Not available
