ZTR 6601 - Dixon Zero-Turn Mower (1997) CHASSIS ASSEMBLY Parts Diagram

Zero-Turn Mower

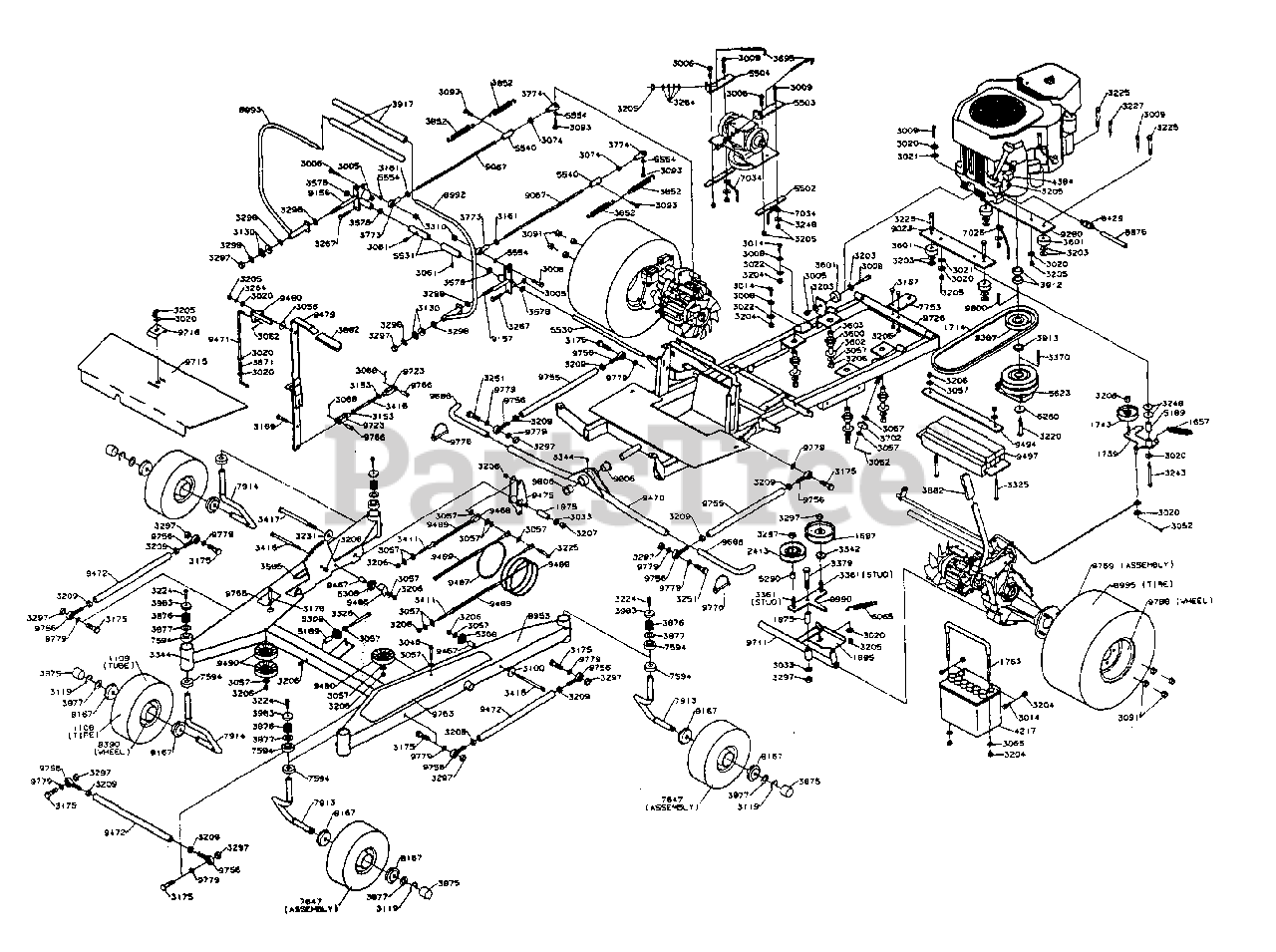

CHASSIS ASSEMBLY Parts Diagram

  • Title

1108

1108

TIRE 4.10/3.50X4 RIB

$

$

Not available

1109

1109

TUBE 4.10/3.50X4

$

$

Not available

1657

1657

SPRING

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1714

1714

DRIVE BELT

$

$

Not available

1739

1739

IDLER WELDMENT

$

$

Not available

1743

1743

1743-IDLER FLAT 3`

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

1875

1875

BUSHING

$

$

Not available

1895

1895

CLUTCH ANCHOR

$

$

Not available

2413

2413

V-IDLER PULLEY

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3046

3046

3/8-16UNCX2 HH BLT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3068

Dixon 3068

1/8DIA X1COTTER PIN

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3119

3119

RET.RING TRU ARC W75

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3153

Dixon 3153

NUT, JAM 3/8-24 HEX

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3175

3175

$

$

Not available

3178

3178

3/8-16X2 1/2 HHBG5

$

$

Not available

3203

3203

3/8 SAE FLAT WASHER

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3209

3209

1/2-20 HEX JAM NUT

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3231

3231

9/16 STD FLAT WASHER

$

$

Not available

3243

3243

5/16-18X3-1/4 HHB GR5

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3251

3251

BOLT 1/2-13 X 2 HH

$

$

Not available

3264

3264

5/16 DISC SPRING HD

$

$

Not available

3267

3267

5/16-18X1-1/2 HHB G5

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3298

3298

WASHER.515X.874X.031

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3325

3325

$

$

Not available

3326

3326

3/8-16X4 HHB GR8

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3370

3370

1/4" SQ KEY X 2.5

$

$

Not available

3379

3379

1/2-13X3 HHB GR5

$

$

Not available

3411

3411

MACHINED CONTROL

$

$

Not available

3416

3416

3/8-16X5-1/2 HHB GR5

$

$

Not available

3417

3417

1/2-13X7` HHB GR.5

$

$

Not available

3418

3418

LIFT LINK

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3600

3600

R/B 3599 REBOUND MOUNT

$

$

Not available

3601

3601

LOAD MOUNT

$

$

Not available

3602

3602

R/B 3599 SPACER TUBE

$

$

Not available

3603

3603

R/B 3599 ISO INSERT

$

$

Not available

3671

3671

SPRING-.390ID X 1.56

$

$

Not available

3695

3695

J-BOLT

$

$

Not available

3702

3702

PULLEY

$

$

Not available

3773

Dixon 3773

LH ROD END

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3852

3852

SPRING

$

$

Not available

3875

Dixon 3875

HUB COVER

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3877

Dixon 3877

WASHER .78X1.5X.06

$

$

Not available

3882

Dixon 3882

HAND GRIP-NOTCHED

$

$

Not available

3912

3912

SPACER .50

$

$

Not available

3913

3913

SPACER .25

$

$

Not available

3917

Dixon 3917

BAR SLEEVE

$

$

Not available

3983

Dixon 3983

CASTER PLUG

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4384

4384

RELAY

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5290

5290

BUSHING

$

$

Not available

5308

5308

SPROCKET - 9T

$

$

Not available

5502

5502

MOUNT SHIM

$

$

Not available

5503

5503

LH `T` BOX GUIDE

$

$

Not available

5504

5504

RH `T` BOX GUIDE

$

$

Not available

5530

5530

PIVOT SHAFT

$

$

Not available

5531

5531

ADJUSTABLE BUSHING

$

$

Not available

5540

5540

CONTROL TUBE

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

5623

5623

ELEC CLUTCH

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

6260

6260

R/B 6260 WASHER

$

$

Not available

7026

7026

BELT KEEPER RH

$

$

Not available

7034

7034

BELT KEEPER

$

$

Not available

7594

7594

THRUST BEARING SR810-57LS

$

$

Not available

7647

7647

WHEEL & TIRE ASM

$

$

Not available

7753

7753

HITCH

$

$

Not available

7913

7913

CASTER AXLE WLDT LH

$

$

Not available

7914

7914

CASTER AXLE WLDT RH

$

$

Not available

8167

8167

CASTER WHEEL BEARING

$

$

Not available

8390

8390

FRONT RIM

$

$

Not available

8429

8429

R/B 12237 OIL VALVE/HOSE ASM

$

$

Not available

8876

8876

OIL DRAIN HOSE 8`

$

$

Not available

8953

8953

CARRIAGE ASM.

$

$

Not available

8990

8990

IDLER W/STUD

$

$

Not available

8992

8992

LH CONT LEV & GRIP

$

$

Not available

8993

8993

RH CONT LEV & GRIP

$

$

Not available

8995

8995

REAR TIRE-6601

$

$

Not available

9023

9023

ENGINE PLATE

$

$

Not available

9067

9067

CONTROL ROD

$

$

Not available

9156

9156

RH SWIVEL PLT WLDT

$

$

Not available

9157

9157

LH SWIVEL PLT WLDT

$

$

Not available

9280

9280

ENGINE PLATE WLDT

$

$

Not available

9387

9387

DRIVE PULLEY 4.25

$

$

Not available

9467

9467

BUSHING

$

$

Not available

9468

9468

CHAIN TAB

$

$

Not available

9470

9470

YOKE WLDT.

$

$

Not available

9471

9471

LIFT HANDLE CONTROL

$

$

Not available

9472

9472

STABILIZER BAR

$

$

Not available

9475

9475

CABLE ARM WLDT.

$

$

Not available

9479

9479

LEVER WLDT.

$

$

Not available

9480

9480

GRIP WLDT.

$

$

Not available

9486

9486

CHAIN KEEPER

$

$

Not available

9487

9487

CABLE ASM.

$

$

Not available

9488

9488

CABLE ASM.

$

$

Not available

9489

9489

CHAIN DECK HANGER

$

$

Not available

9490

9490

PULLEY CABLE

$

$

Not available

9494

9494

WEIGHT MOUNT STRAP

$

$

Not available

9497

9497

WEIGHT WLDT.

$

$

Not available

9686

9686

YOKE PIN

$

$

Not available

9711

9711

TIE BAR WLDT

$

$

Not available

9715

9715

PULLEY COVER

$

$

Not available

9716

9716

COVER TAB

$

$

Not available

9723

9723

CLEVIS

$

$

Not available

9726

9726

FRAME WLDT. 6601

$

$

Not available

9755

9755

STABILIZER BAR

$

$

Not available

9756

9756

ROD END

$

$

Not available

9763

9763

LH FOOT PAD

$

$

Not available

9765

9765

DECAL STEP

$

$

Not available

9766

Dixon 9766

CLEVIS PIN

$

$

Not available

9769

9769

KNOBBY WHELL & TIRE

$

$

Not available

9776

Dixon 9776

WIRE LOCK PIN

$

$

Not available

9779

9779

TUBE .75 OD .51 IDX.125

$

$

Not available

9788

9788

R/B 8487 REAR WHEEL - 6601

$

$

Not available

9800

9800

SQ. KEY 1/4` X 1.38`

$

$

Not available

9806

9806

YOKE BUSHING

$

$

Not available
